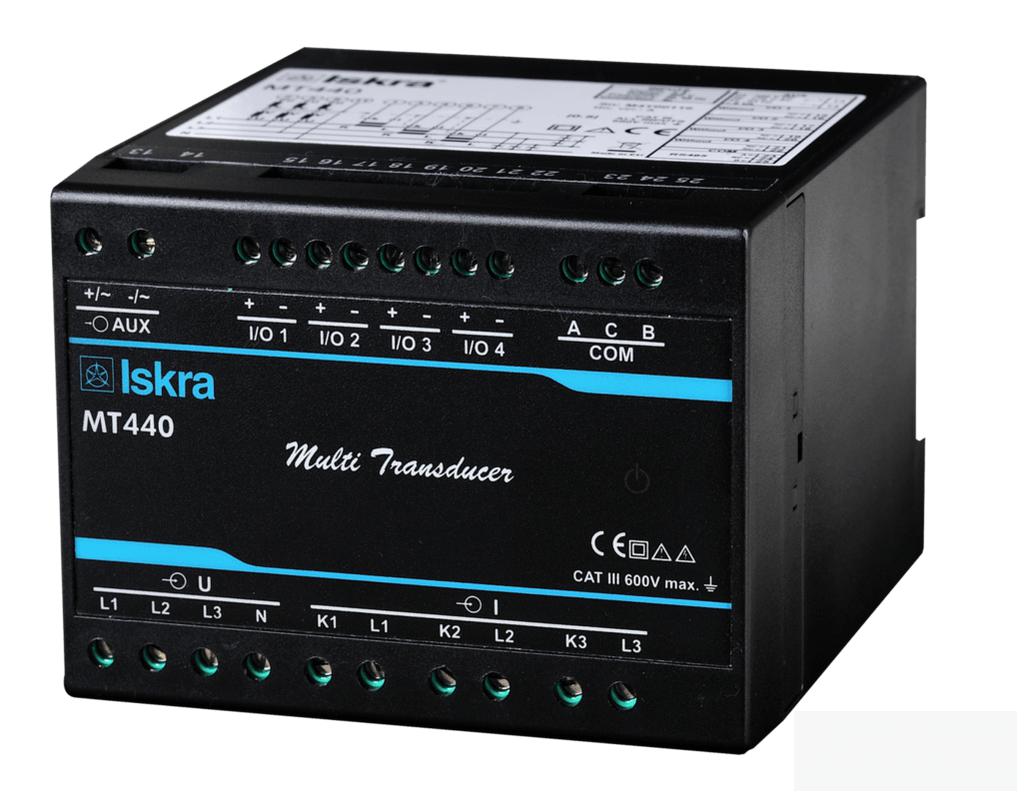

MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms
Rated 3.5/5 based on 11 customer reviews
MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms

MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms

Free Shipping for $300 Spend

Available: Backorder More available in 4-6 weeks
$694.00
$763.40inclGST

Free Shipping for $300 Spend

Compare
  • MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms
    MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms $694.00 $763.40inclGST Backorder
  • $0.00inclGST In stock
  • MIPACK Iskra Meter Programmer
    $506.00 $556.60inclGST 1pc in stock , more available more available in 4-6 weeks
This product: MT440-SSUDAAAMA, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms
$694.00 69400 763.4inclGST
0.0inclGST
MIPACK Iskra Meter Programmer
$506.00 50600 556.6inclGST
$1,200.00 1.1inclGST

Iskra Doo MT440-S S U D A A A M A, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms

  • Class 0.5 (EN 60688)
  • USB Comms as standard
  • Up to 4 I/O Modules (analogue output, Multiple break point, non-linear characterstics
  • Automatic range of nominal current up to 12.5 A (Includes 5A/1A CT Input) and nominal voltage up to 600 V L-N
  • Adjustable tariff clock, display of electric energy consumption in optional currency
  • RMS values of currents and voltages
  • Measurements of active, reactive, apparent power and power factor
  • Measurements of energy in all 4 quadrants Average values of measurands per interval
  • Certified ship version available

The Power Transducer is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

Features :

  • Measurement of instantaneous values of more than 50 quantities (U, I, P, Q, S, PF, PA, f, f, MD, etc.).
  • Accuracy class 0.5

  • 32 Adjustable Alarms
  • Input frequency 50/60 Hz or 400 Hz
  • RS 232/RS485 communication up to 115,200 bit/s (Optional) or USB communication as standard
  • MODBUS RTU communication protocol
  • Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
  • Universal Supply 24-300VDC or 40-276VAC
  • Automatic range of nominal current up to 12.5 A and nominal voltage up to 600 V
  • User-friendly PC MiQen software

    Iskra Doo MT440-S S U D A A A M A, Multifunction Power Transducer, Class 0.5, 4 Wire, 500V 5A AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 3 Programmable Analogue Outputs, 1 relay output, RS485 + USB Comms

    • Class 0.5 (EN 60688)
    • USB Comms as standard
    • Up to 4 I/O Modules (analogue output, Multiple break point, non-linear characterstics
    • Automatic range of nominal current up to 12.5 A (Includes 5A/1A CT Input) and nominal voltage up to 600 V L-N
    • Adjustable tariff clock, display of electric energy consumption in optional currency
    • RMS values of currents and voltages
    • Measurements of active, reactive, apparent power and power factor
    • Measurements of energy in all 4 quadrants Average values of measurands per interval
    • Certified ship version available

    The Power Transducer is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

    Features :

    • Measurement of instantaneous values of more than 50 quantities (U, I, P, Q, S, PF, PA, f, f, MD, etc.).
    • Accuracy class 0.5

    • 32 Adjustable Alarms
    • Input frequency 50/60 Hz or 400 Hz
    • RS 232/RS485 communication up to 115,200 bit/s (Optional) or USB communication as standard
    • MODBUS RTU communication protocol
    • Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
    • Universal Supply 24-300VDC or 40-276VAC
    • Automatic range of nominal current up to 12.5 A and nominal voltage up to 600 V
    • User-friendly PC MiQen software
      Iskra Doo Part Number MT440-SSUSAAAMA
      Functions 3 Phase Power Transducer
      Supply Voltage 24-300VDC or 40-276VAC
      Nominal Measurement Range 500V L-N, 5 Amp
      Maximum Measurement Range 600V L-N, 12.5 Amp
      Alarm 1 x Relay Output
      Tariff Input N/A
      Output 3 x Analogue
      Accuracy Class 0.5 (I,U,F,PF,θ,THD)  Class 1(Active), Class 2 (Reactive)
      Battery Backup N/A
      Real Time Clock 1min/month (30ppm)
      Isolation 3.5kV
      Comms USB (standard) RS485 2400-115200 b/s (RS232 Optional)
      Weight 370g
      Enclosure Material UL94,
      Factory Pack Qty 1
      EU Directives

      EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30

      Safety

      Protection Class II

      600V rms, installation category II

      300V rms, installation category III

      Pollution Degree 2 in compliance with SIST EN 61010-1:2002

      Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
      Enclosure Protection IP20



      Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes
      Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes
      Operating Temperature -20 →+70 °C
