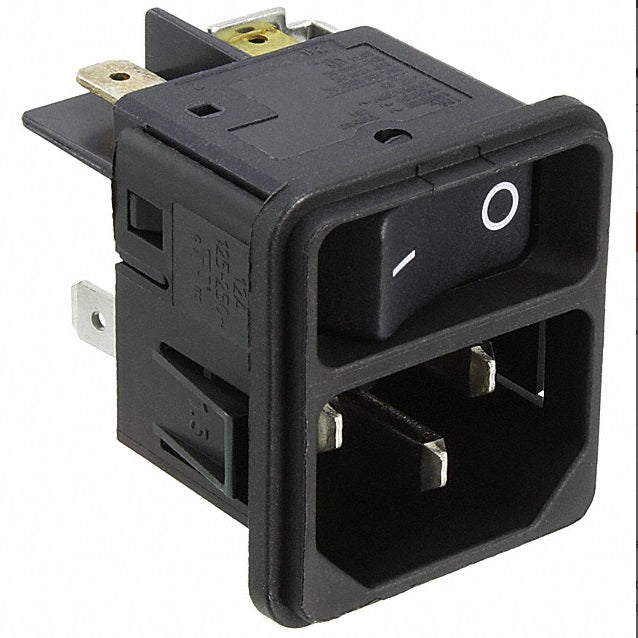

Schurter DC11.0001.001, IEC Inlet with Filter, IEC-320 C-14/M Snap In Type, 10Amp Standard Version, Non illuminated, Faston Connection Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C14/M Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number DC11.0001.001 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Maximum Cable Diameter 10mm Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C14/M to Quick Connects Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter DC11.0001.401, IEC Inlet/Power Entry Connector Receptacle, Male Blades - Module IEC 320 Panel Mount, Snap-In Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C14/M Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number DC11.0001.401 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Maximum Cable Diameter 10mm Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C14/M to Quick Connects Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

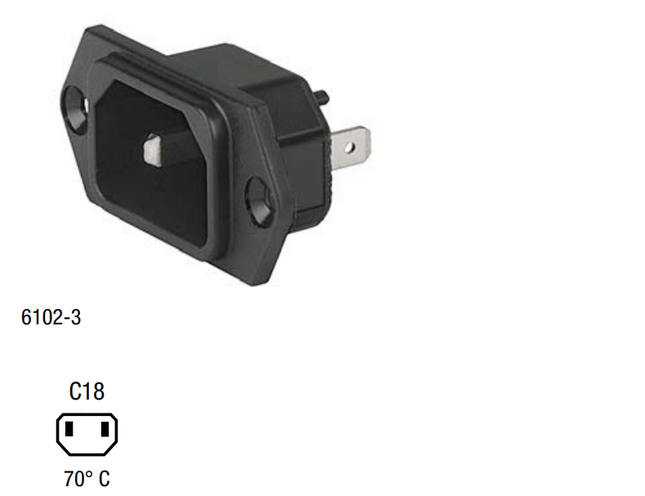

Schurter 6102.3200, IEC Appliance Inlet C18, Screw Panel Mounting, Front Side, Quick connect terminals 4.8 x 0.8 mm Features Panel Mount : Screw Mounting from Front Side Appliance Inlet C18/M Socket acc to IEC 60320-1 4.8 x 0.8mm Fastron Pins 120 °C pin Temperature Quick connect terminals 4.8 x 0.8 mm Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6102.3200 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness N/A Screw Mounted Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount with Screws Material Thermoplastic, black, UL 94V-0 Termination Style C18/M to Faston 4.8 x 0.8 mm Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 6100-3200, IEC Appliance Inlet C14, Screw Panel Mounting, Front Side, Quick connect terminals 4.8 x 0.8 mm, 2mm panel Thickness Features Panel Mount : Srew Mounting from Front Side Appliance Inlet C14/M Socket acc to IEC 60320-1 4.8 x 0.8mm Fastron Pins 120 °C pin Temperature 2mm Panel Thickness Quick connect terminals 4.8 x 0.8 mm Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6100-3200 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness N/A Screw Mounted Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount with Screws Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 6100.3300, C14/M Inlet IEC Screw Mount  1/4" QC Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C14/M Socket acc to IEC 60320-1 4.8 x 0.8mm Fastron Pins 120 °C pin Temperature 2mm Panel Thickness Quick connect terminals 6.3 x 0.8 mm Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6100.3300 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness 2.0mm Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

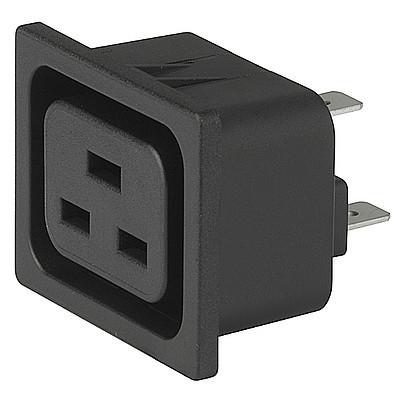

Schurter 4797.0020, IEC Appliance Outlet C20, Right Angled, Black, 16 Amp Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C20 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4797.0020 Rated Voltage 250V Rated Current 16A (CE) 20A (UL/CSA) Maximum Cable Diameter 10mm Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C20/Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

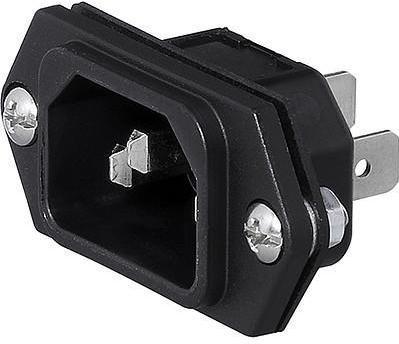

Schurter 6100.3200, C14/M Inlet IEC Screw Mount Solder Terminal Features Panel Mount : Srew Mounting from Front Side Appliance Inlet C14/M Socket acc to IEC 60320-1 Solder Pins 120 °C pin Temperature Quick connect terminals 4.8 x 0.8 mm Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6100-3200 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness N/A Screw Mounted Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount with Screws Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Solder Terminals Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less
