Schurter IEC Cordsets
-

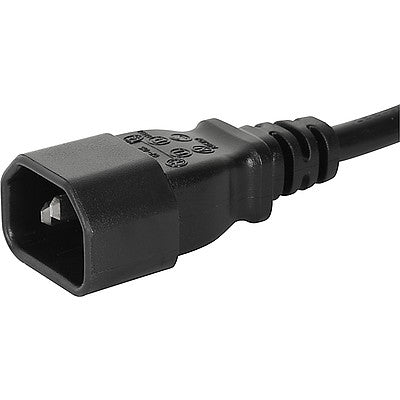

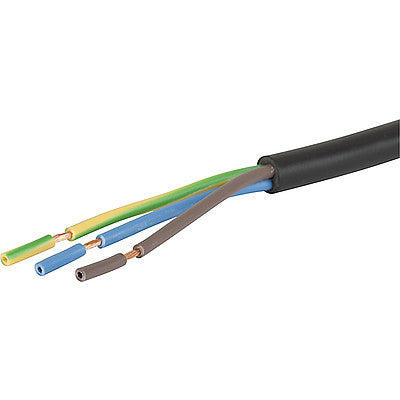

6007.0204, C14/M Retaining, 1.5 m, V-75, black 10A 10mm to Stripped Wire
6007.0204, C14/M Retaining, 1.5 m, V-75, black 10A 10mm to Stripped Wire Features 1.5M Length Appliance Inlet C14 (Plug E) acc to IEC 60320-1 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 6007.0204 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Stripped Wire Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$15.50
$18.29 inclGST -
6051.2067, C13/C14 Cordset Interconnecting, V-Lock cord retaining, 1.5 m, V-75, black 10A 10mm
6051.2067, C13/C14 Cordset Interconnecting, V-Lock cord retaining, 1.5 m, V-75, black 10A 10mm Features 1.5M Length Appliance Inlet C13/C14 acc to IEC 60320-1 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 6051.2067 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 / C14 Weight 150g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$22.15
$26.14 inclGST -
6051.2070, AU Plug to C13 Female V-Lock cord retaining, 1.5 m, V-75, black 10A 10mm C13 Black/Yellow(V-Lock)
6051.2070, AU Plug to C13 Female V-Lock cord retaining, 1.5 m, V-75, black 10A 10mm C13 Black/Yellow(V-Lock) Features 1.5M Length Appliance Inlet C13/F Plug acc to IEC 60320-1 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 6051.2070 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Male to AS 3112 Plug Weight 225g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$19.50
$23.01 inclGST
