Summation Current Transformers

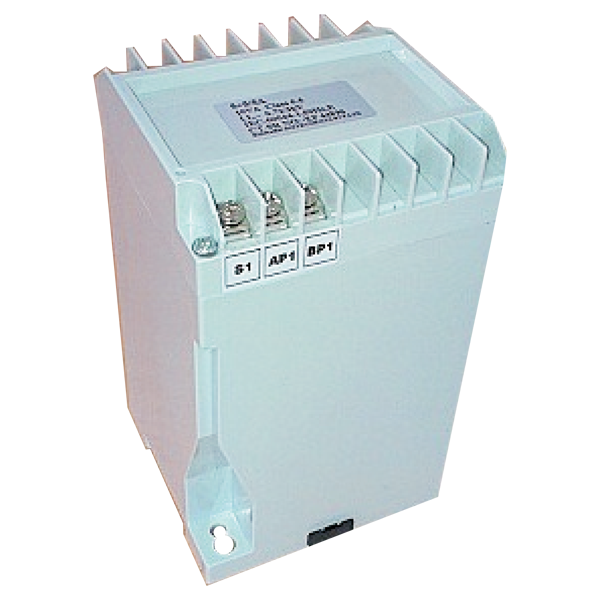

Rishabh Rish SIGMA 75 CTR5+5/5.CL0.5.10VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5/5.CL0.5.10VA Technology AC Current Transformer Ratio 5+5/5 VA Rating 10VA Class 0.5 Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 75 CTR5+5/5.CL1.15VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5/5.CL1.10VA Technology AC Current Transformer Ratio 5+5/5 VA Rating 10VA Class 1 Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 150 CTR5+5+5+5+5+5+5+5+5/5.CL1.5VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 150 CTR5+5+5+5+5+5+5+5+5/5.CL1.5VA Technology AC Current Transformer Ratio 5+5+5+5+5+5+5+5+5/5 VA Rating 5VA Class 1 Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 75 CTR5+5+5+5/5.CL1.15VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5+5+5/5.CL1.15VA Technology AC Current Transformer Ratio 5+5+5+5/5 VA Rating 15VA Class 1 Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 75 CTR5+5+5+5+5/5.CL1.15VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5+5+5+5/5.CL1.15VA Technology AC Current Transformer Ratio 5+5+5+5+5/5 VA Rating 15VA Class 1 Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 75 CTR5+5+5/5.CL0.5.10VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5+5/5.CL0.5.10VA Technology AC Current Transformer Ratio 5+5+5/5 VA Rating 10VA Class 0.5 Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish SIGMA 75 CTR5+5+5/5.CL1.15VA Summation Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR5+5+5/5.CL1.10VA Technology AC Current Transformer Ratio 5+5+5/5 VA Rating 15VA Class 1 Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 8 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Rishabh Rish Rish SIGMA 75 CTR1+1/1.CL0.5.5VA Summation Current Transformer for 1 Amp CTs Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR1+1/1.CL0.5.5VA Technology AC Current Transformer Ratio 1+1/1 VA Rating 5VA Class 0.5 Accuracy Class Class 0.5 Output 1 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1.6 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less
