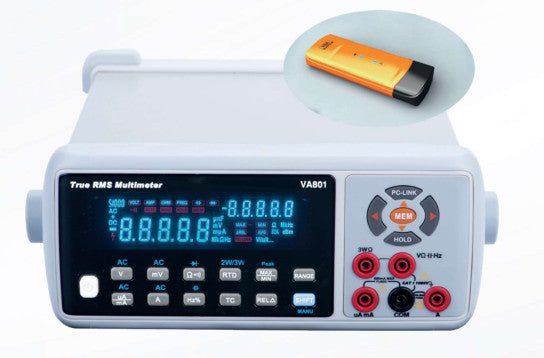

VA Instruments VA801C, Laboratory Benchtop Multimeter, Voltage 0-1000V (+/-0.02%DC, +/-0.8% AC), 10 Amp (+/-0.2% DC, 0.75% AC), 10 MOhm (+/-0.3%), 60.0 mF (+/-5.0%), 10.00MHz (+/-0.1% ), -200 to 600 Deg C (+/-2.0% K), Internal Memory
For Testing of:
Economic Benchtop Digital Multimeter
DC Voltage 600.0mV/6.000V/60.00V/600.0V/1000V +/-(0.02%)
AC Voltage 600.0mV/6.000V/60.00V/600.0V/1000V +/-(0.8%)
DC Current 60.00uA/600.00uA/60.00mA/600.0mA/10.00A+/-(0.2%)
AC Current 60.00uA/600.00uA/60.00mA/600.0mA/10.00A+/-(0.75%)
Resistance 600.0/6.000K/60.00K/600.0K/6.000M/60.00MOhm+/-(0.3%)
Capacitance 6.000nF/60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.0mF +/-(5.0%)
Frequency 10.00Mhz-6.000MHz+/-(0.01%)
Thermocouple Temperature -200.0~1200.0 Deg C +/-2.0% K/J/T/E/R/S/B/N
RTD Temperature -200.0~600.0 Deg C PT100/PT500/PT1000/Cu50/Ni120
Internal Memory 16000 Point interval/USB disk or SD Card
Display Counts 60,000
350x240x100mm
2.5kg
VFD Display

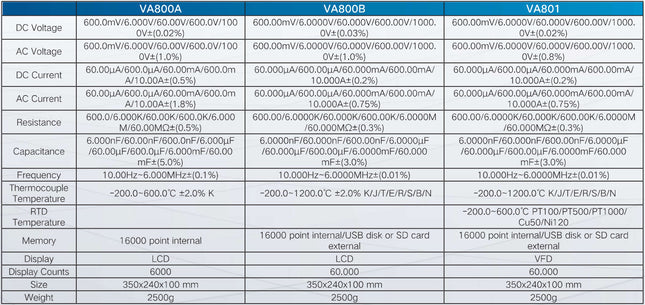

Specification
