Heat Sink for Power Electronics
-
H4 Heatsink, Full Lengths or cut to order Milled or Raw Finish
H4 Heatsink Profile 33mm x 98mm, Various Lengths cut to order, Milled or Raw Finish Datasheet Product Datasheet Heatsink Data New Heatsink Data Book Old Heatsink databook with additional thermal data
$25.00 - $323.00
-
P6Y150/300FR, Heat Sink 117mm x 150mm Wide x 300mm Long Milled
P6Y150/300FR, Heat Sink 117mm x 150mm Wide x 300mm Long Milled Also know as Semikron P6S150/300 Datasheet Product Datasheet
$259.00
$305.62 inclGST -
H1 Heatsink, Full Lengths or cut to order Raw Finish only
H1 Heatsink Profile 120mm x 120mm, Various Lengths cut to order, Raw Finish Only Datasheet Product Datasheet Heatsink Data New Heatsink Data Book Old Heatsink databook with additional thermal data
$37.00 - $833.00
-
HX38 Heatsink, 41.5 x 225mm, Full Lengths or cut to order Milled or Raw Finish
HX38 Heatsink Profile 41.5mm x 225mm, Various Lengths cut to order, Milled or Raw Finish Heatsink Data Product Datasheet New Heatsink Data Book Old Heatsink databook with additional thermal data
$51.00 - $1,261.00
-
H10 Heatsink, Full Lengths or cut to order, Milled or Raw Finish
H10 Heatsink Profile 110mm x 240mm, Various Lengths cut to order, Milled or Raw Finish Datasheet Product Datasheet Heatsink Data New Heatsink Data Book Old Heatsink databook with additional thermal data
$155.00 - $1,030.00
-
P6Y168/310FR, Heat Sink 117mm x 168mm Wide x 310mm Long Milled
P6Y168/310FR, Heat Sink 117mm x 168mm Wide x 310mm Long Milled Also know as Semikron P6S168/310 Datasheet Product Datasheet
$299.00
$352.82 inclGST -

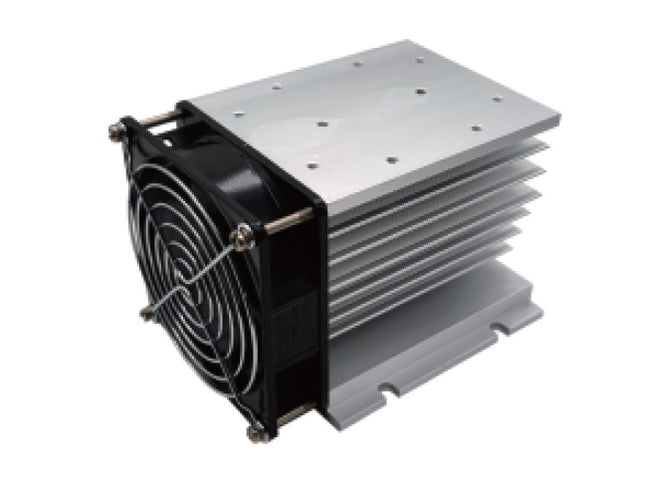

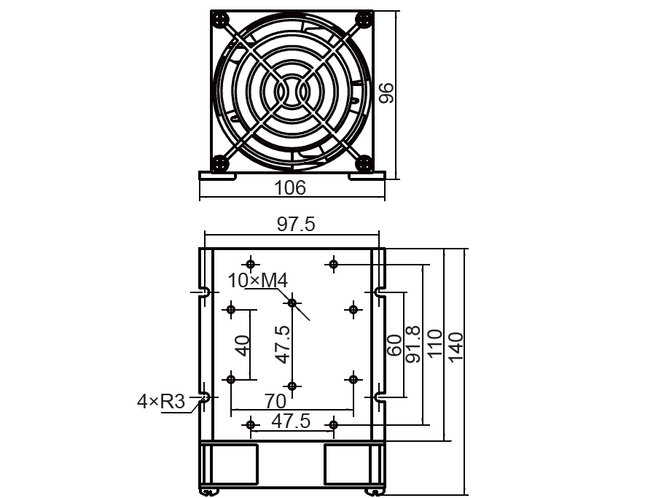

FHS-D110-F, SSR Heatsink, for single or 3 Phase SSR, 0.35 DegC/Watt, 150mm x 106 x 96mm, Fan Cooled
Free Aus Post Shipping for $300 SpendFastron FHS-D110-F, SSR Heatsink, for single or 3 Phase SSR, 0.35 DegC/Watt, 150mm x 106 x 96mm, Fan Cooled DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-D110-F Mounting Type Din Rail / Panel Mount Suitable SSR Rating 50/75/90/125 Amp Dimensions (without SSR) L:150mm x W:106mm x 96mm Thermal Impedance 0.35°C/W Unit Weight 1018g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$125.00
$147.50 inclGST -
FHS-D110, SSR Heatsink, for single or 3 Phase SSR, 0.8 DegC/Watt, 110mm x 106 x 96mm, Panel Mount
Free Aus Post Shipping for $300 SpendFastron FHS-D110, SSR Heatsink, for single or 3 Phase SSR, 0.8 DegC/Watt, 110mm x 106 x 96mm, Panel Mount DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-D110 Mounting Type Din Rail / Panel Mount Suitable SSR Rating 50/75/90/125 Amp Dimensions (without SSR) L:110mm x W:106mm x 96mm Thermal Impedance 0.8°C/W Unit Weight 736g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$75.00
$88.50 inclGST -

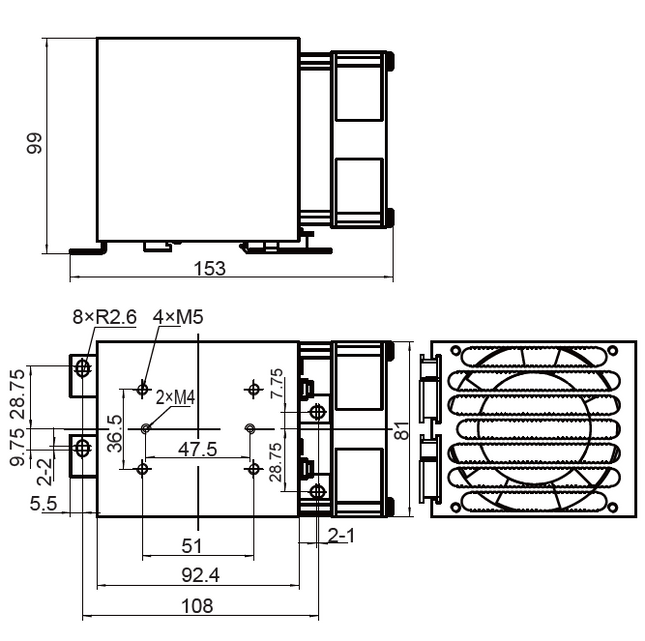

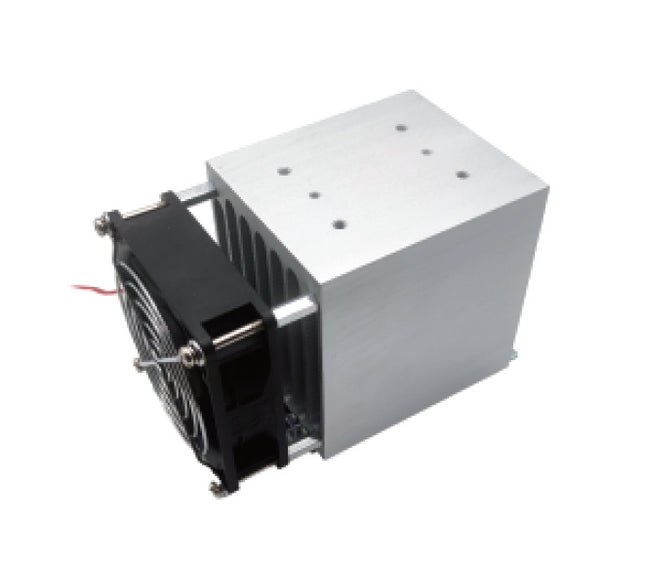

FHS-J93-B24DC-A, SSR Heatsink 153mm long with DIN Rail Clip 0.35 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:153 x W:81 x D:99mm, Din Rail Mount or Panel Mount, 24VDC Fan Cooled
Free Aus Post Shipping for $300 SpendFastron FHS-J93-B24DC-A, SSR Heatsink 153mm long with DIN Rail Clip 0.35 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:153 x W:81 x D:99mm, Din Rail Mount or Panel Mount, 24VDC Fan Cooled DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-J93-B24DC-A Mounting Type Din Rail / Panel mount Suitable SSR Rating /12575/90 Amp Dimensions (without SSR) L:123mm x W:81mm x 99mm Thermal Impedance 0.35°C/W Unit Weight 921g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$95.00
$112.10 inclGST -

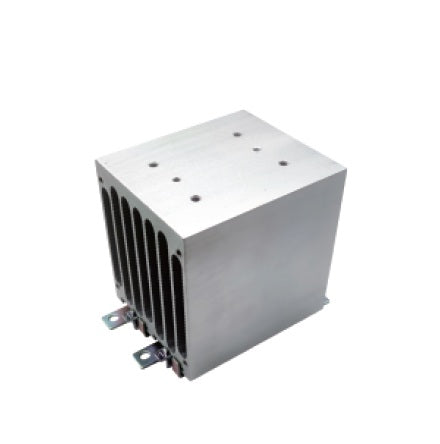

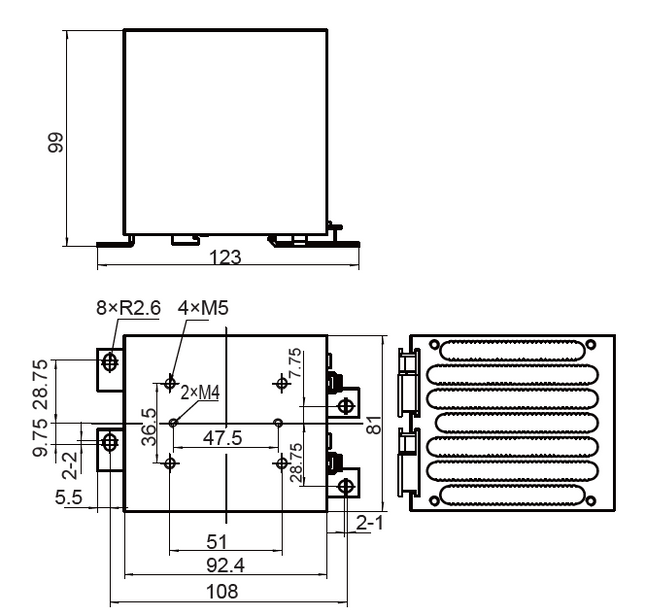

FHS-J93-D-A, SSR Heatsink 92.4mm long with DIN Rail Clip 0.8 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:123 x W:81 x D:99mm, Din Rail Mount or Panel Mount
Free Aus Post Shipping for $300 SpendFastron FHS-J93-D-A, SSR Heatsink 92.4mm long with DIN Rail Clip 0.8 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:123 x W:81 x D:99mm, Din Rail Mount or Panel Mount DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-J93-D-A Mounting Type Din Rail / Panel mount Suitable SSR Rating 40/50/75/90 Amp Dimensions (without SSR) L:123mm x W:81mm x 99mm Thermal Impedance 0.8°C/W Unit Weight 790g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$95.00
$112.10 inclGST -

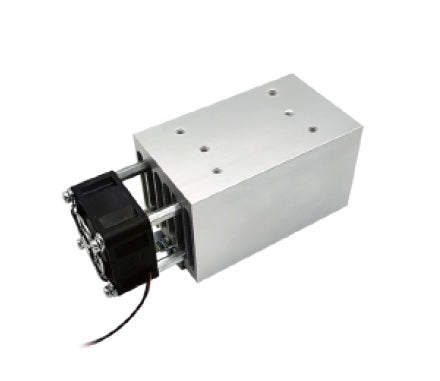

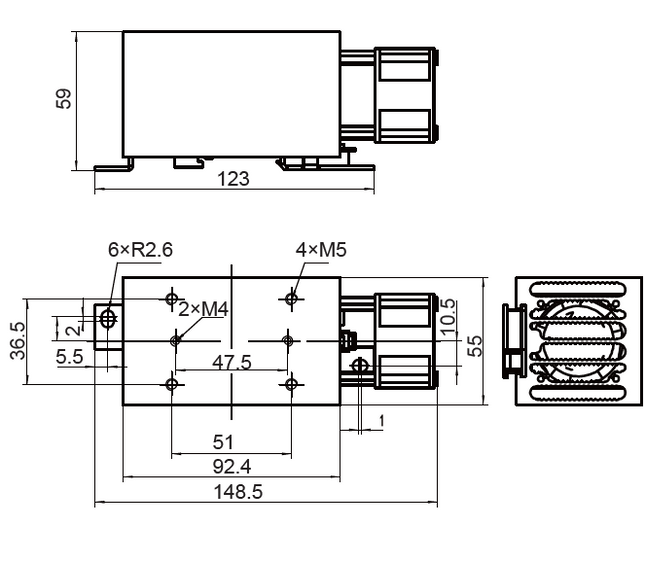

FHS-I93-B24DC-A, SSR Heatsink 148.5mm long with DIN Rail Clip 0.6 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:148 x W:55 x D:59mm, Din Rail Mount or Panel Mount, 24VDC Fan Cooled
Free Aus Post Shipping for $300 SpendFastron FHS-S93-B24DC-A, SSR Heatsink 148.5mm long with DIN Rail Clip 0.6 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:148 x W:55 x D:59mm, Din Rail Mount or Panel Mount, 24VDC Fan Cooled DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-I93-B24DC-A Mounting Type Din Rail / Panel mount Suitable SSR Rating 40/50/60/75 Amp Dimensions (without SSR) L:148mm x W:55mm x 59mm Thermal Impedance 1.3°C/W Unit Weight 350g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$95.00
$112.10 inclGST -

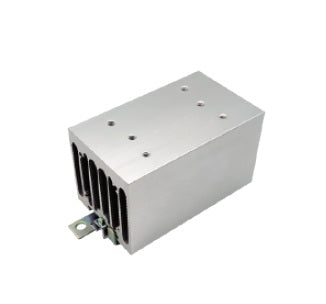

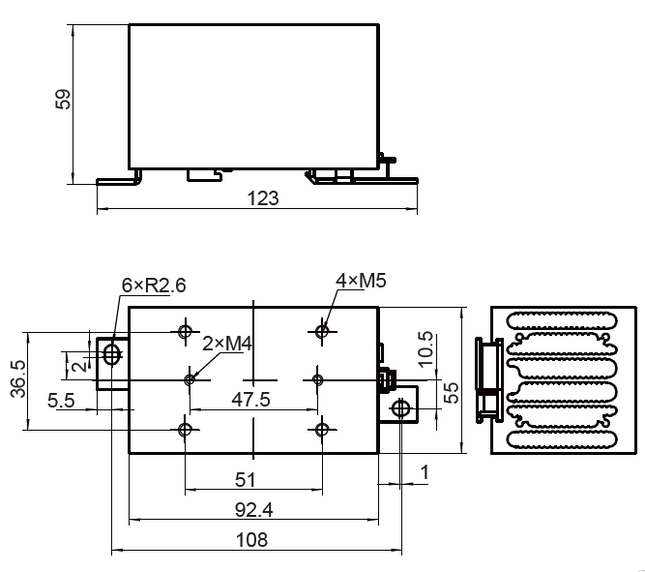

FHS-I93-D-A, SSR Heatsink 92.5mm long with DIN Rail Clip 1.6 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:108 x W:55 x D:59mm, Din Rail Mount or Panel Mount
Free Aus Post Shipping for $300 SpendFastron FHS-I93-D-A, SSR Heatsink 92.5mm long with DIN Rail Clip 1.6 Deg C per Watt, Drilled and tapped for Single phase SSR. Overall Dimensions H:108 x W:55 x D:59mm, Din Rail Mount or Panel Mount DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single phase SSR Raw Finish Specification Fastron Part Number FHS-I93-D-A Mounting Type Din Rail / Panel mount Suitable SSR Rating 25/40/50 Amp Dimensions (without SSR) L:108mm x W:55mm x 59mm Thermal Impedance 1.3°C/W Unit Weight 350g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications
Free Aus Post Shipping for $300 Spend$45.00
$53.10 inclGST
