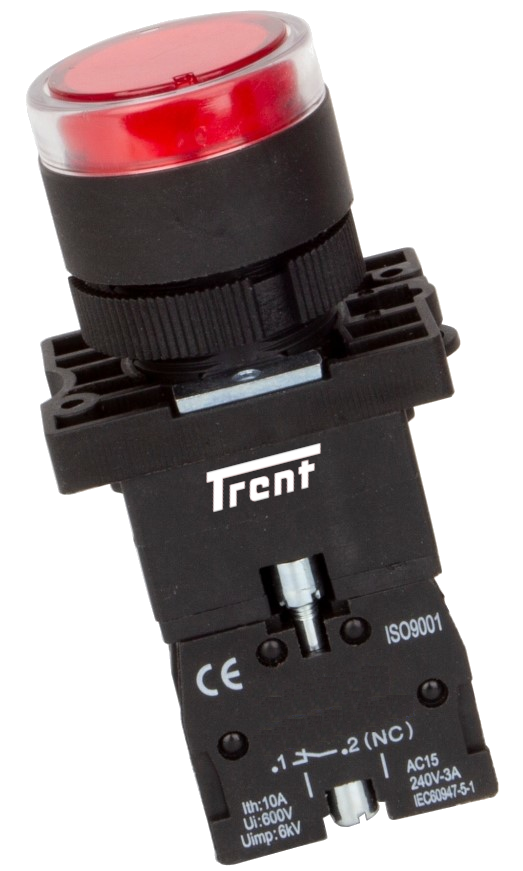

TRIB-22D-R-24-NC, 22mm LED Pushbutton & Indicator RED 24AC/DC, NORMALLY CLOSED, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-R-24-NC Functions Momentary (Normally Closed) Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-G-24, 22mm LED Pushbutton & Indicator GREEN 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-G-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

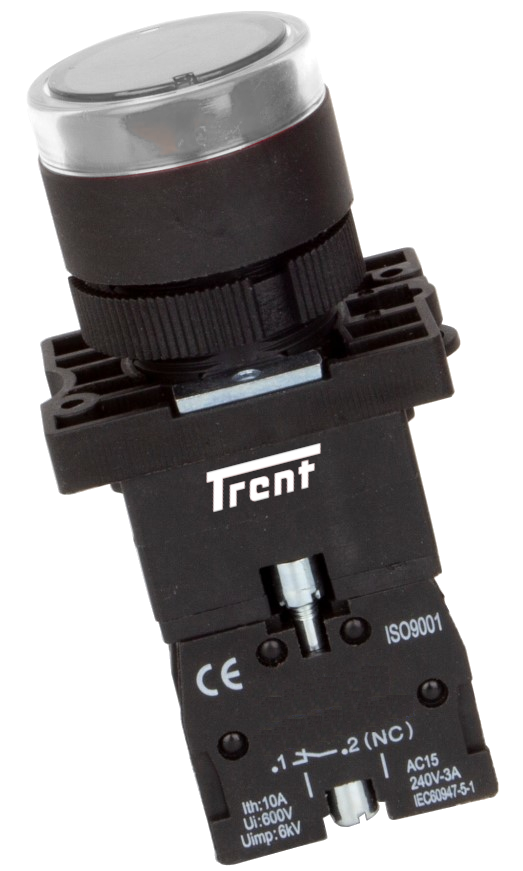

TRIB-22D-W-24, 22mm LED Pushbutton & Indicator White 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-W-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type White LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

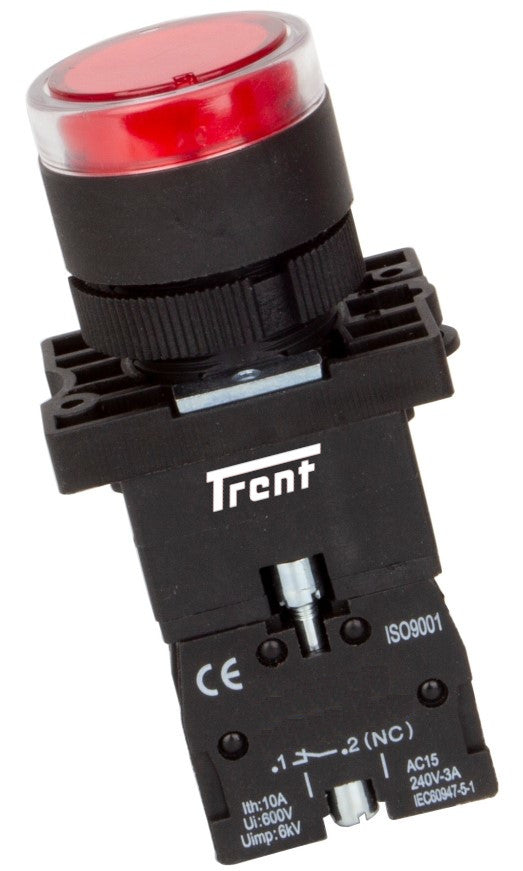

TRIB-22D-R-24, 22mm LED Pushbutton & Indicator RED 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-R-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-Y-24, 22mm LED Pushbutton & Indicator Amber 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-Y-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Amber LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 0.3 Amp @ 240VDC Nominal Current Range DC N/A Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-B-24, 22mm LED Pushbutton & Indicator BLUE 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-B-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-G-240, 22mm LED Pushbutton & Indicator GREEN 240VAC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-R-240 Functions Momentary Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-R-240, 22mm LED Pushbutton & Indicator RED 240VAC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-R-240 Functions Momentary Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

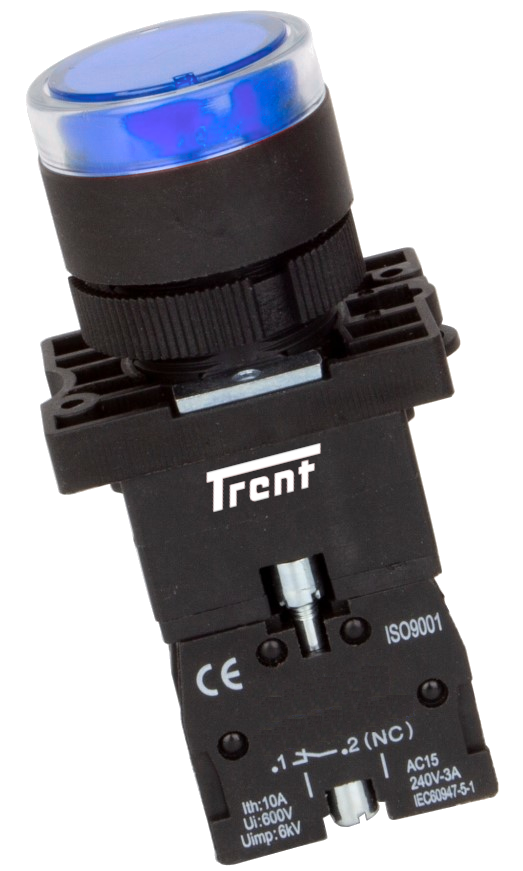

TRIB-22D-B-240, 22mm LED Pushbutton & Indicator BLUE 240VAC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-B-240 Functions Momentary Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-Y-240, 22mm LED Pushbutton & Indicator Amber 240VAC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-Y-240 Functions Momentary Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Amber LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less
