Pre Drilled SSR Heatsink

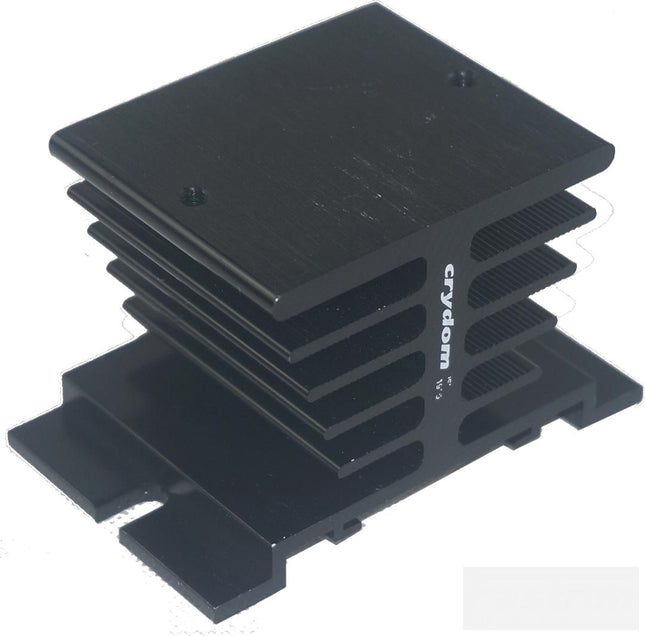

Crydom HS211, Slide on DIN Rail Heat Sink, L:80mm x W:50mm x D:50mm, 2.25°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or Dual SSR Black anodised for professional look Panel Mount Din Rail Mount Spec Crydom Part Number HS211 Mounting Type Din Rail Suitable SSR Rating 25 Amp Dimensions (without SSR) L:80mm x W:50mm x D:50mm Thermal Impedance 2.25°C/W Load Current @ 40 Deg C 24 Amp Load Current @ 50 Deg C 21Amp Unit Weight 220g Factory Pack Qty 10   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

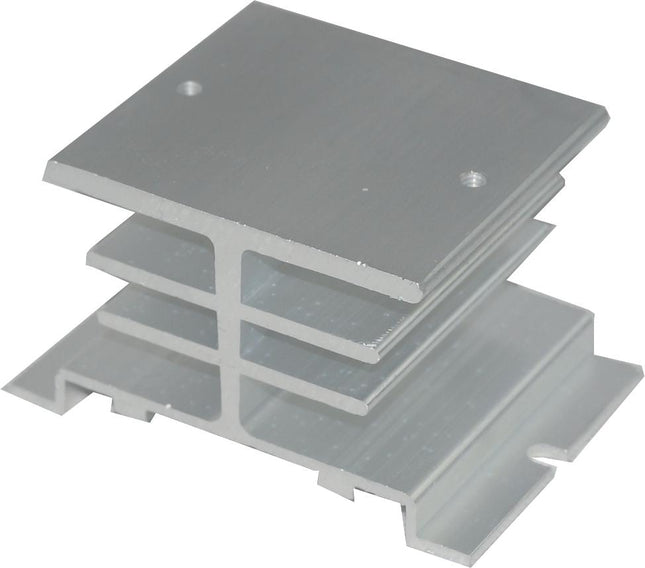

HS211B, HS211B, Panel Mount Heat Sink, 2.7 Deg C per Watt (Heatsink Only), Suitable for FASTRON OR TRENT standard 44x57mm SSR Only EXCLUDES T(RENT FDH5048ZD3-2H Features Panel Mount heat sink Suitable for SSR Mounting Pre drilled for single or Dual SSR Spec Fastron Part Number HS211B Mounting Type Panel Mount Only Suitable SSR Rating 25 Amp Dimensions (without SSR) L:80mm x W:50mm x D:50mm Thermal Impedance 2.7°C/W Load Current @ 40 Deg C 21 Amp Load Current @ 50 Deg C 17 Amp Unit Weight 120g Factory Pack Qty 10   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

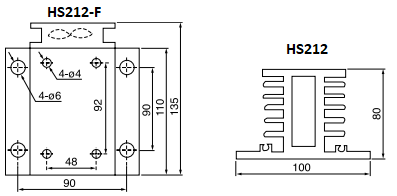

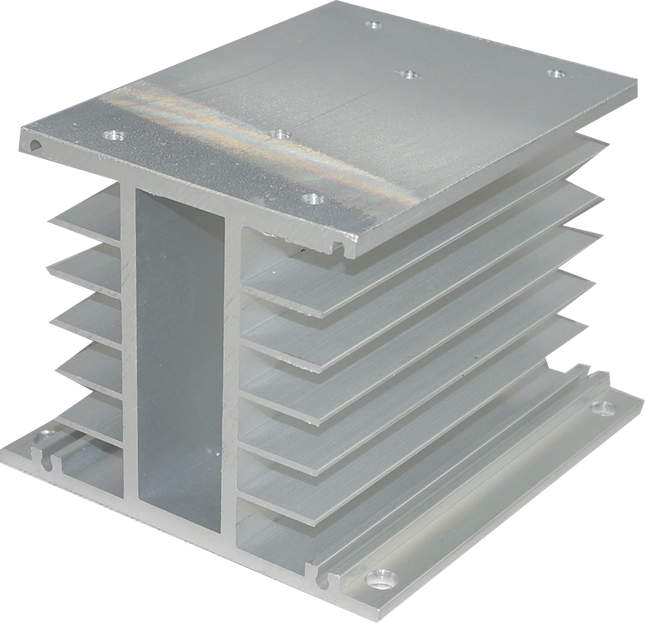

HS212, Heatsink 110mm, Milled, Drilled and Tapped for Single & 3 Phase SSR, 1°C/W Specifications 3 x 20 Amp @ 40 Deg C Panel Mount Datasheet Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.

Read more less

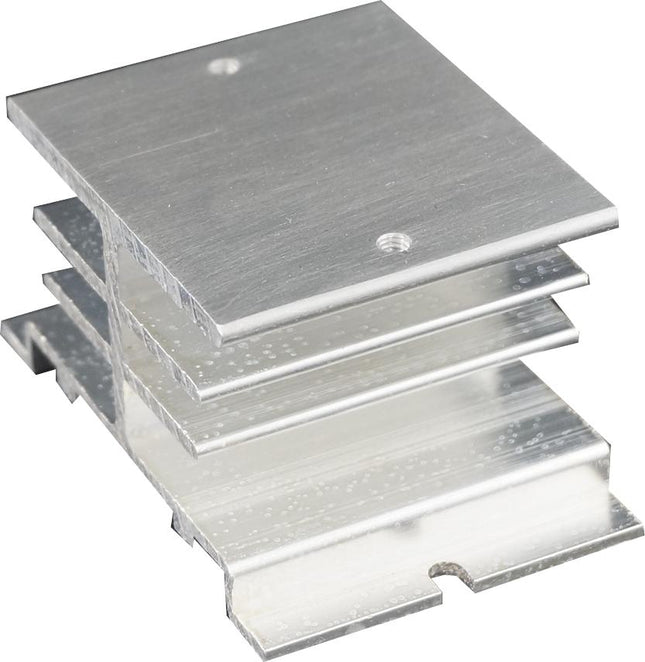

Trent HS211A, Panel Mount Heat Sink, 2.7 Deg C per Watt (Heatsink Only). Suitable for 44x 57mm SSR only.  Features Panel Mount heat sink Suitable for SSR Mounting Pre drilled for single or Dual SSR Panel Mount only Spec Fastron Part Number HS211A Mounting Type Panel Mount Only Suitable SSR Rating 25 Amp Dimensions (without SSR) L:80mm x W:50mm x D:50mm Thermal Impedance 2.7°C/W Load Current @ 40 Deg C 21 Amp Load Current @ 50 Deg C 17 Amp Unit Weight 120g Factory Pack Qty 10   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

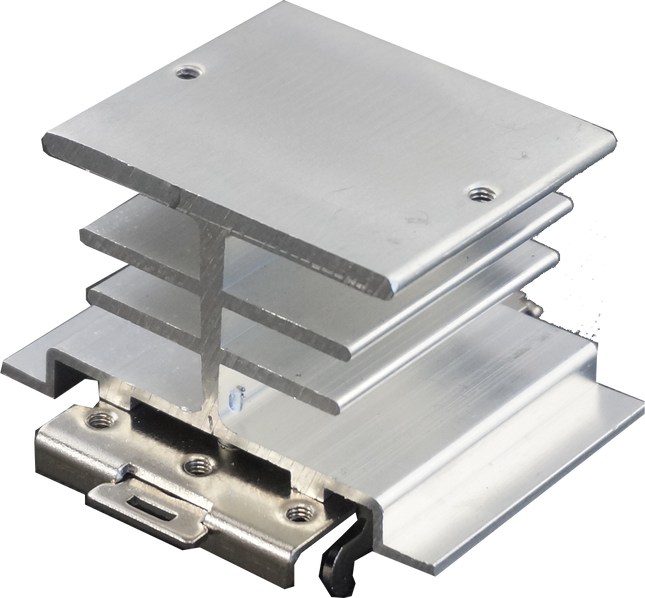

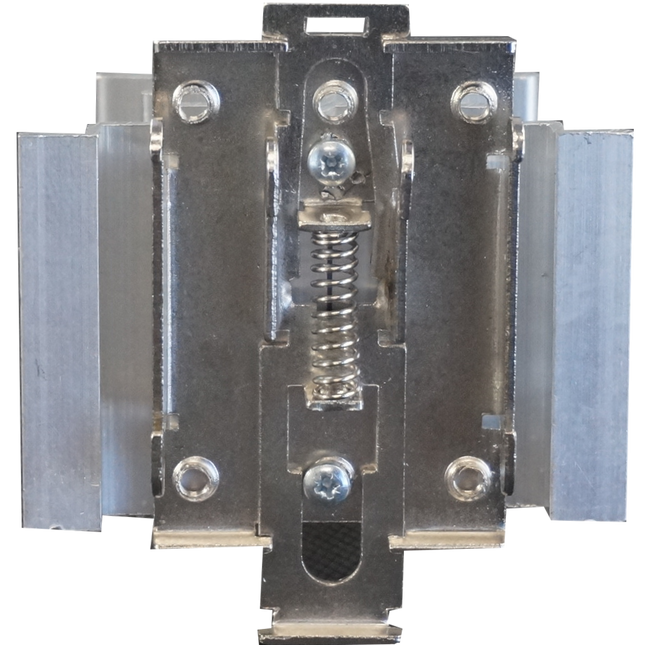

Trent HS211A-DR, DIN Rail Mount Heat Sink, 2.7 Deg C per Watt (Heatsink Only) Features DIN RailMount heat sink Suitable for SSR Mounting Pre drilled for Single or Dual SSR Din Rail Mount only Spec Fastron Part Number HS211A-DR Mounting Type Din Rail Suitable SSR Rating 25 Amp Dimensions (without SSR) L:80mm x W:50mm x D:50mm Thermal Impedance 2.7°C/W Load Current @ 40 Deg C 21 Amp Load Current @ 50 Deg C 17 Amp Unit Weight 120g Factory Pack Qty 10   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

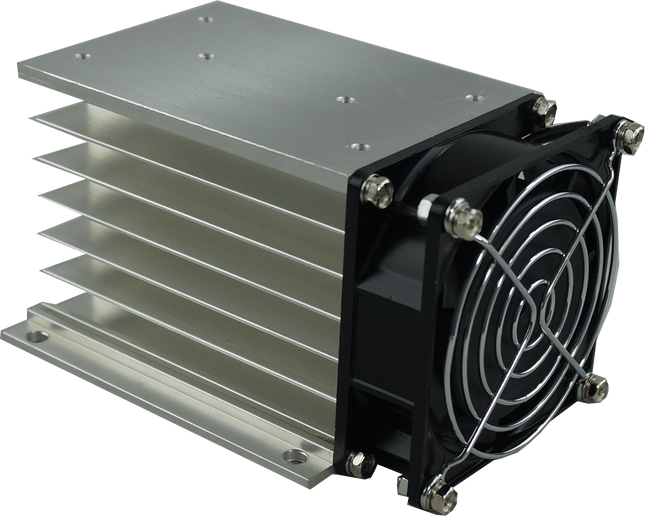

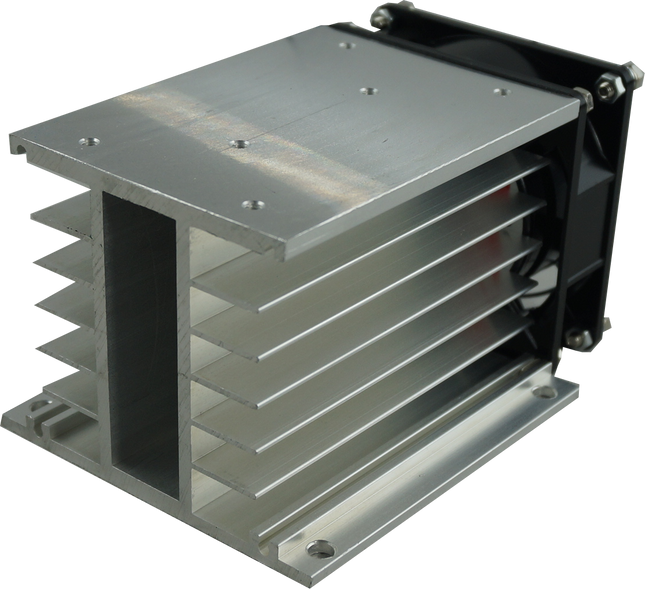

HS212F, Fan Cooled Heatsink 110mm, Milled, Drilled and Tapped for 3 Phase & Single Phase SSR, 0.35°C/W, 36 Amp per phase @ 40 Deg C for 3 Phase SSR Datasheet Product Datasheet

Read more less

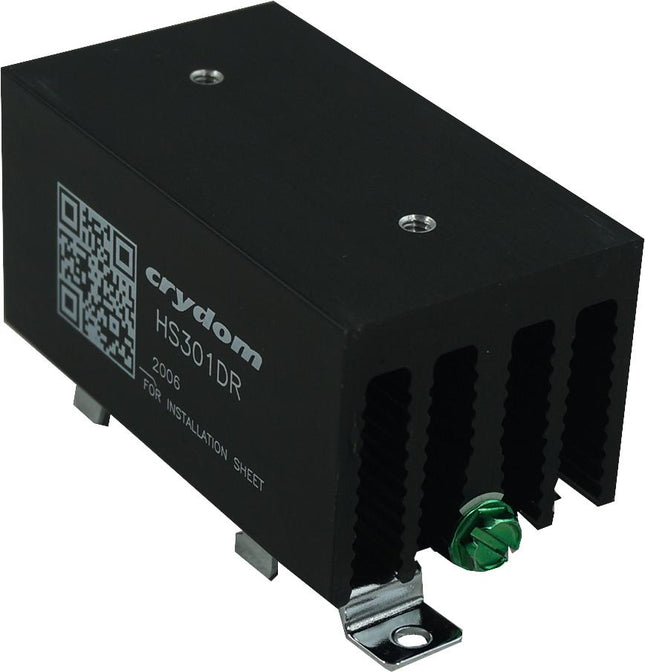

Crydom HS301DR, DIN Rail Mount Heat Sink for Solid State Relays, L:97mm x W:50mm x D:40mm, 3°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or Dual SSR Black anodised for professional look Spec Crydom Part Number HS301DR Mounting Type Din Rail Suitable SSR Rating 25 Amp Dimensions (without SSR) L:97mm x W:50mm x D:40mm Thermal Impedance 3°C/W Load Current @ 40 Deg C 24 Amp Load Current @ 50 Deg C 21 Amp Unit Weight 296g Factory Pack Qty 10   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

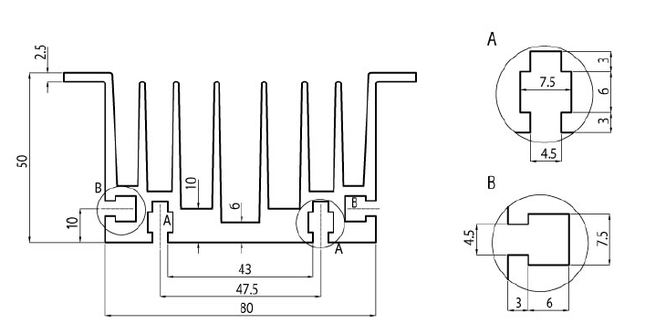

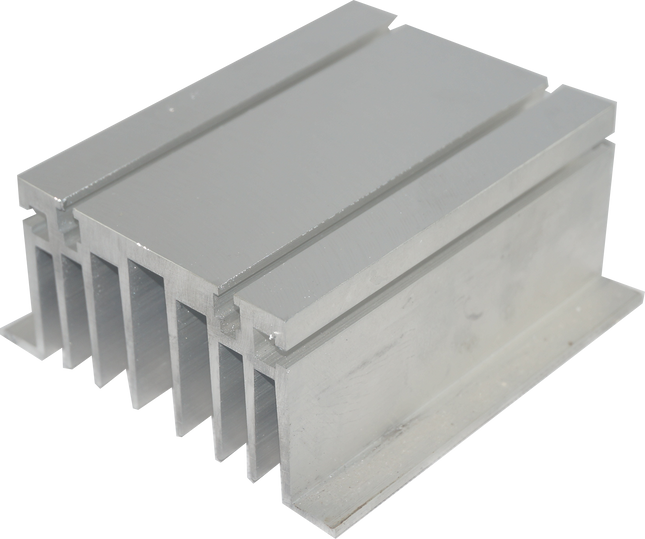

H71/110M, Heatsink for Single or Three Phase Solid State Relay, 3 x 13Amp or 1 x 35 Amp @ 50 Deg C MIlled for Semiconductor surface mounting T6 Hardness Rails for ease of mounting for Single or 3 phase SSR Specification Fastron Part Number H71/110M ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 13 Amp or 1 x 35 Amp (rms) @ 50 Deg C Mounting Style Panel Mount Termination Style Screw Therm Imedance (Rha) 1.76 Deg C/Watt @ 100mm Unit Weight 400g Factory Pack Qty 10   Datasheet H71 Datasheet FTH Series Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

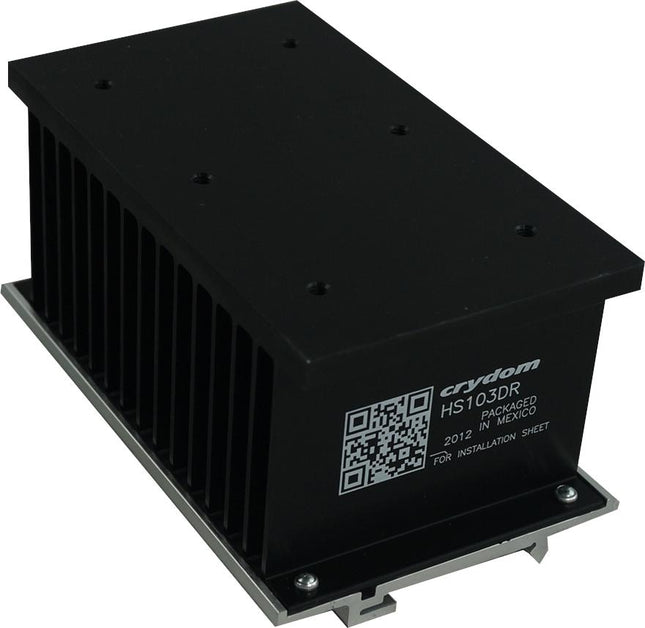

Crydom HS103DR, Din Rail Mount Heat sink, for 3 x single or 1 x 3 phase Solid State Relay, 55Amp @ 40 Deg, 1°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for 3 x single or 1 x 3 phase SSR Black anodised for professional look Spec Crydom Part Number HS103DR Mounting Type Din Rail Suitable SSR Rating 75/90 Amp Dimensions (without SSR) L:132.1mm x W:60.2mm x 121.7mm Thermal Impedance 1°C/W Load Current @ 40 Deg C 55 Amp Load Current @ 50 Deg C 46 Amp Unit Weight 631g Factory Pack Qty 10   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

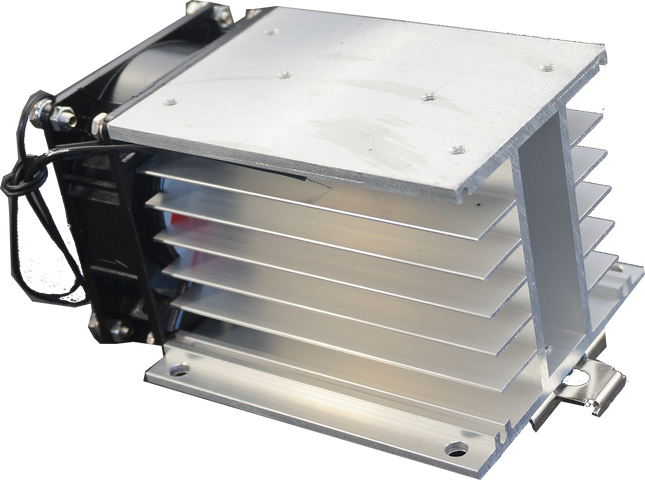

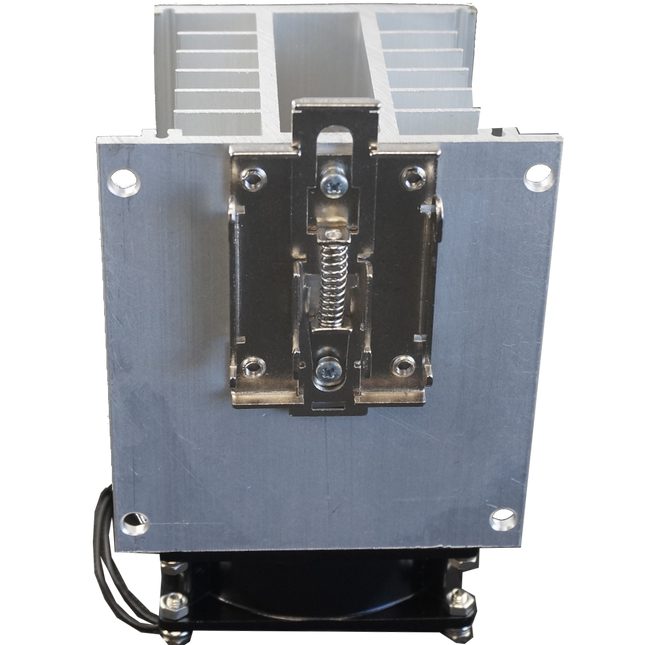

HS212DR-F, Heatsink 110mm, Milled, Drilled and Tapped for 3 Phase & Single Phase SSR, 0.35°C/W Datasheet HS212 Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.

Read more less

HS212DR, Heatsink 110mm, Milled, Drilled and Tapped for 3 Phase & Single Phase SSR, 1°C/W Specifications Suitable for 3 x 20 Amp rms output @ 40 Deg C Panel Mount Datasheet Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.

Read more less

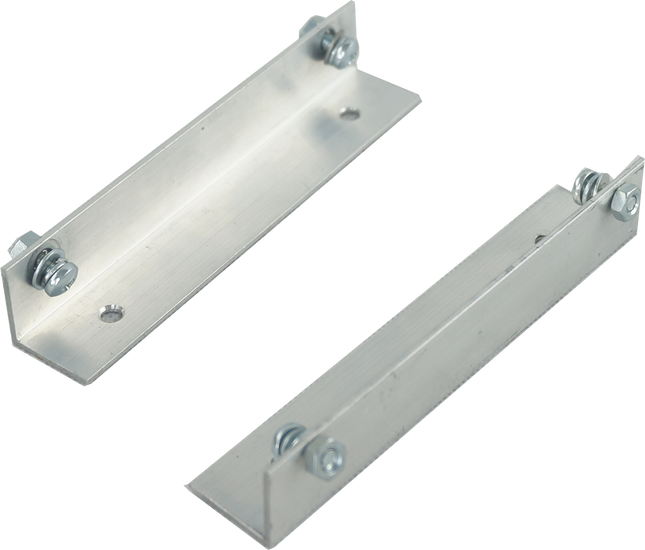

Brackets and Screws for H31/110M-B, H31 110mm long with Mounting Brackets for Single or 3 Phase SSR
