Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-600 Amp and +/-200Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-50 Amp and +/-500Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D09 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-50 Amp Load Current Channel 2 (RMS) +/-500 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-50 Amp and +/-500Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-50 Amp and +/-500Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D09 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-50 Amp Load Current Channel 2 (RMS) +/-500 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-50 Amp and +/-600Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-50 Amp and +/-600Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D09 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-50 Amp Load Current Channel 2 (RMS) +/-600 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-80 Amp and +/-500Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-80 Amp and +/-500Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D07 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-80 Amp Load Current Channel 2 (RMS) +/-500 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-50 Amp and +/-300Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-50 Amp and +/-300Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D06 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-50 Amp Load Current Channel 2 (RMS) +/-300 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-350 Amp and +/-100Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-50 Amp and +/-400Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D04 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-350 Amp Load Current Channel 2 (RMS) +/-100 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

HSNBV-D03,Automotive Open Loop Current Sensor for up to 48VDC Battery, +/-700 Amp and +/-200Amp Dual Outputs, Battery Drive, Vref = 2.5V output, Obsolete due to EOL in 2022 Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-700 Amp and +/-200Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HSNBV-D03 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-700 Amp Load Current Channel 2 (RMS) +/-200 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Automotive Open Loop Current Sensor for up to 48VDC Battery, 0-120 Amp and +/-200Amp Dual Outputs, Battery Drive, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, 0-120 Amp and +/-200Amp Dual Outputs Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HSNBV-D02 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) 120 Amp Load Current Channel 2 (RMS) +/-200 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

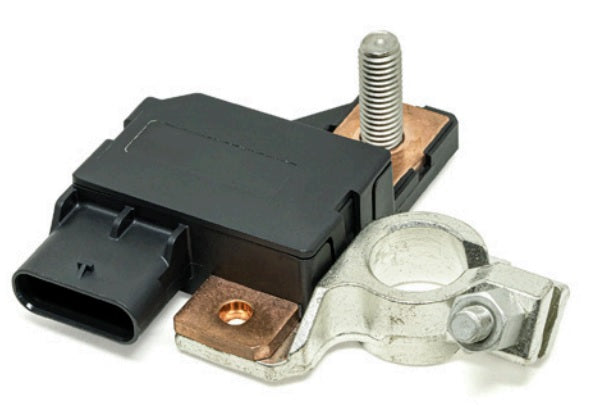

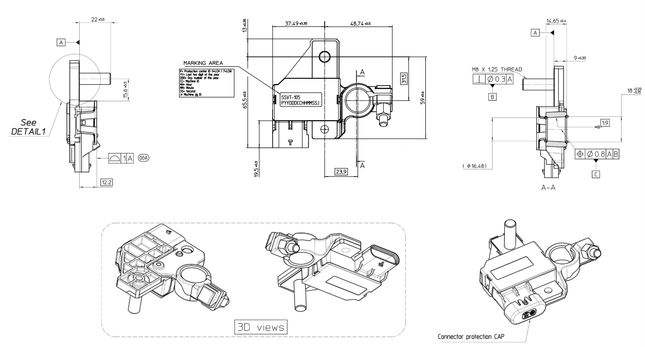

SSVT 105, Hall Effect Battery Sensor, for Current Voltage, and Temperature, Current measuring Range +/-1500 Amp DC, For 12V(18V), and 24V(36V) Measurement of Dual 12V battery systems. -40 to 105 Deg C Temperature Measuring Range. Compact and versatile 3 in 1 Battery sensor for monitoring of all battery types. The SSVT 105 is a state of the art, System on Chip (SoC) digital transducer designed to monitor on board vehicle stationary battery systems. Data is transmitted over a industry standard CAN communication bus. Features Battery terminal Mount Direct battery measurement Current to +/-150Amp Voltage to 18V, or 36V for dual 12V battery systems CAN Bus Output (Interface with OEM equipment) Isolated plastic case recognised according to UL94-V0 Advantages Excellent sensitivity, accuracy, and repeatability Excellent Linearity, Low offset error for leakage current measurement Synchronised measurement of I, U12, and U24 Voltages and currents Applications Used to monitor and measure battery Current, Voltage, and Terminal Temperature. Start Stop Technology Implementation on board the vehicle Energy management on board vehicle Battery supplied applications Application Domains Energy & Automation Industrial. Utilities Automotive LEM Part Number SSVT 105 Technology SoC 3 in 1 sensor CE Approved Yes Supply Voltage 6 .. 36VDC @ 30mA Voltage Measurement Range 0.9 .. 18VDC (Single battery) 1.8 - 36VDC (Dual battery) Temperature Measurement Range -40°C / 105°C Output CAN Bus CAN 2.0B (NXP TJA 1042) Isolation 2.16kV (AC, 50Hz, 1 min) Mounting Style Battery Terminal Mount CAN bit rate 250 kbps CAN termination resistor No CAN wake-up capability Yes Connector Type  TE Ref 1-1718806-1 keying/coding A Operating Temperature Range -40°C / 105°C Accuracy 0.5% Termination Style 6 Pin Connector (for BM CBL POW 0.4/0.6M) Unit Weight 70g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less
