Toggle Switches
-
TRB-BG25, Toggle KeySwitch 2 Pos Latched Black 1NO + 1NC, IEC60947-5-1
TRB-BG25, Toggle KeySwitch 2 Pos Latched Black 1NO + 1NC, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BG25 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 1 x NO, 1 x NC Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST -
TRB-BD21, 1 x NO, 2 Position Toggle Switch BLACK, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1
TRB-BD21, 1 x NO, 2 Position Toggle Switch BLACK, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD21-IP40 Functions 1 Pole, 2 Position Toggle Switch Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz, 24VDC Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC, 0.3 Amp @ 24VDC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$9.00
$10.62 inclGST -
TRB-BD73, 2 x NO, 3 Position Toggle Switch BLACK, Right ON, Centre = OFF, Left Biased, 3 Amp @ 240VAC, Plastic/Metal, IEC60947-5-1
TRB-BD73, 2 x NO, 3 Position Toggle Switch BLACK, Right ON, Centre = OFF, Left Biased, 3 Amp @ 240VAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD73-IP65 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 1 x NO (Right ON Postion 1), Centre = OFF, 1 x NO (Left Biased Postion 2) Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$7.00
$8.26 inclGST -
TRB-BD45, 2 x NO, 2 Position Toggle Switch BLACK, Biased, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1
TRB-BD45-IP40, 2 x NO, 2 Position Toggle Switch BLACK, Biased, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD45-IP40 Functions 2 Pole, 2 Position Toggle Switch Switch Type Biased 2 x NO Nominal Voltage 240VAC @ 50/60Hz, 24VDC Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC, 0.3 Amp @ 24VDC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST -
TRB-BD83, 2 x NO, 3 Position Toggle Switch BLACK, Left ON, Right Biased, 3 Amp @ 240VAC, Plastic/Metal, IEC60947-5-1
TRB-BD83-IP65, 2 x NO, 3 Position Toggle Switch BLACK, Left ON, Right Biased, 3 Amp @ 240VAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD83-IP65 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 2 x NO. Left ON, Right Biased Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$7.00
$8.26 inclGST -
TRB-BD25, 2 x NO, 2 Position Toggle Switch BLACK, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1
TRB-BD25-IP40, 2 x NO, 2 Position Toggle Switch BLACK, 3 Amp @ 240VAC, 0.3 Amp @ 24VDC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD25-IP40 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz, 24VDC Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC, 0.3 Amp @ 24VDC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST -

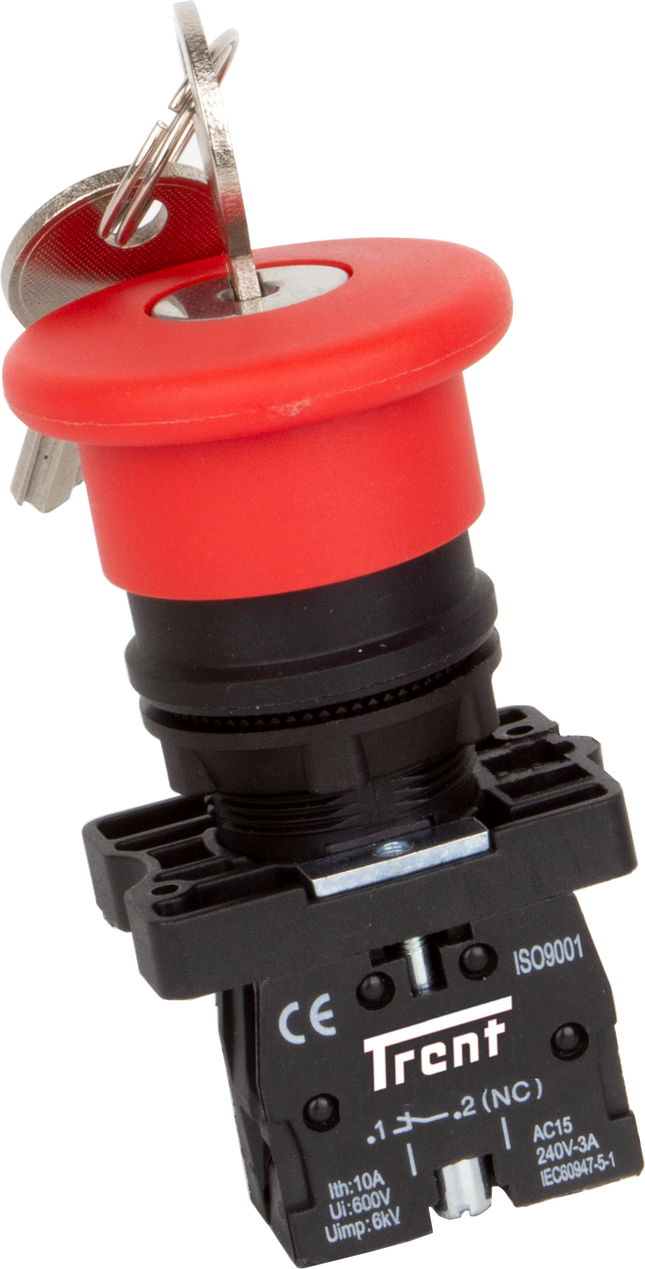

TGB2-ES142G, 40MM Emergency Stop Keyswitch,1 Pos, 1 x NC, IEC60947-5-1
TGB2-ES142G, 40MM Emergency Stop Keyswitch,1 Pos,1 x NC, IEC60947-5-1 Emergency Stop Buttons are used to Isolate Control Power. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout 30mm,40mm,60mm Button Sizes Twist or Key Release Types Standards : IP20 IEC60947-5-1 CE Specification TRENT Part Number TGB2-ES142G Functions 1 Pole Emergency Stop 40MM Switch Type Key Release 1 x NC Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 80g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$15.00
$17.70 inclGST -

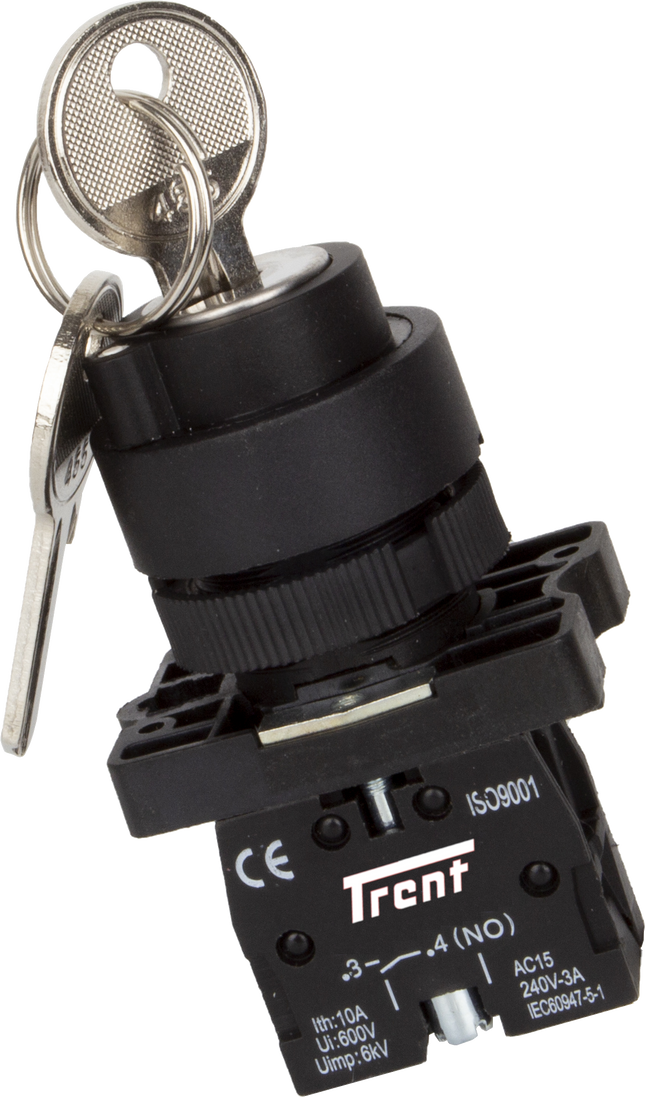

TRB-BG45, Toggle KeySwitch 2 Pos Biased Black 1NO + 1NC, IEC60947-5-1
TRB-BG45, Toggle KeySwitch 2 Pos Biased Black 1NO + 1NC, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BG45 Functions 2 Pole, 3 Position Toggle Switch Switch Type Biased 1 x NO, 1 x NC Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST -
TRB-BD33, 1 x NO, 3 Position Toggle Switch BLACK, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1
TRB-BD33-IP65, 1 x NO, 3 Position Toggle Switch BLACK, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD33-IP65 Functions Latching 1 x NO (Right ON Postion 1), Centre = OFF, 1 x NO (Left ON Postion 2) Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST -

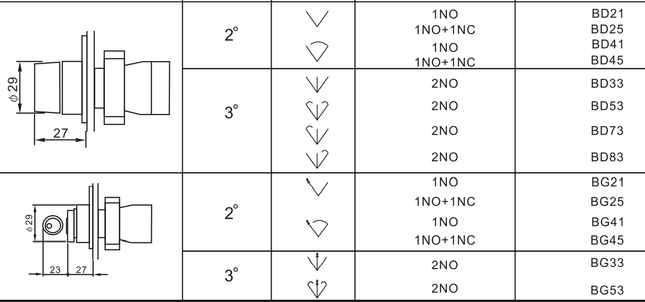

TRB-BG33, 2 x NO, 3 Position Key Switch BLACK Latched, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1
TRB-BG33, 2 x NO, 3 Position Key Switch BLACK Latched, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BG33-IP65 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
$5.00
$5.90 inclGST
