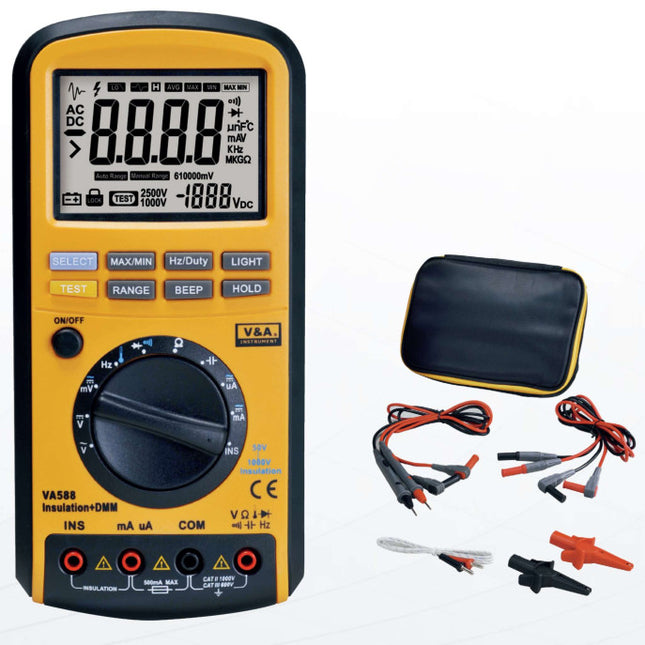

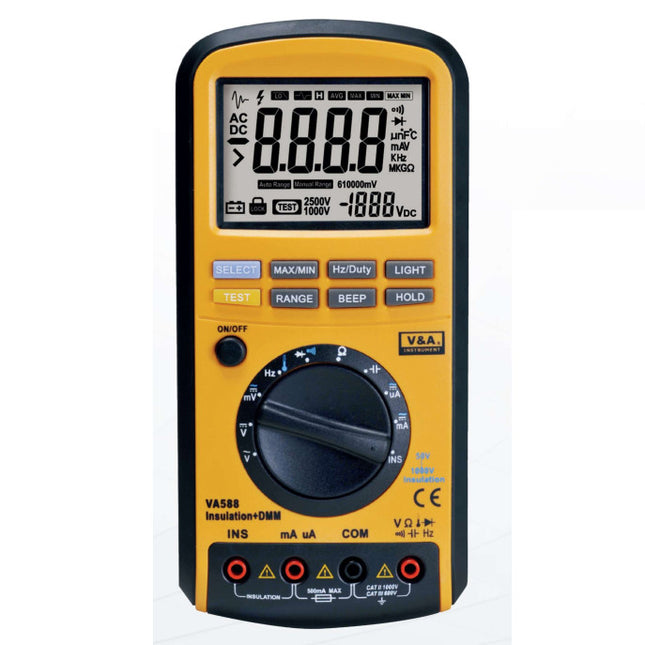

VA Instruments VA588, Portable Insulation Multimeter For Current, Voltage, Resistance, Frequency, Insulation, Temperature   For Testing of: Portable Insulation Multimeter For; Current AC(0.1uA - 500mA +/-0.8%+4) DC(0.1uA - 500mA +/-0.2% +4) Voltage AC(0.1mV - 1000V +/-0.8%+4) DC(0.001 to 1000V +/-0.1% +2) Resistance (0.1 - 50 MOhm +/-0.1% +5) Capacitance (1nF-1000uF +/-2%+10) Frequency (5Hz - 2MHz +/-0.1%+4) Insulation Resitance Test Range (0.05MOhm-2GOhm +/-1.5%+5) Insulation test Voltage 50/100/250/500/1000V +/-1.5%+5) Temperature -50 to 1000 Deg C. 6 x AAA Batteries. 200 x 100 x 40mm Specification   Datasheet Datasheet
