Common Cathode Modules

Westcode-IXYS-Littlefuse MEK95-06DA, Fast Recovery Epitaxial Diode Dual Module Common Cathode, 95 Amp, 600V Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MEK95-06DA Vrrm 600V Diode Configuration FAST Dual Diode Module, Common Cathode IF(av) @ 100 Deg C 95 Amp Package Size W:21mm L:92mm D:30mm Itsm 1.2 kA VF(to) 1.01V Tj(max) 150°C rF 2.85mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.1°C/W Weight 76g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 20 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet

Read more less

Techsem MDK300-16-413F3D, Dual Diode Module Common Cathode, 300 Amp, 1600V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDK300-16-413F3D Vrrm 1600V Diode Configuration Dual Diode Module Common Cathode IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

Techsem MDK110-16-223F3, Dual Diode Module, Common Cathode, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MDK110-16-223F3 Vrrm 1600V Diode Configuration Dual Diode Module, Common Cathode IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKC91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Vishay VSKL91/16, Dual Thyristor Module, Common Cathode 91 Amp, 1600V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKL91/16 Vrrm 1600V Diode Configuration Dual Thyristor Module, Common cathode IF(av) @ 85 Deg C 95 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 2.0 kA VF(to) 1.1V Tj(max) 125°C rF 2.38mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Thyristor Module, 95 Amp, 1400V, 20mm package

Read more less

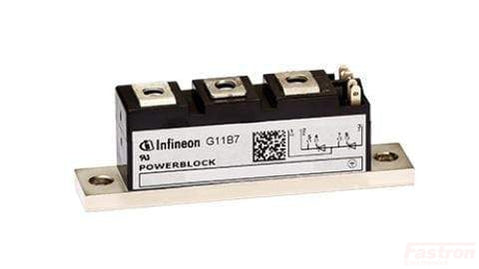

Infineon TT104N14KOF-K Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Center Tapped Transformers Specification Infineon Part Number TT104N14KOF-K Vrrm 1400V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 104 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.05 kA VF(to) 0.85V Tj(max) 125°C rF 2.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.37°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKC91/16 for Solder Bonded alternative

Read more less

Infineon DD171N12K-K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number DD171N12K-K Vrrm 1200V Diode Configuration Common Cathode Dual Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Infineon DD104N12K-K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD104N12K-K Vrrm 1200V Diode Configuration Common Cathode Dual Diode Module IF(av) @ 100 Deg C 104 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.9 kA VF(to) 0.7V Tj(max) 150°C rF 2.1mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.195°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative part

Read more less
