Schurter 4796.0000, IEC Appliance Outlet C20, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 10/8mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C20 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4796.0000 Rated Voltage 250V Rated Current 16A (CE) 20A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C20/Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 4795.0000, IEC Appliance Outlet C19, Black, 16 Amp for 3 x 1.5m sqr/14AWG Maximum wire size 8mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C19 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4795.0000 Rated Voltage 250V Rated Current 16A (CE) 20A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C19/Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 4783.0000, IEC Appliance Inlet C13/F Plug, Black, Rewirable, for 10mm Cable, 70 Deg C Pin Temp Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4782.0000 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Female to Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

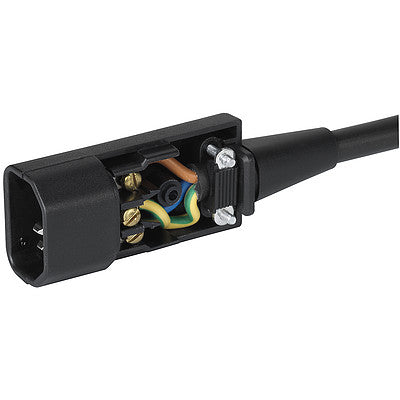

Schurter 4732.0000, IEC Appliance Inlet Type E(C14)/M, Black, Rewirable for 3 x 1.5m sqr/14AWG Maximum wire size 8.5mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet Type E/C14 Male Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4732.0000 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Inlet Material Thermoplastic, black, UL 94V-0 Termination Style Type E(C14) Male to Screw Terminal Rewirable Cable Diameter 8.5mm Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-074, V-Lock IEC Appliance Plug C13/F, Black, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-074 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Female Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 4795.0100, IEC Appliance Outlet C19, Black, 16 Amp for 3 x 1.5m sqr/14AWG Maximum wire size 10mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C19 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 4795.0100 Rated Voltage 250V Rated Current 16A (CE) 20A (UL/CSA) Maximum Cable Diameter 10mm Operating Temperature -25°C to 70°C Mounting Wire Screw Mount/Outlet Material Thermoplastic, black, UL 94V-0 Termination Style C19/Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-076, V-Lock IEC Appliance Plug C13/F, White, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-076 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, white, UL 94V-0 Termination Style C13 Female Screw Terminal Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-078, V-Lock IEC Appliance Plug C13/F, Grey, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-078 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, grey, UL 94V-0 Termination Style C13 Female to Screw Terminal Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-073, V-Lock IEC Appliance Plug C13/F, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 8.3mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-073 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Female to Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less
