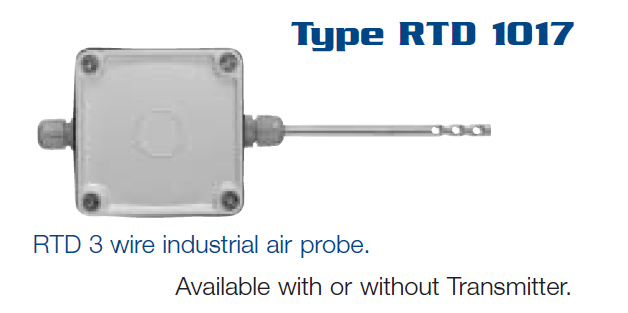

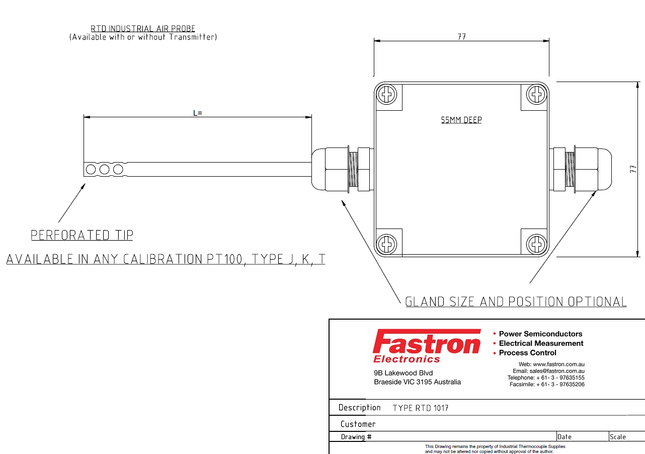

Fastron FRTD-PT100-50, Pt100 Air Temperature Sensor, 50mm shaft length, 77 x 77 x 55mm Body 4-20mA Output 2 Wire Temp Measurement for 0 to 100 Deg C Max 190 x 18mm with 1M Cable 20 Second Response Time 12-30VDC Supply 150mA max Pt100 Temp Sensing Elements Specification Fastron Part Number FRTD-PT100-50 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 3 Shaft Length 190mm Shaft Thickness 18mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-32-SA3-3, Relative Humidity Sensor and Transmitter, 500 x 6mm w/3M Cable 1 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year 300 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor Sensing Elements Specification Fastron Part Number TTH-32-SA3-3 Sensor Type Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 500mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-33-SA3-3, Temperature and Humidity Sensor and Transmitter,500 x 6mm w/3M Cable 2 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year Temp Measurement for 0 to 100 Deg C Max 500 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor and Pt100 Temp Sensing Elements Suitable replacement for Mecatherm T211-XH-954 Specification Fastron Part Number TTH-33-SA3-3 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 500mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-33-SA2-3, Temperature and Humidity Sensor and Transmitter, 300 x 6mm w/3M Cable 2 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year Temp Measurement for 0 to 100 Deg C Max 300 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor and Pt100 Temp Sensing Elements Suitable replacement for Mecatherm T211-XH-954 Specification Fastron Part Number TTH-33-SA2-3 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 300mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-33-SA1-3, Temperature and Humidity Sensor and Transmitter, 150 x 6mm w/3M Cable 2 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year Temp Measurement for 0 to 100 Deg C Max 150 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor and Pt100 Temp Sensing Elements Suitable replacement for Mecatherm T211-XH-954 Specification Fastron Part Number TTH-33-SA1-3 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 150mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

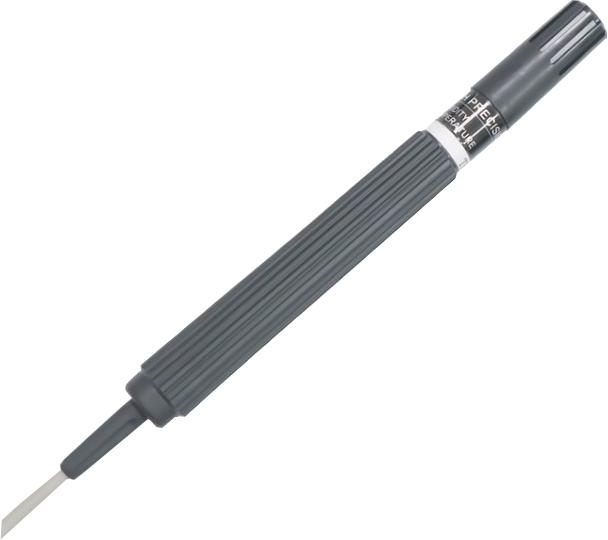

Fastron TTH-31-DB-3, Air Temperature Sensor and Transmitter, 190 x 18-19mm w/ 3M Cable, Can replace GEFRAN TRANSMICOR T211 4-20mA Output 2 Wire Temp Measurement for 0 to 100 Deg C Max 190 x 18mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Pt100 Temp Sensing Elements Specification Fastron Part Number TTH-31-DB-3 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 190mm Shaft Thickness 18-19mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-33-DB-3, Temperature and Humidity Sensor and Transmitter, 190 x 18-19mm w/3M Cable, Can replace GEFRAN TRANSMICOR T211 2 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year Temp Measurement for 0 to 100 Deg C Max 190 x 18mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor and Pt100 Temp Sensing Elements Suitable replacement for Mecatherm T211-XH-954 Specification Fastron Part Number TTH-33-DB-3 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 190mm Shaft Thickness 18-19mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

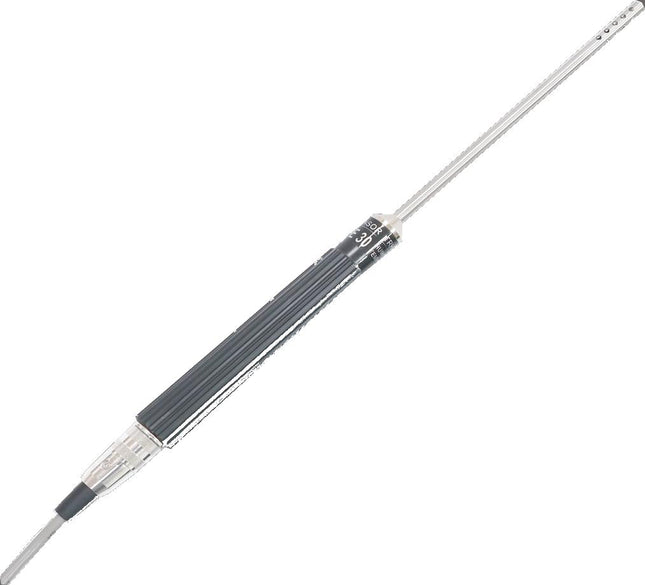

Fastron TTH-32-SA2-3, Relative Humidity Sensor and Transmitter, 300 x 6mm w/3M Cable 1 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year 300 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor Sensing Elements Specification Fastron Part Number TTH-32-SA2-3 Sensor Type Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 300mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-32-SA1-3, Relative Humidity Sensor and Transmitter, 150 x 6mm w/3M Cable 1 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year 150 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor Sensing Elements Specification Fastron Part Number TTH-32-SA1-3 Sensor Type Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 150mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-31-SA1-3, Air Temperature Sensor and Transmitter 6 x 150mm w/3M Cable 4-20mA Output 2 Wire Temp Measurement for 0 to 100 Deg C Max 150 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Pt100 Temp Sensing Elements Specification Fastron Part Number TTH-31-SA1-3 Sensor Type RTD (Temperature) No of Wires 2 Shaft Length 150mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-32-DB-3, Relative Humidity Sensor and Transmitter, 190 x 18-19mm w/3M Cable, Can replace GEFRAN TRANSMICOR T211 1 x 4-20mA Output 2 Wire Humidity Measurement for RH 0 to 100 % Long Term Stability <2% RH per year 190 x 18mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Thin Film Capacitor Sensing Elements Specification Fastron Part Number TTH-32-DB-3 Sensor Type Thin Film Capacitor (Humidity) No of Wires 2 Shaft Length 190mm Shaft Thickness 18-19mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Fastron TTH-31-SA2-3, Air Temperature Sensor and Transmitter 6 x 300mm w/3M Cable 4-20mA Output 2 Wire Temp Measurement for 0 to 100 Deg C Max 300 x 6mm with 3M Cable 20 Second Response Time 12-30VDC Supply 150mA max Pt100 Temp Sensing Elements Specification Fastron Part Number TTH-31-SA2-3 Sensor Type RTD (Temperature) No of Wires 2 Shaft Length 300mm Shaft Thickness 6mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less
