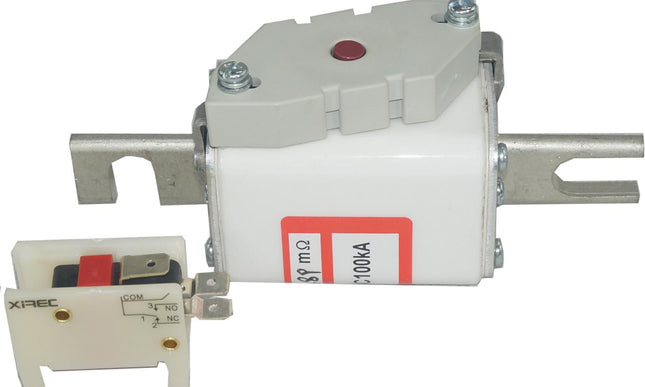

Trent F150M1000-250, 250 Amp, 1000VAC/590VDC 100kA Semiconductor I²t Fuse Size 70 aR to replace Mersen PC70UD13C250D1A
Features
Square Body Size 70 aR
Wide Range of I²t
Ratings up to 2000 Amp
Fuse Holder Mounted
IEC Standard 60269.1 AND 4
500 V Voltage Rating complying with IEC 33
Applications
Protection of High Powered Semiconductors according to I²t
Short Circuit Protection
DC or AC Motor I²t Protection
Battery Fuse
DC Rectifier Output Fuse
Specification
Trent Part Number
F150M1000-250
Fuse Type
I²t AR Class HRC
Nominal Voltage
1000VAC @ 50Hz, 590VDC
I²t Rating (660V)
Nominal Current (RMS + DC)
250 Amp
Tested Breaking Capacity
100kA @ 1000VAC/590VDC
Dimensions
140 x 45 x 60mm(80mm with microswitch)
Indicator
Tag + Microswitch
Mounting Style
Fuse Holder
Operating Temperature Range
-40°C / 125°C
Watts Dissipation
90W
Termination Style
Size 70 aR (110MM Hole centres)
Unit Weight
400g
Factory Pack Qty
3
Datasheet
Product Datasheet
