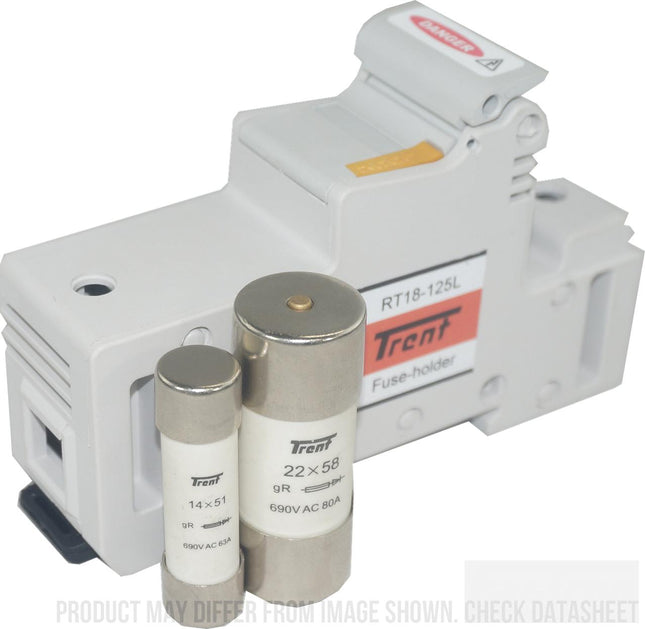

Trent NBR-FR22GR69V32T + RT18-125L Series 32 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 32 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V32T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 605 A²/s/s Nominal Current (RMS + DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-CH14/UQ/20A/690V + RT18-63L Series 20 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/20A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 180 A²/s Nominal Current (RMS + DC) 20 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-FR22GR69V20T + RT18-125L Series 20 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 20 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V20T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 260 A²/s Nominal Current (RMS + DC) 20 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-CH14/UQ/10A/690V + RT18-63L Series 10 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/10A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 22 A²/s Nominal Current (RMS + DC) 10 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-FR22GR69V80T + RT18-125L Series 80 Amp 690V Semiconductor I²t gR Fuse & DIN Rail Fuse Holder Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V80T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre Arcing) 6600 A²/s Nominal Current (RMS + DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

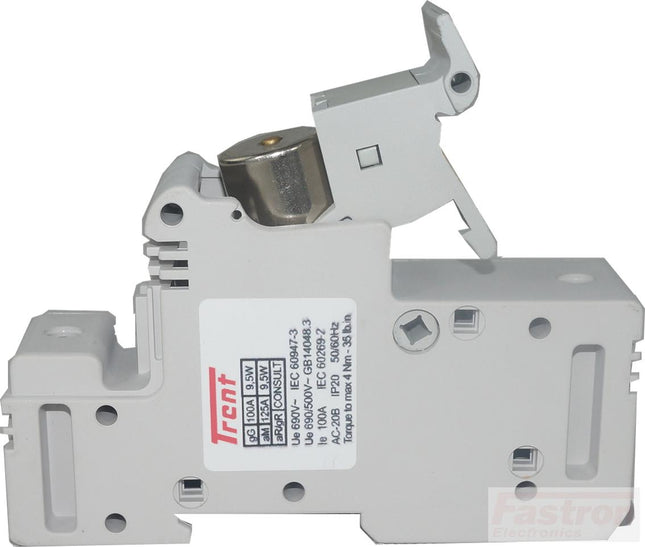

Trent NBR-CH14/UQ/25A/690V + RT18-63L (3pcs), 25 Amp 690V Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with Din Rail Mount Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/25A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 320 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 7.6W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet RT18-63L Fuse Datasheet

Read more less

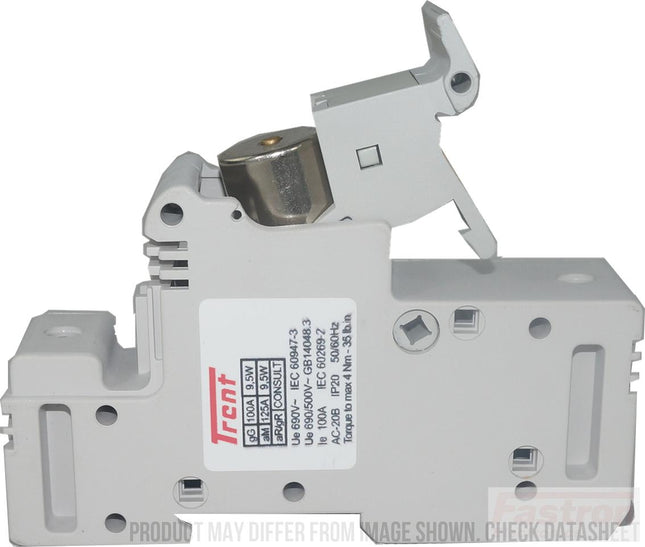

Trent NBR-FR22GR69V50T + RT18-125L Series 50 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 50 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V50T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 1600 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V90T + RT18-125L Series 90 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 90 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V90T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 7500 A²/s Nominal Current (RMS + DC) 90 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-CH14/UQ/32A/690V + RT18-63L Series 32 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/32A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 600 A²/s Nominal Current (RMS + DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-CH14/UQ/12A/690V + RT18-63L Series 12 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/12A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 50 A²/s Nominal Current (RMS + DC) 12 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

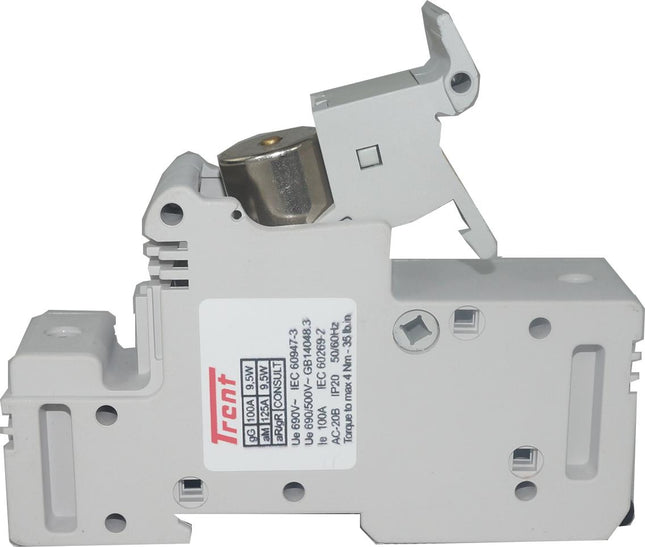

Trent NBR-FR22GR69V63T + RT18-125L Series 63 Amp 690V Semiconductor I²t gR Fuse & DIN Rail Fuse Holder Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V63T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 3080 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

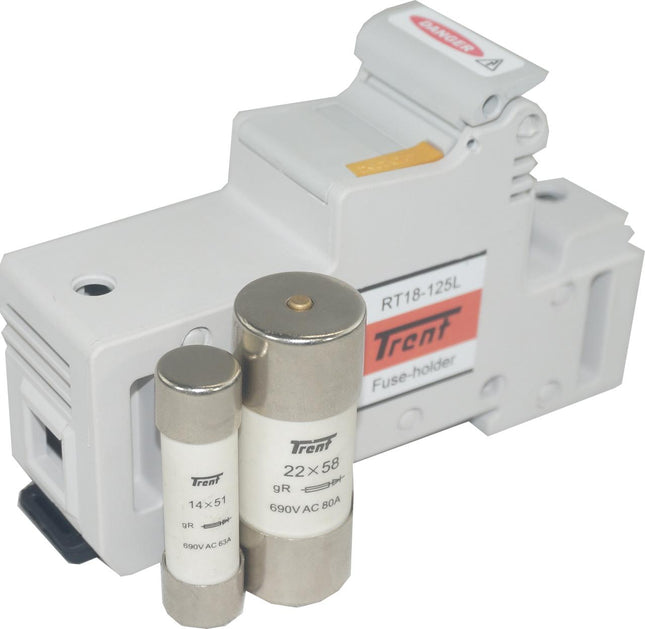

Trent NBR-CH14/UQ/50A/690V + RT18-63L, 50 Amp 690VAC Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with DIN Rail Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 1800 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-63L Datasheet
