Slimline Relays and Sockets

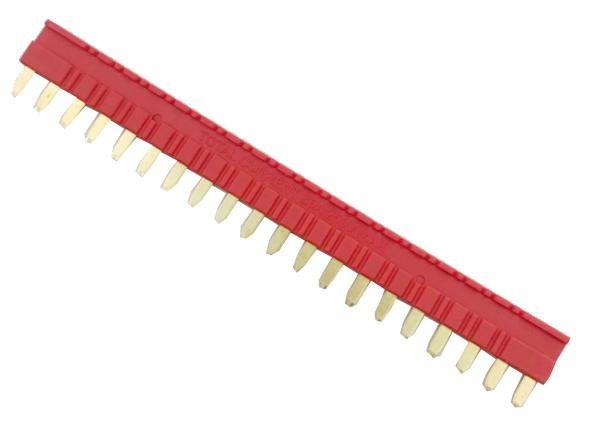

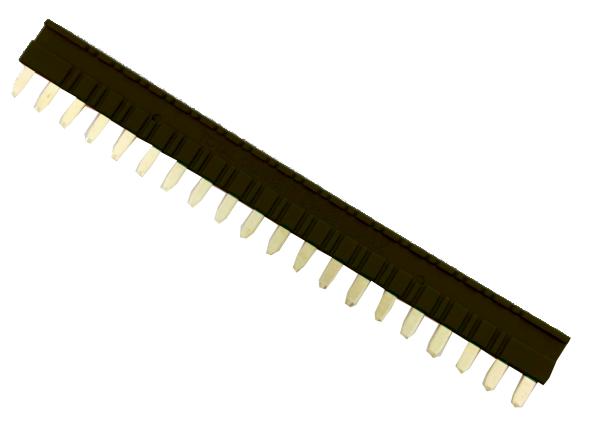

Fastron F41F-J/20P, Bridge Bar for up to 20 Pole F41F Slim Relays Features Rated for 6Amp @ 30VDC or 250VAC Specification Fastron Part Number F41F-J/20P Approvals UL, CE ROHS Yes (Details) Number of Poles 20 Load Current 6 Amp (rms) per Pole Load Voltage Range 250VAC, 30VDC Load Unit Weight 80g Factory Pack Qty 100   Datasheet Relay & Base Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket

Read more less

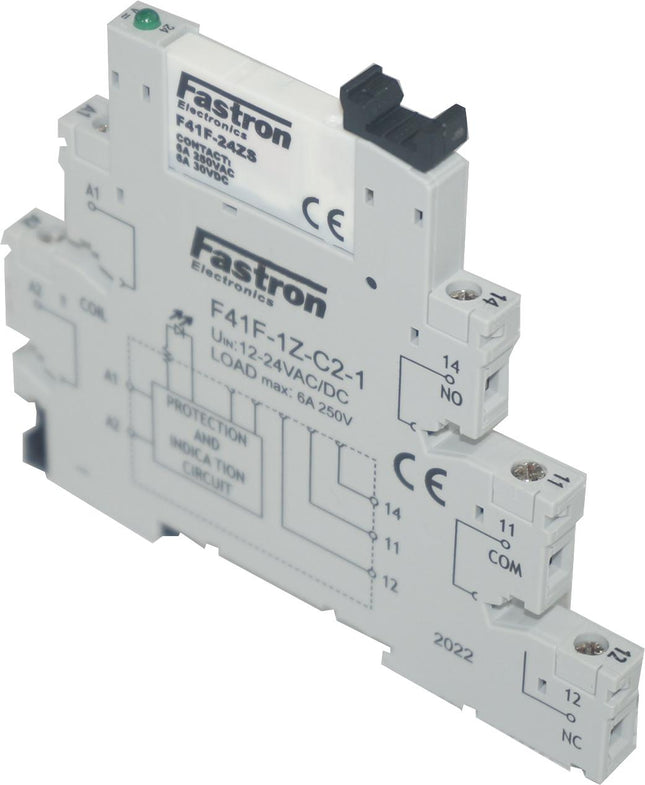

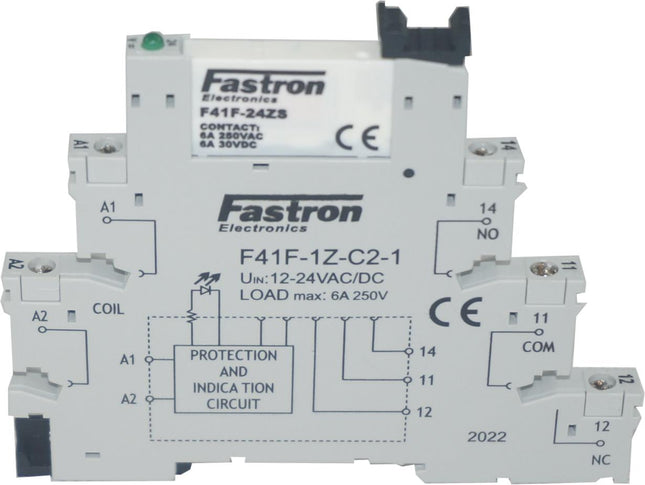

Fastron Electronics Slimline Relay & Socket with Screw Terminals, UL, CE Approved F41F-1Z-C2-1-24AC/DC, Slim Relay & Socket 24VAC/DC Coil, 6 Amp @ 30VDC/250VAC Features Multirange input 24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C2-1-24AC/DC Switching Type 250VAC or 30VDC Load Control Input 24V AC/DC +/-10% Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Coils Power 12mA Relay Type Fastron F41F-24Z Termination Style Screw Unit Weight 60g Factory Pack Qty 100   Datasheet Datasheet

Read more less

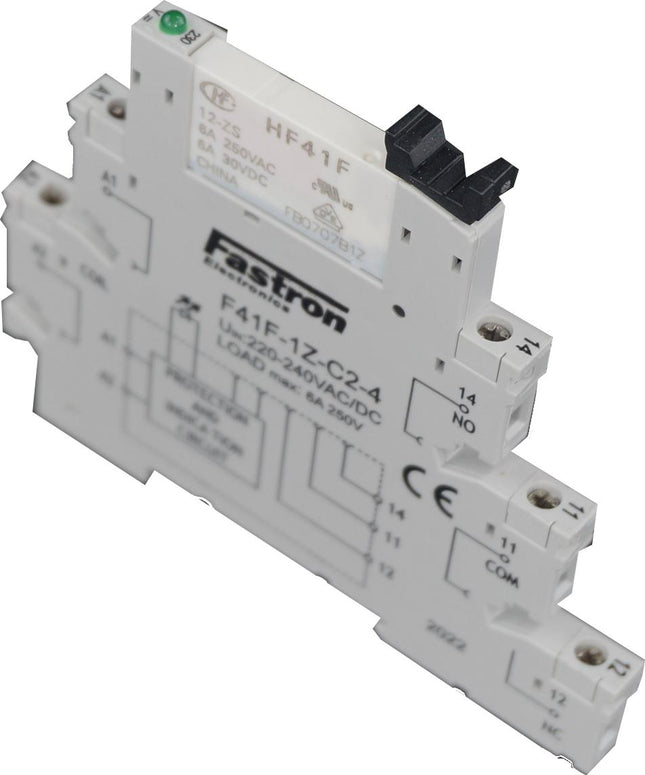

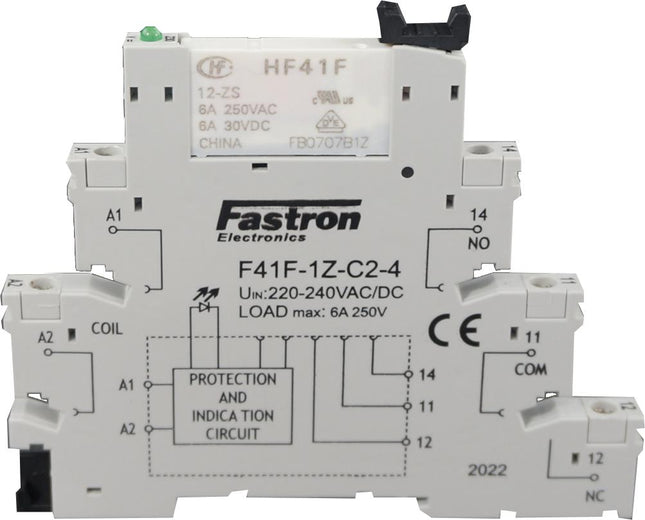

Fastron Electronics Slimline Relay & Socket with Screw Terminals, UL, CE Approved F41F-1Z-C2-1-12VDC, Slim Relay & Socket with Screw Terminals 12VDC Coil, 6 Amp @ 30VDC/250VAC Features Multirange input 12VDC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C2-1-12VDC Switching Type 250VAC or 30VDC Load Control Input 12VDC +/-10% Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Coils Power 12mA Relay Type Fastron F41F-24Z Termination Style Screw Unit Weight 60g Factory Pack Qty 100 Datasheet Datasheet

Read more less

Fastron Electronics F41F-1Z-C4-1-24AC/DC, Slim Relay & Socket with Spring Terminals 24VAC/DC Input, 6 Amp @ 30VDC/250VAC, UL, CE Approved Features Multirange input 24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C4-1-24AC/DC Switching Type 250VAC or 30VDC Load Control Input 24V AC/DC+/-10% Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Coils Power 12mA Relay Type Fastron F41F-24Z Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Datasheet

Read more less

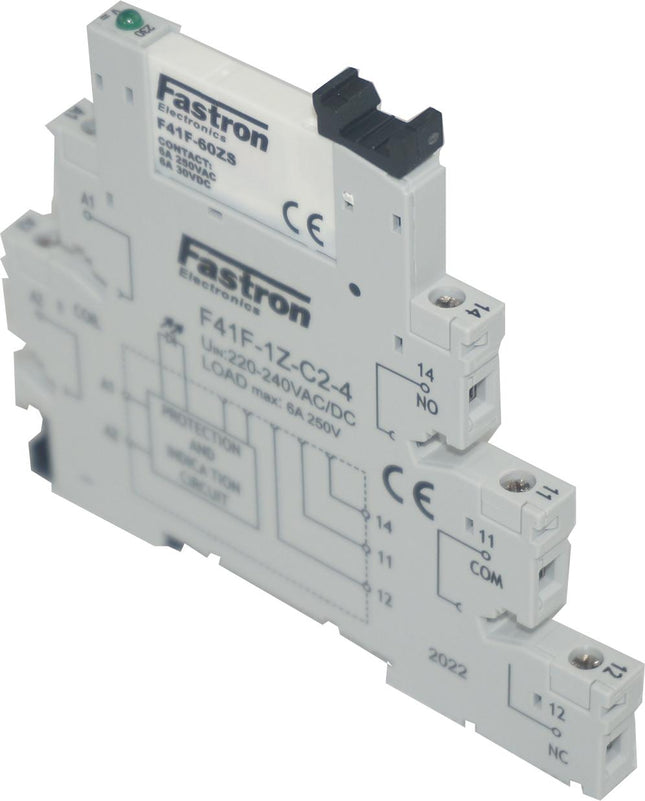

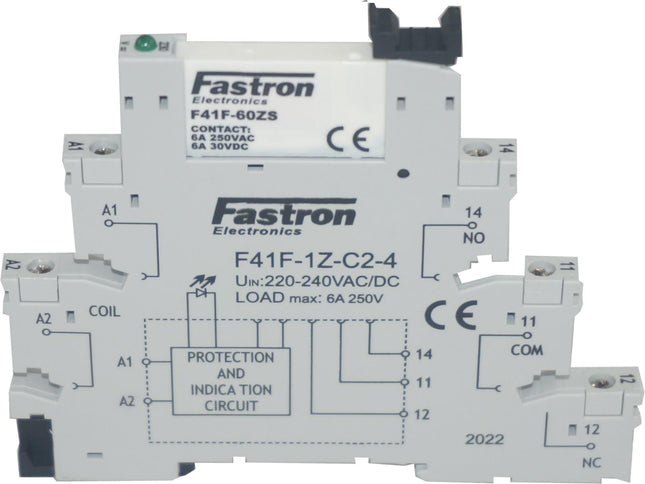

Fastron Electronics F41F-1Z-C2-4-240VAC, Slimline Relay F41F-60ZS  and Socket F41F-1Z-C2-4 with Screw Terminals Features 6 Amp @ 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C2-4-240VAC Switching Type 250VAC or 30VDC Load Control Input 220/240VAC Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 50g Factory Pack Qty 100   Datasheet Datasheet

Read more less

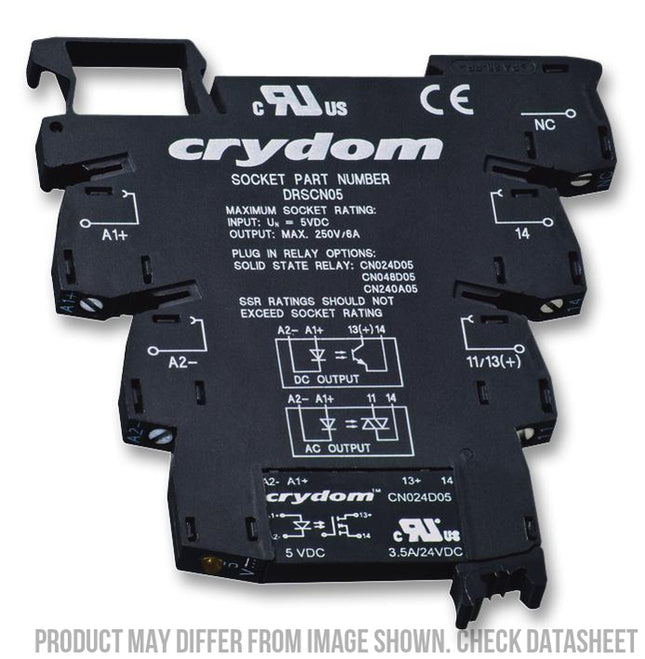

Crydom DRA-CN024D05, Slimline Relay & Socket, 3-12VDC Coil, 3.5 Amp 24VDC Load Features Output 3.5 Amp @ 24VDC 3-12VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number DRA-CN024D05 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 3-12VDC Load Current 3.5 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 24VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

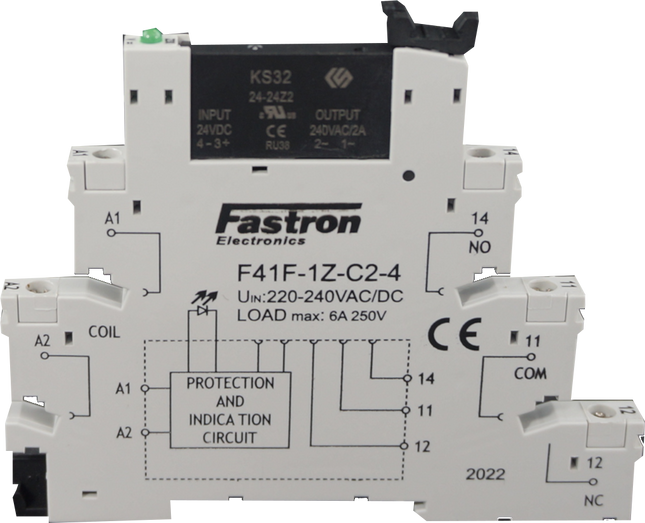

Keysolu KS32 24-24Z2 & F41F-1Z-C2-1, Slim Solid State Relay & Socket with Screw Terminals 230VAC Input, 2 Amp @ 240VAC Features Multirange input 12-24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Ultra slim package UL Listed (Keysolu make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32/60-24Z2 & F41F-1Z-C2-4 Switching Type 240VAC Control Input 230VAC+/-15% Current @ Rated Voltage 2 Amp Contact Arrangement 1 x Slim SSR SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Screw Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Relay Base Datasheet Relay Datasheet

Read more less

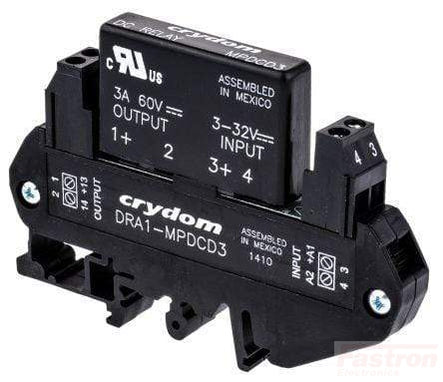

Crydom DRA1-MPDCD3-B, DC Solid State Relay, 3-32VDC control input, 3A, 3-60VDC output, DIN Rail mount, Normally Closed Features Ratings up to 3 Amp @ 60VDC, or 4 Amps @ 280VAC DIN Rail Mount Mosfet output for reliable DC switching, SCR for AC Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DRA1-MPDCD3-B Switching Type DC Load ROHS Yes (Details) Control Voltage 3-32VDC Load Current 3 Amp DC Surge Capability (10ms) 5 Amp DC Special Feature Normally Closed, LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 35g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR06D03, Solid State Relay, 4-32VDC control, 3 Amp 1-60VDC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR06D03 Switching Type DC ROHS Yes (Details) Control Voltage 4-32VDC Load Current 3 Amp (rms) Surge Capability (10ms) 60 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 1-60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent DRA1-CMX60D10 ED06C5 ED06D5 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fuse Drawers for Fuse Links 5x20mm suits various IEC inlet including DD11,DD12,DD21,D22,KEA-Print,KFA,KMF Series Product Datasheet

Read more less

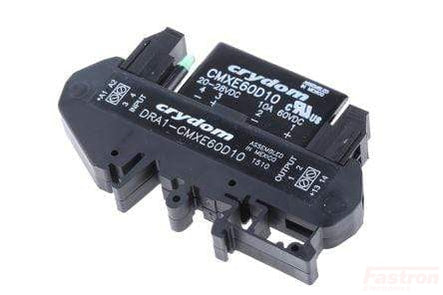

Crydom DRA1-CMXE60D10, Solid State Relay, 20-28VDC Control, 10 Amp, 0-60VDC Load, Din Rail Mount Features Ratings from 3A to 20 Amp @ 60-200VDC DIN Rail Mount Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DRA1-CMXE60D10, Switching Type DC Load ROHS Yes (Details) Control Voltage 20-28VDC Load Current 10 Amp DC Surge Capability (10ms) 100 Amp DC Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

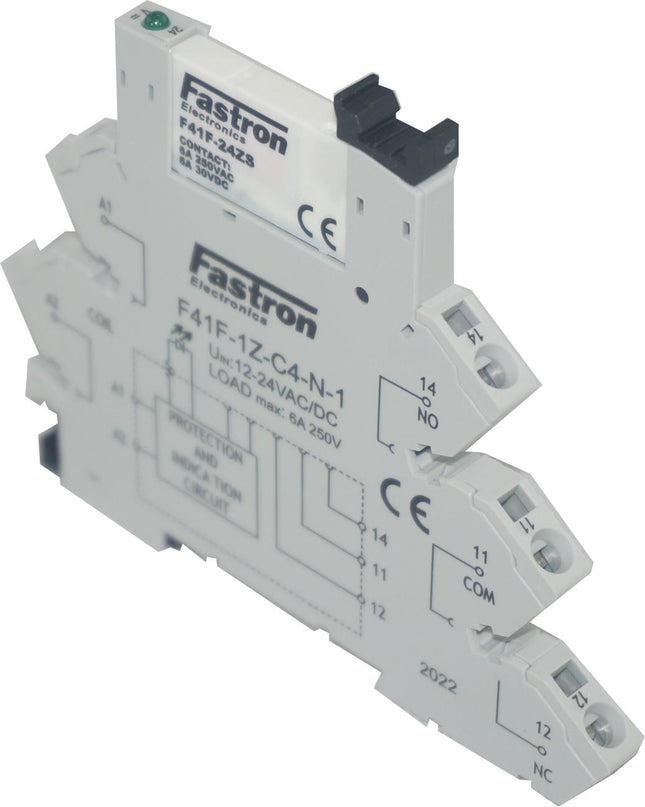

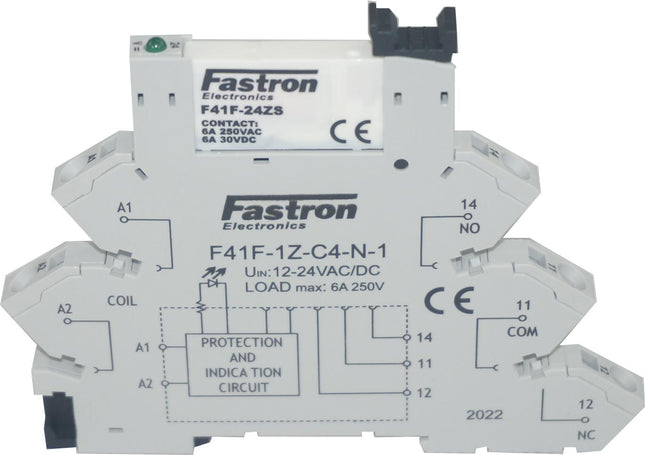

Fastron Electronics F41F-1Z-C4-4-240VAC, Slim Relay & Socket with Spring Terminals 220/240VAC Input, 6 Amp @ 30VDC/250VAC Features Multirange input 220/240VAC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C4-4-240VAC Switching Type 250VAC or 30VDC Load Control Input 220/240VAC +/-10% Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Coils Power 12mA Relay Type Fastron FHF41F0224ZS Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Datasheet
