Schurter 3-122-074, V-Lock IEC Appliance Plug C13/F, Black, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13 Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-074 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Female Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

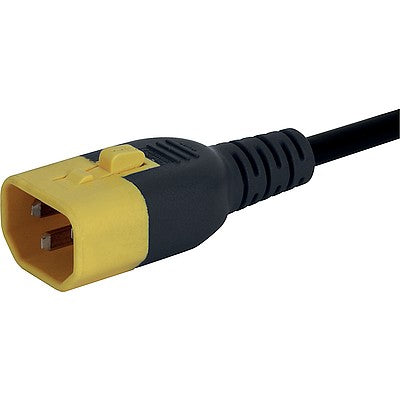

6051.2067, C13/C14 Cordset Interconnecting, V-Lock cord retaining, 1.5 m, V-75, black 10A 10mm Features 1.5M Length Appliance Inlet C13/C14 acc to IEC 60320-1 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6051.2067 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 / C14 Weight 150g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-073, V-Lock IEC Appliance Plug C13/F, Black, for 3 x 1.5m sqr/14AWG Maximum wire size 8.3mm Type Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-073 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, black, UL 94V-0 Termination Style C13 Female to Screw Terminal Weight 40g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-078, V-Lock IEC Appliance Plug C13/F, Grey, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-078 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, grey, UL 94V-0 Termination Style C13 Female to Screw Terminal Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter 3-122-076, V-Lock IEC Appliance Plug C13/F, White, for 3 x 1.5m sqr/14AWG Maximum wire size Features Panel Mount : Snap-in Mounting from Front Side Appliance Inlet C13/F Plug acc to IEC 60320-1 Screw On Mounting 70 °C pin Temperature Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Pin versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 3-122-076 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Operating Temperature -25°C to 70°C Mounting Wire Screw Mount Material Thermoplastic, white, UL 94V-0 Termination Style C13 Female Screw Terminal Weight 30g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet
