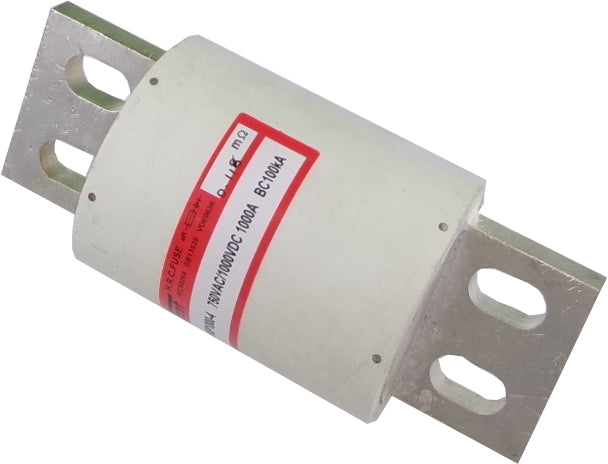

Trent A100P1000-4, Amptrap Semiconductor Fuse, 1000 Amp, 750VAC/1000VDC, Form 101, 100kA, Name Brand Replacement
Features
Square Body DIN 43 653
Wide Range of I²t
Ratings up to 2000 Amp
Busbar or Fuse Holder Mounted
IEC Standard 60269.1 AND 4
690 V Voltage Rating complying with IEC 33
Applications
Protection of High Powered Semiconductors according to I²t
Short Circuit Protection
DC or AC Motor I²t Protection
Battery Fuse
Specification
Trent Part Number
NBR-A100P1000-4
Fuse Type
I²t AR Class
Nominal Voltage
690VAC @ 50Hz
I²t Rating (660V)
Nominal Current (RMS + DC)
1000 Amp
Tested Breaking Capacity
100kA @ 750VAC/1000VDC

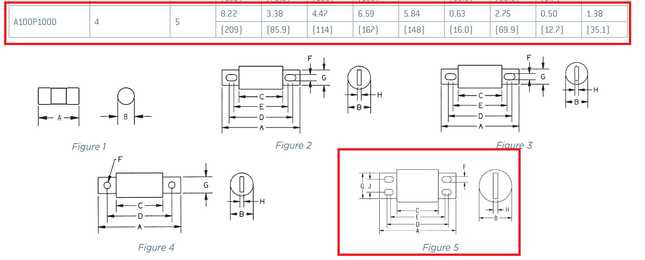

Dimensions
209 x 85.9mm
Hole Centers
148-167mm
Mounting Style
Busbar or Panel Mount with Standoff
Operating Temperature Range
-40°C / 125°C
Watts Dissipation
125W
Termination Style
M10
Unit Weight
1500g
Factory Pack Qty
10
Datasheet
Product Datasheet

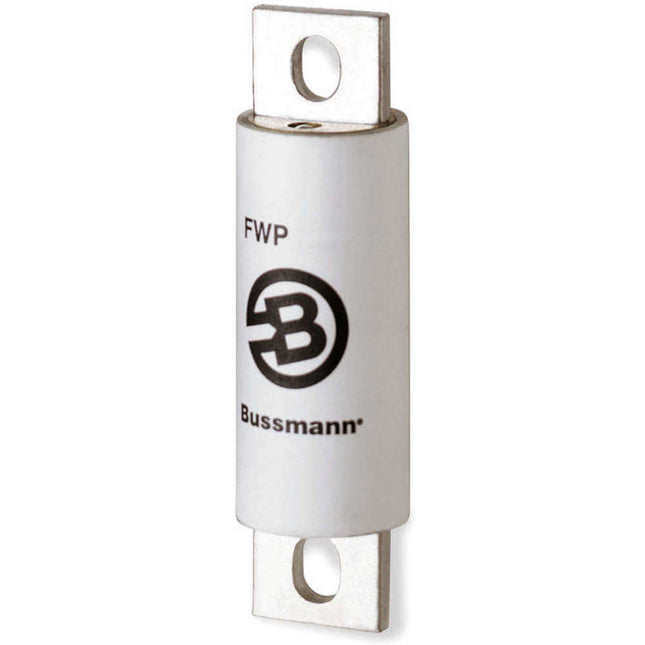

Trent I²t Semiconductor Fuse, NBR-FWP-600A 700V AC/DC, Semiconductor Fuse, 600 Amp, 700VAC/DC, Round Barrel 7.09 x 2.0 x 2.5 Inches. Clearing I2t 250kA, Breaking Capacity 200kAand Microswitch
Features
Square Body DIN 43 653
Wide Range of I²t
Ratings up to 2000 Amp
Busbar or Fuse Holder Mounted
IEC Standard 60269.1 AND 4
690 V Voltage Rating complying with IEC 33
Fuse Blown Indicator and Microswitch
Applications
Protection of High Powered Semiconductors according to I²t
Short Circuit Protection
DC or AC Motor I²t Protection
Battery Fuse
Specification
Trent Part Number
NBR-FWP-600A 700V AC/DC
Fuse Type
I²t AR Class
Nominal Voltage
700VAC @ 50Hz
I²t Rating (660V)
250000A²/s
Nominal Current (RMS + DC)
600 Amp
Tested Breaking Capacity
200kA @ 700VAC/DC
Dimensions
138 x 61 x 50mm
Hole Centers
108mm +
Mounting Style
Busbar or Panel Mount with Standoff
Operating Temperature Range
-40°C / 125°C
Watts Dissipation
75W
Termination Style
M10
Unit Weight
350g
Factory Pack Qty
10
Datasheet
Product Datasheet

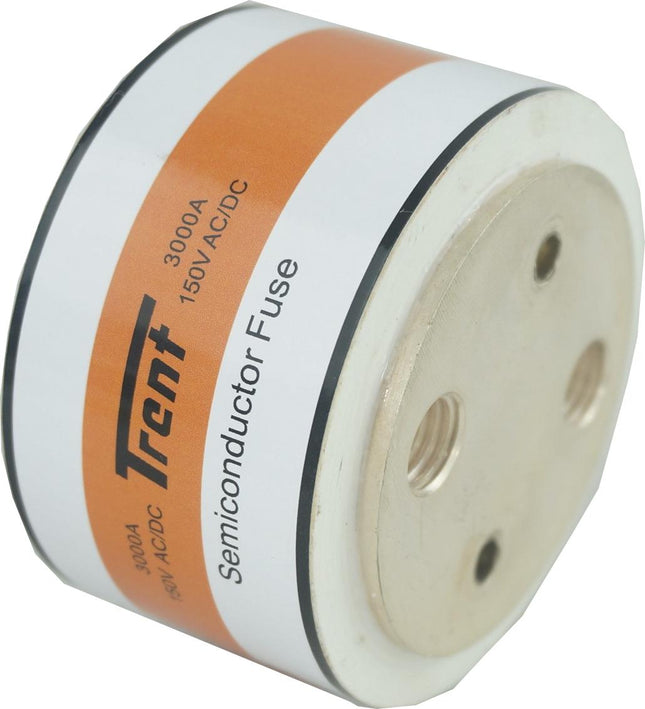

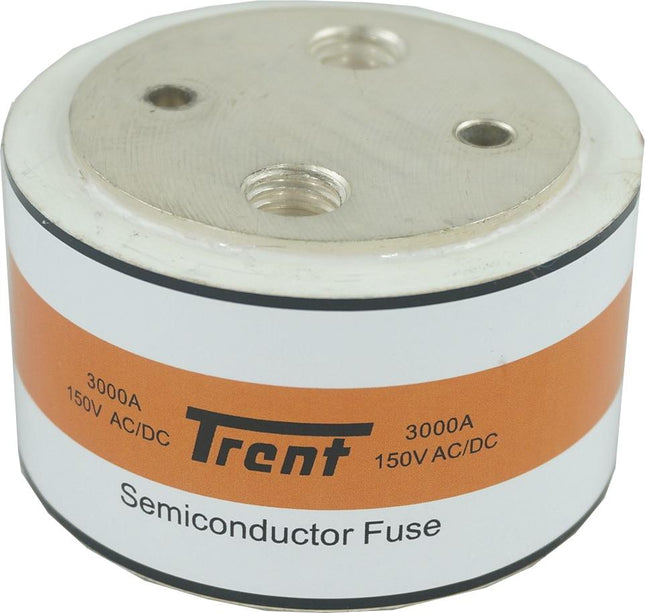

Trent NBR-A15QS3000-128, Amp Trap Semiconductor Fuse, 3000 Amp, 150V, Capsule Style, 100kA
Features
Capsule Style
Low I²t
Ratings up to 6000 Amp
Busbar Mounted
Form 101
150 V Voltage Rating complying with IEC 33
Applications
Protection of High Powered Semiconductors according to I²t
Short Circuit Protection
DC or AC Motor I²t Protection
Battery Fuse
Specification
Trent Part Number
NBR-A15QS3000-128
Fuse Type
I²t Amp Trap Form 101
Nominal Voltage
150VAC @ 50Hz /150VDC
I²t Rating (660V)
640000A²/s
Nominal Current (RMS + DC)
3000 Amp
Tested Breaking Capacity
100kA @ 150VAC/DC
Dimensions
⌀41.4 x 47.8
Hole Centers
38.1mm
Mounting Style
Busbar Mount
Operating Temperature Range
-40°C / 125°C
Watts Dissipation
Termination Style
1/2" 20 UNF, 1/2" Deep
Unit Weight
500g
Factory Pack Qty
3
Datasheet
Product Datasheet
