PWM Duct Heating Modules
-

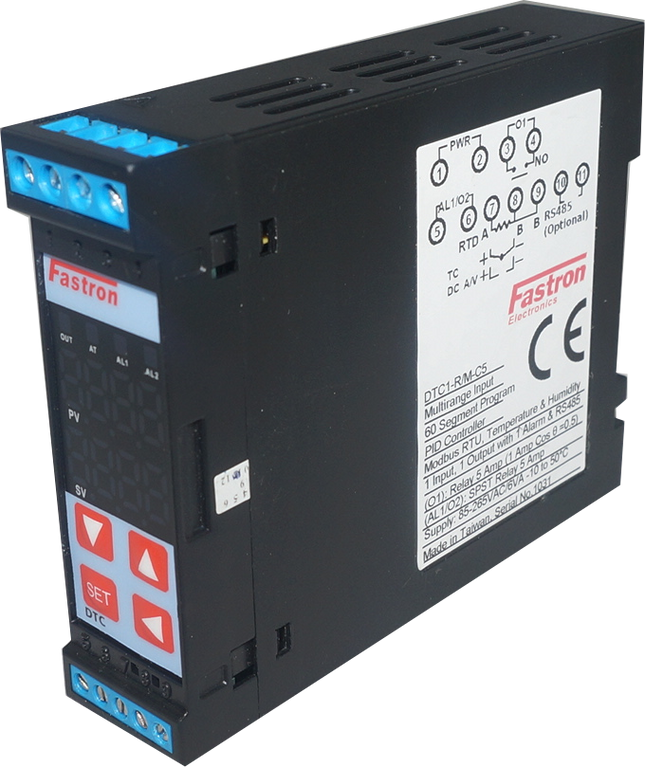

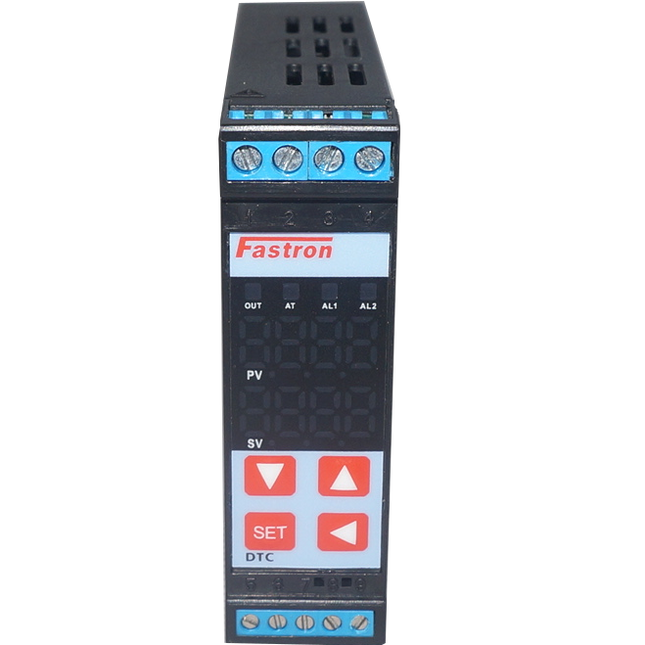

DTC1-S/M-SP08, DIN Rail Mount HVAC Duct Heater PWM Controller with Dehumidification Function, Multirange Thermocouple Input, 100-240VAC/DC, 12VDC SSR Output, Replacement for DCL33AS/M-SP08 Series Shinko PWM Controller
Fastron DTC1-S/M-SP08, DIN Rail Mount HVAC Duct Heater PWM Controller with Dehumidification Function, Multirange Thermocouple Input, Pt100 Input Jumper Setting, 100-240VAC/DC, 12VDC SSR Output, Replacement for DCL33AS/M-SP08 Series Shinko PWM Controller Optional converter function 2 Input 1 Output, and 1 Input Two Output Versions available Optional 60 Segment Multi Pattern Program Control feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) CE Approved Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Various specials available for unique applications. Specification Fastron Part Number DTC1-S/M-SP08 Control Output SSR 12VDC@30mA Input Multirange K/J/R/S/B/E/T/PT100/Cu50/Linear Voltage Current(Optional)/N/W1/W2 Alarm Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Options PWM for HVAC Systems Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 230g Factory Pack Qty 1 CE Yes Selection Chart PWM Control Wiring Datasheet DTC1 Brochure DTC1User Manual DTC1 User Manual Comms versions Alarm Table DTC1 (Program Control Version) User Manual
$229.00
$270.22 inclGST -
DTC1-S/M1-SP08, DIN Rail Mount HVAC Duct Heater PWM Controller, 0-5V Input, 24VAC/DC, 12VDC SSR Output
Fastron DTC1-S/M1-SP08, DIN Rail Mount HVAC Duct Heater PWM Controller, 0-5V Input, 24VAC/DC, 12VDC SSR Output Optional converter function 2 Input 1 Output, and 1 Input Two Output Versions available Optional 60 Segment Multi Pattern Program Control feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) CE Approved Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Various specials available for unique applications. Specification Fastron Part Number DTC1-S/M1-SP08 Control Output SSR 12VDC@30mA Input Multirange K/J/R/S/B/E/T/Linear Voltage 0-5V/Linear Current 4-20mA/Pt100 Alarm Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Options PWM for HVAC Systems Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 24VAC/DC Termination Style Screw Weight 230g Factory Pack Qty 1 CE Yes ?? Selection Chart PWM Control Wiring Datasheet DTC1 Brochure DTC1User Manual DTC1 User Manual Comms versions Alarm Table DTC1 (Program Control Version) User Manual
$229.00
$270.22 inclGST
