HF121-12/0.4-16.7-7%K, 16.7kVar 400VAC 7% Detuned Reactor for Power Factor Correction Capacitor Banks Specification Technical Features HF121-12/0.4-12.5-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 3.678mH Inductance (mH @ 525VAC) Nominal Power 16.7kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 21kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Fastron Electronics HF121-12/0.4-50-14%K, 50kVar 400VAC 14% Detuned Reactor for Power Factor Correction Capacitor Banks, 1.54mH(400VAC) 2.457mH(525VAC) Specification Technical Features HF121-12/0.4-50-14%K Electrical Voltage 400V System/525V Capacitor Network Frequency 50/60Hz Nominal Power 50kvar Value of p% 14 %(134 / 160Hz) mH Rating 1.54mH(400VAC) 2.457mH(525VAC) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 38kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Fastron Electronics HF121-12/0.4-25-14%K, 25kVar 400VAC 14% Detuned Reactor for Power Factor Correction Capacitor Banks, 3.07mH(400VAC) 4.914mH(525VAC) Specification Technical Features HF121-12/0.4-25-14%K Electrical Voltage 400V System/525V Capacitor Network Frequency 50/60Hz Nominal Power 12.5,25,40,50kvar Inductance 3.07mH(400VAC) 4.914mH(525VAC) Value of p% 14% (134 / 160Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 21kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Fastron Electronics HF121-12/0.4-50-7%K, 50kVar 400VAC(0.76mH) 7% Detuned Reactor for Power Factor Correction Capacitor Banks, 0.76mH(400VAC) 1.229mH(525VAC) Specification Technical Features HF121-12/0.4-50-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH) @ 400VAC 0.76mH Inductance (mH) @ 525VAC 1.229mH Nominal Power 50kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 38kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Fastron Electronics HF121-12/0.4-40-7%K, 40kVar 400VAC(0.95mH) 7% Detuned Reactor for Power Factor Correction Capacitor Banks, 0.95mH(400VAC) 1.526mH(525VAC) Specification Technical Features HF121-12/0.4-40-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 0.95mH Inductance (mH @ 525VAC) 1.526mH Nominal Power 40kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 25kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

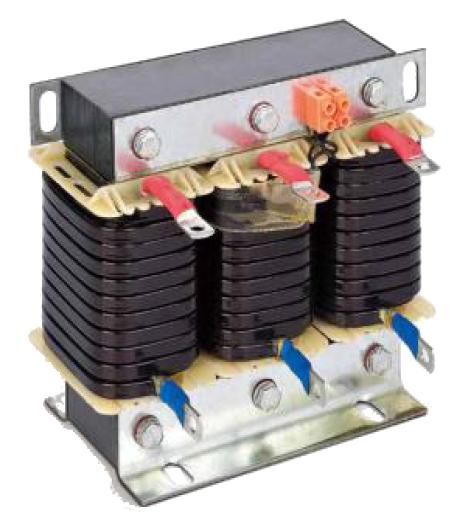

Fastron Electronics HF121-12/0.4-12.5-7%K, 12.5kVar 400VAC(3.06mH) 7% Detuned Reactor for Power Factor Correction Capacitor Banks, 3.06mH(400VAC) 4.914mH(525VAC) Specification Technical Features HF121-12/0.4-12.5-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 3.06mH Inductance (mH @ 525VAC) 4.914mH Nominal Power 12.5kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 21kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Fastron Electronics HF121-12/0.4-25-7%K, 25kVar 400VAC(1.53mH) 7% Detuned Reactor for Power Factor Correction Capacitor Banks, 1.53mH(400VAC) 2.457mH(525VAC) Specification Technical Features HF121-12/0.4-25-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 1.53mH Inductance (mH @ 525VAC) 2.457mH Nominal Power 25kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 30kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide
