Oztherm F330 Series 3 Phase SCR Phase Angle Controller Spare Card Set, Can Replace Novatherm C3000 & C3000A Features 100% Australian Made 3 Phase, Phase Angle Controller or DC Soft Starter 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Fully enclosed IP20 Phase angle switching Aluminium Frame Removable perspex Cover Applications Electrical Ovens, Kilns, or Furnaces AC Soft Starter Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Sheet Metal Welding Available Options Voltage Regulation AC (A) Current Limit and Trip AC (C) Current Limit and Trip DC (CE) Current Control/Constant Current AC(CC) Current Control/Constant Current DC(CCE) Power Limit (PW) Phase Loss Alarm/Dispable (PH) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overlad Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F330 Series 3 Phase, Phase Angle Controller Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current N/A Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC or DC, Current Control AC or DC, Voltage Regulation AC, Power Limit, Phase Loss Alarm, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 380-440VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 10kg Factory Pack Qty 1 Brochure F330 Brochure Technical Docs Installation and Commissioning Manual Standard Thyristor Wiring Diagram Control Card Wiring Diagram F311A1 New CCE option PCB1019-XX Wiring Diagram Bridge Output Thyristor Wiring Diagram Primary Transformer Wiring Diagram Start Delta Wiring Diagram Calibration Procedure Blog PDF Copy of Calibration Procedure Customised models Customised models list Contact Us for Possible Replacement for customised features not listed

Read more less

Oztherm F430 Series 2 Leg SCR Burst Controller Spare Card Set 100% Australian Made 3 Phase Burst Controller 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Fully enclosed IP20 Burst Fired switching Aluminium Frame Removable perspex Cover Applications Electrical Ovens, Kilns, or Furnaces Secondary or Direct Control only Controlled Power Applications Electric Boilers Smelting of Raw Metals Suitable for extreme environments such as mining Room/Chamber heating Available Options Current Limit and Trip AC (C) Phase Loss Output (PH) Partial Load Failure (PLF) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overlad Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F430 Series 2 Leg Burst Controller (Cards Only) Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current 30 - 120Amps Per Phase Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC, Phase Loss Alarm, Partial Load Failure Alarm, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 380-440VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 3kg Factory Pack Qty 1 Datasheet F430 Brochure F430 Installation and Commissioning Manual

Read more less

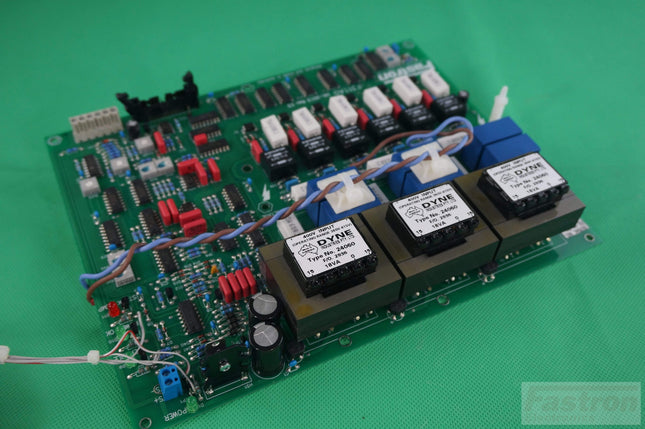

Oztherm F431 Series 3 Phase SCR Burst Controller Spare Card Set 100% Australian Made 3 Phase Burst Controller 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Fully enclosed IP20 Burst Fired switching Aluminium Frame Removable perspex Cover Applications Electrical Ovens, Kilns, or Furnaces Secondary or Direct Control only Controlled Power Applications Electric Boilers Smelting of Raw Metals Suitable for extreme environments such as mining Room/Chamber heating Available Options Current Limit and Trip AC (C) Power Limit (PW) Phase Loss Output (PH) Partial Load Failure (PLF) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overlad Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F431 Series 3 Phase Burst Controller (Cards Only) Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current 30 - 120Amps Per Phase Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC, Power Limit, Phase Loss Alarm, Partial Load Failure Alarm, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 380-440VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 3kg Factory Pack Qty 1 Datasheet F431 Brochure F431 Installation and Commissioning Manual

Read more less

Oztherm F311 Series Single Phase SCR Phase Angle Controller, Card Only 100% Australian Made Single Phase, Phase Angle Controller or AC Soft Starter 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Phase angle switching Cards Only Applications Electrical Ovens, Kilns, or Furnaces AC Soft Starter Primary Control of Transformer Rectifers Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Sheet Metal Welding Available Options Voltage Regulation AC (A) Current Limit and Trip AC (C) Current Control/Constant Current AC (CC) Power Limit (PW) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overload Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F330 Series 3 Phase, Phase Angle Controller Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current 100 - 150 Amps Per Phase Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC, Current Control AC, Voltage Regulation AC, Power Limit, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 190-265VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 28kg Factory Pack Qty 1 Technical Docs F311 Brochure F311 Installation and Commissioning Manual Calibration Procedure Blog - New Calibration Procedure PDF Thyristor Wiring Diagrams - New Control Wiring Diagrams - New Customised models Customised models list Contact Us for Possible Replacement for customised features not listed

Read more less

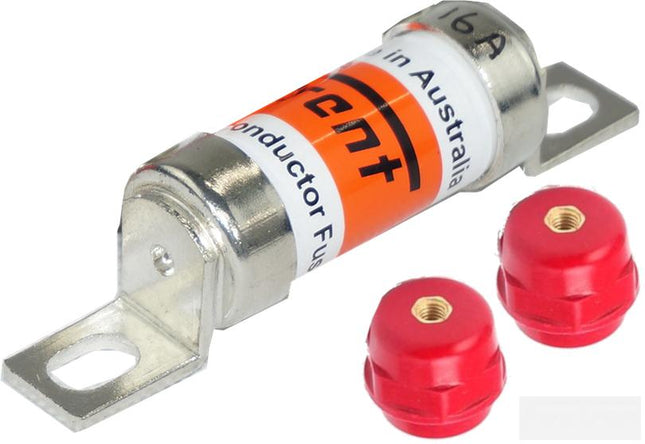

FK-1-40, Fuse Kit for 20-40 Amp F311 Single Phase Power Controller Contains: 1 x 40AF 2 x M5x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

FK-1-75, Fuse Kit for 50-75 Amp F311 Single Phase Power Controller Contains: 1 x 75AF 2 x M5x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

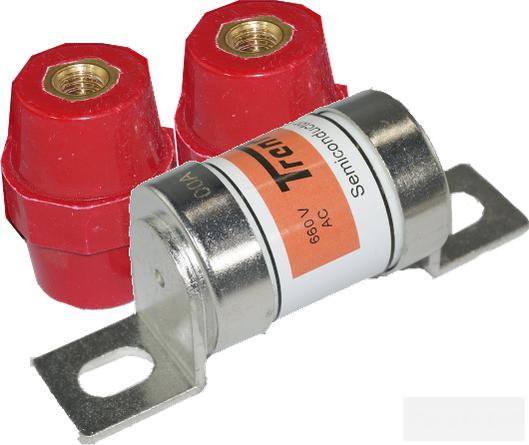

Fuse Kit for 80-125 Amp F311 Single Phase Power Controller Contains: 1 x 125BF 2 x M6x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

FK-1-150, Fuse Kit for 130-150 Amp F311 Single Phase Power Controller Contains: 1 x 150AF 2 x M5x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

FK-1-200, Fuse Kit for 160-200 Amp F311 Single Phase Power Controller Contains: 1 x 200BF 2 x M5x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

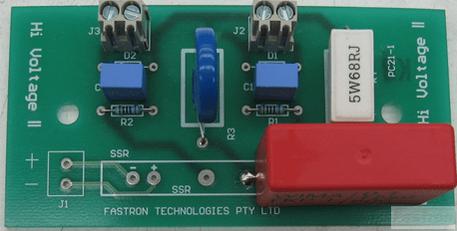

PC21-CX480D5, SCR Gate Firing Card. Intended for Solid State Contactors using SCR's, 3-15VDC Control Input

Read more less

PC21-CXE480D5, SCR Gate Firing Card. Intended for Solid State Contactors using SCR's 15-32VDC Control

Read more less

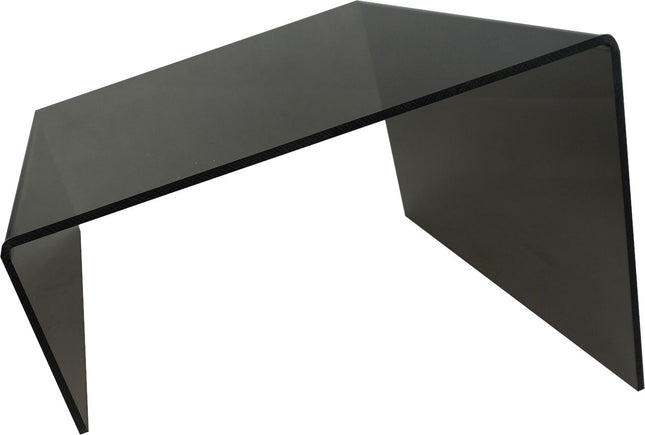

Perspex Cover for F Series Power Controllers up to 100 Amp See the following brochures for dimensions of each controller F330 Brochure F431 Brochure F430 Brochure

Read more less
