Fuse Holders for Appliance Fuses
-
0091.0001, FSO DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series)
Schurter 0091.0001, FSO DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series) Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Schurter Part Number 0091.0001 Nominal Voltage 1000VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions 10.3 x 38mm Fuse Holder Dimensions 17.78 x 77.72mm Suitable Fuses ASO, AEO, PV10 Operating Temperature Range -40°C / 130°C Unit Weight 54g Factory Pack Qty 10 Datasheet Product Datasheet Alternatives VCB10 Fuse Holders
$21.45
$25.31 inclGST -

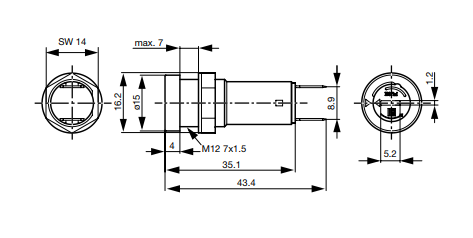

0031.3901, FBS1 Shocksafe Fuseholder, 5 x 20 mm, Slotted Cap, 1.6 W / 6.3 A, Black IP40, Fixing Nut
Free Aus Post Shipping for $300 SpendSchurter 0031.3901, FBS1 Shocksafe Fuseholder, 5 x 20 mm, Slotted Cap, 1.6 W / 6.3 A, Black IP40, Fixing Nut Features Fuseholder with high rated power acceptance - Panel thickness up to 7mm Screw type fuse carrier Slotted Type Specification Schurter Part Number 0031.3901 Fuse Holder Size 5 x 20mm Nominal Voltage 250VAC Rated Power 2.5W/10 Amp @ 23°C Nominal Current (AC/DC) 6.3 Amp (VDE) 10 Amp (UL/CSA) Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Faston IP Protection Rating IP 40 Unit Weight 20g Factory Pack Qty 100 Datasheet Product Datasheet
-
0031.1622, FEC Shocksafe Fuseholder, 6.3 x 32 mm, Slotted Cap, 2.5 W / 10 A, Grey IP40, PLASTIC NUT (New 2024 version)
Free Aus Post Shipping for $300 SpendSchurter 0031.1622, FEC Shocksafe Fuseholder, 6.3 x 32 mm, Slotted Cap, 2.5 W / 10 A, Grey IP40, PLASTIC NUT (New 2024 version) Features Fuseholder with high rated power acceptance - Panel thickness up to 7mm Screw type fuse carrier Slotted Type Specification Schurter Part Number 0031.1622 Fuse Holder Size 6.3 x 32mm Nominal Voltage 600VAC/DC Rated Power 2.5W/10 Amp @ 23°C Nominal Current (AC/DC) 16 Amp (VDE) 30 Amp (UL/CSA) Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Faston IP Protection Rating IP 40 Unit Weight 20g Factory Pack Qty 100 Datasheet Product Datasheet
-
0031.1681, Shocksafe Fuseholder, 6.3 x 32 mm or 5 x 20mm, Slotted Cap, 2.5 W / 10 A, IP40
Free Aus Post Shipping for $300 SpendSchurter 0031.1681, Shocksafe Fuseholder, 6.3 x 32 mm or 5 x 20mm, Slotted Cap, 2.5 W / 10 A, IP40 Features Fuseholder with high rated power acceptance - Panel thickness up to 7mm Screw type fuse carrier Slotted Type Specification Schurter Part Number 0031.1681 Fuse Holder Size 6.3 x 32mm or 5 x 20mm Nominal Voltage 600VAC/DC Rated Power 5W/10 Amp @ 23°C Nominal Current (AC/DC) 10 Amp (VDE) 14 Amp (UL/CSA) Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Faston IP Protection Rating IP 40 Unit Weight 20g Factory Pack Qty 100 Datasheet Product Datasheet
-
0031.1680, Shocksafe Fuseholder, 6.3 x 32 mm, Slotted Cap, 5 W / 20 A, Grey IP40
Free Aus Post Shipping for $300 SpendSchurter 0031.1680, Shocksafe Fuseholder, 6.3 x 32 mm, Slotted Cap, 5 W / 20 A, Grey Features Fuseholder with high rated power acceptance - Panel thickness up to 7mm Screw type fuse carrier Slotted Type Specification Schurter Part Number 0031.1680 Fuse Holder Size 6.3 x 32mm Nominal Voltage 600VAC/DC Rated Power 5W/20 Amp @ 23°C Nominal Current (AC/DC) 16 Amp (VDE) 30 Amp (UL/CSA) Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Faston IP Protection Rating IP 40 Unit Weight 20g Factory Pack Qty 100 Datasheet Product Datasheet
-
3101.0110 FPG1, Fuse Holder FPG1 Pnl Mnt IP67
Free Aus Post Shipping for $300 SpendSchurter 3101.0110 FPG1, Fuse Holder FPG1 Pnl Mnt IP67 Features Fuseholder with high rated power acceptance - Panel thickness up to 6mm Screw type fuse carrier Specification Schurter Part Number 3101.0110 Fuse Holder Size 5 x 20mm Nominal Voltage 250VAC/500V (UL) Rated Power 4W/16 Amp @ 23°C Nominal Current (AC/DC) 10 Amp (VDE) 16 Amp (UL/CSA) Tested Breaking Capacity N/A Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Terminals IP Protection Rating IP 67 Unit Weight 30g Factory Pack Qty 10 Datasheet Product Datasheet
-
3101.0050 FPG5, Fuse Holder FPG5 PCB Horiz Tool
Free Aus Post Shipping for $300 SpendFuse Holder FPG5 PCB Horiz Tool
-
3101.0040 FPG4, Fuse Holder FPG4 PCB Vert Tool
Free Aus Post Shipping for $300 SpendFuse Holder FPG4 PCB Vert Tool
-
3101.0035 FPG3, Fuse Holder FPG3 Pnl Mnt Slotted Cap/Fingergrip
Free Aus Post Shipping for $300 SpendFuse Holder FPG3 Pnl Mnt Slotted Cap/Fingergrip
-
3101.0003 FPG3, Fuse Holder FPG3 Pnl Mnt Tool
Free Aus Post Shipping for $300 SpendFuse Holder FPG3 Pnl Mnt Tool
-
3101.0025 FPG2, Fuse Holder FPG2 Pnl Mnt Slotted Cap/Fingergrip
Free Aus Post Shipping for $300 SpendFuse Holder FPG2 Pnl Mnt Slotted Cap/Fingergrip
-
3101.0015 FPG1, Fuse Holder FPG1 Pnl Mnt Slotted Cap/Fingergrip, IP40
Free Aus Post Shipping for $300 SpendSchurter 3101.0015 FPG1, Fuse Holder FPG1 Pnl Mnt Slotted Cap/Fingergrip Features Fuseholder with high rated power acceptance - Panel thickness up to 6mm Screw type fuse carrier Specification Schurter Part Number 3101.0015 Fuse Holder Size 5 x 20mm Nominal Voltage 250VAC/500V (UL) Rated Power 4W/16 Amp @ 23°C Nominal Current (AC/DC) 10 Amp (VDE) 16 Amp (UL/CSA) Tested Breaking Capacity N/A Dimensions 10.3 x 38mm Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Termination Terminals IP Protection Rating IP 40 Unit Weight 30g Factory Pack Qty 10 Datasheet Product Datasheet
