MT440-SSUDAAMNA, Multifunction Power Transducer, Class 0.5, 4 Wire, 600V L-N, 1/5/10Amp AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 2 Programmable analogue outputs, 1 relay output, RS485 & USB Comms

MT440-SSUDAAMNA, Multifunction Power Transducer, Class 0.5, 4 Wire, 600V L-N, 1/5/10Amp AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 2 Programmable analogue outputs, 1 relay output, RS485 & USB Comms

Product form
Free pickup in our shop(s)

3 pcs in stock

$995.00 $1,094.50 inclGST Excl. VAT

        SKU: FE-MT440 SSUDAAMNA

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

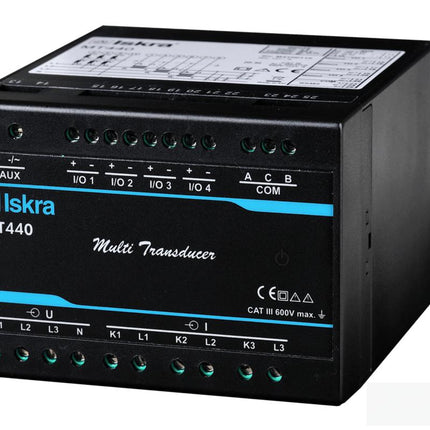

        Iskra Doo MT440-SSUDAAMNA, Multifunction Power Transducer, Class 0.5, 4 Wire, 600V L-N, 1/5/10Amp AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 2 Programmable analogue outputs, 1 relay output, RS485 & USB Comms

        • Class 0.5 (EN 60688)
        • USB Comms as standard
        • Up to 4 I/O Modules (analogue output, Multiple break point, non-linear characterstics
        • Automatic range of nominal current up to 12.5 A (Includes 5A/1A CT Input) and nominal voltage up to 600 V L-N
        • Adjustable tariff clock, display of electric energy consumption in optional currency
        • RMS values of currents and voltages
        • Measurements of active, reactive, apparent power and power factor
        • Measurements of energy in all 4 quadrants Average values of measurands per interval
        • Certified ship version available

        The Power Transducer is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

        Features :

        • Measurement of instantaneous values of more than 50 quantities (U, I, P, Q, S, PF, PA, f, f, MD, etc.).

        • Accuracy class 0.5

        • 32 Adjustable Alarms
        • Input frequency 50/60 Hz or 400 Hz
        • RS 232/RS485 communication up to 115,200 bit/s (Optional) or USB communication as standard
        • MODBUS RTU communication protocol
        • Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
        • Universal Supply 24-300VDC or 40-276VAC
        • Automatic range of nominal current up to 12.5 A and nominal voltage up to 600 V
        • User-friendly PC MiQen software
          Specification
          Iskra Doo Part Number MT440-SSUDAAMNA
          Functions 3 Phase Power Transducer
          Supply Voltage 24-300VDC or 40-276VAC
          Nominal Measurement Range 600V L-N, 1/5/10 Amp
          Maximum Measurement Range 600V L-N, 12.5 Amp
          Alarm 1 x Relay Output
          Tariff Input N/A
          Output(s) 2 x Analogue
          Accuracy Class 0.5 (I,U,F,PF,θ,THD) Class 1(Active), Class 2 (Reactive)
          Battery Backup N/A
          Real Time Clock 1min/month (30ppm)
          Isolation 3.5kV
          Comms USB (standard) RS232 2400-115200 b/s (RS485 Optional)
          Weight 370g
          Enclosure Material UL94,
          Factory Pack Qty 1
          EU Directives

          EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30
          Safety

          Protection Class II

          600V rms, installation category II

          300V rms, installation category III

          Pollution Degree 2 in compliance with SIST EN 61010-1:2002
          Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
          Enclosure Protection IP20


          Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes
          Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes
          Operating Temperature -20 →+70 °C



          Datasheet
