Solar Cartridge Semiconductor Fuses gPV
-
PV10-30A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 30Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-30A1000VDCgPV, GpV Solar Fuse 30Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
0090.0025, ASO 10.3x38 GpV Solar Fuse 25Amp, 1000VDC, 20kA, IEC 61730-2
Schurter 0090.0025 ASO 10.3x38mm GpV Fast Blow Solar Fuse 25Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0025 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 2371 kA²/s Nominal Current (DC) 25 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 2.98W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders
$18.03
$21.28 inclGST -
0090.0030, ASO 10.3x38 GpV Solar Fuse 30Amp, 1000VDC, 20kA, IEC 61730-2
Schurter 0090.0025 ASO 10.3x38mm GpV Fast Blow Solar Fuse 30Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0030 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 2679 kA²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 3.92W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders
$16.77
$19.79 inclGST -

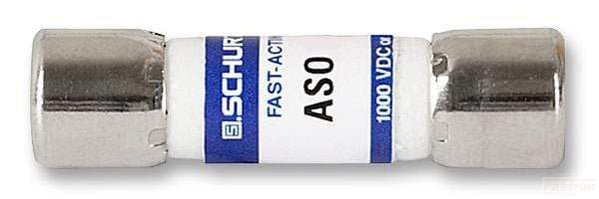

0090.0010, ASO 10.3x38 GpV Solar Fuse 10Amp, 1000VDC, 20kA, IEC 61730-2
Schurter 0090.0010 ASO 10.3x38mm GpV Fast Blow Solar Fuse 10Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0010 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 401 kA²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.76W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders
$14.31
$16.89 inclGST -
0090.0003, ASO 10.3x38 GpV Solar Fuse 3Amp, 1000VDC, 20kA, IEC 61730-2
Schurter 0090.0003 ASO 10.3x38mm GpV Class Fast Blow Solar Fuse 3Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0003 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 7882 A²/s Nominal Current (DC) 3 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.5W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders
$15.54
$18.34 inclGST -
PV10-20A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 20Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-20A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 20Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-25A1000VDCgPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 1300 A²/s Nominal Current (DC) 20 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-1A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 1Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-1A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 1Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-1A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-2A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 2Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-2A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 2Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-2A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-3A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 3Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-3A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 3Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-3A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-4A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 4Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-4A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 4Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-4A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -
PV10-5A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 5Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-5A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 5Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-5A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST -

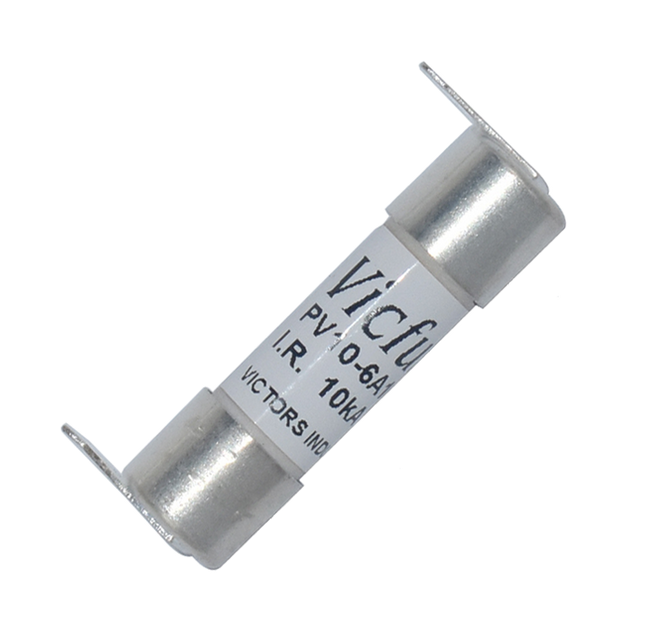

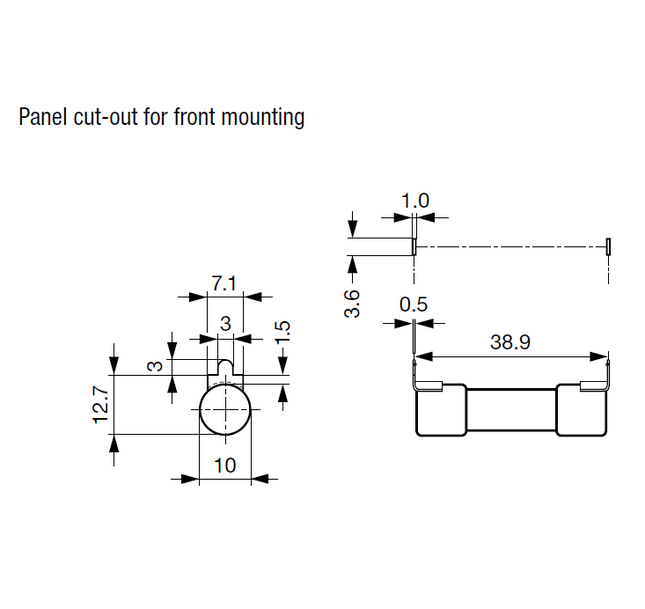

PV10-6A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 6Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
PV10-6A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 6Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number PV10-6A1000VDCP10gPV Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
$9.50
$11.21 inclGST
