Solid State Contactors

61 products

Filter

  • Thyro S 3S Series Three Phase SCR Controller 16 - 1500Amp 400VAC +10/-15%, Phase(VAR), Burst(TAKT) Fire, SWITCH Operating Modes

    View options

    Thyro S 3S Series Three Phase SCR Controller 16 - 1500Amp 400VAC +10/-15%, Phase(VAR), Burst(TAKT) Fire, SWITCH Operating Modes

    Out of stock

    Advanced Energy Thyro S 3S Series Three Phase SCR Power Controller, 16-1500Amp, 400VAC, Phase(VAR), Burst(TAKT), SWITCH Operating Modes. Compatible Replacement for Eurotherm Features 400VAC +10/-57% Line to Line Voltage, Current or Power Control Smallest footprint on the market Built in Fuses 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustments Synchronisation Function for Multiple TAKT Sync Applications Electrical Ovens, Kilns, or Furnaces Primary Control of Transformer Loads in Phase or Burst Fire mode Resistive Loads up to 6:1 Hot/Cold Ratio AC Soft Starter (VAR Mode Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Series Optional Features For HRL Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output For HRLP As above with Power Control Feedback Communication Options Standard Thyro Bus Module BasicBus Module   Specification Advanced Energy Part Number Thyro S 3S 400VAC or Thyro S 3S 500VAC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 3% at rated voltage Rated Operating Temperature 45°C Temperature Derating 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C SCR Configuration Single Phase AC Switch Control Modes Phase(VAR), Burst(TAKT), QUick TAKT(QTM), Hybrid(VT on request) Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max) Control Range 0-100% Options Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 400VAC +10/-15% (-57% with 24VDC Aux Supply) Soft Start Via PLC input Termination Style Screw Unit Weight 2.1 to 74kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installtion Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

    Read more

    Out of stock

    $2,154.91 - $10,967.22

    View options

  • Thyro S 2S Series 2 Leg 3 Phase Solid State Contactor 16 - 1500Amp 400VAC +10/-15% Burst(TAKT) Fire Mode, Economical Firing Mode

    View options

    Thyro S 2S Series 2 Leg 3 Phase Solid State Contactor 16 - 1500Amp 400VAC +10/-15% Burst(TAKT) Fire Mode, Economical Firing Mode

    Out of stock

    Advanced Energy Thyro S 2S Series 2 Leg 3 Phase Solid State Contactor, Burst(TAKT)Firing Mode Only. Compatible Replacement for Eurotherm Features 400VAC +10/-57% Line to Line Voltage, Current or Power Control Smallest footprint on the market Built in Fuses 3 Phase, 2 Leg Economical Burst Controller Firing Mode (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustment Synchronisation Function Applications Electrical Ovens, Kilns, or Furnaces Primary Control of Transformer Loads in Phase or Burst Fire mode Resistive Loads up to 6:1 Hot/Cold Ratio AC Soft Starter (Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Series Optional Features For HRL Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output For HRLP As above with Power Control Feedback Communication Options Standard Thyro Bus Module BasicBus Module   Specification Advanced Energy Part Number Thyro S 2S 400VAC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 3% at rated voltage Rated Operating Temperature 45°C Temperature Derating 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C SCR Configuration Single Phase AC Switch Control Modes 2 Leg Burst(TAKT) for low dissipation Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max) Control Range 0-100% Options Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 400VAC +10/-15% (-57% with 24VDC Aux Supply) Soft Start Via PLC input Termination Style Screw Unit Weight 2.1 to 74kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installtion Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

    Read more

    Out of stock

    $1,266.46 - $7,229.20

    View options

  • Last stock! Thyro Bus Module, 8 Channel programing interface for Thyro Series SCR Controllers-Communication Accessories-Advanced Energy-Fastron Electronics Store

    View options

    Thyro Bus Module, 4 Channel programing interface for Thyro Series SCR Controllers & Solid State Contactors

    1 pcs in stock

    Advanced Energy Thyro Series Communication Bus Module Optional Connection for up to 8 Power Controllers One Address per Module Access to controller setpoints, actual points, and parameters Transfer of setpoints as float number in physical units Control Function of LED's 24VDC 150mA Supply UL and CE Approved Thyro S, Thyro A, Thyro AX Communication Options : Ethernet (Inc Ethern/IP/Profinet/Modbus TCP Profibus DPV1 Modbus RTU DeviceNet Specification Advanced Energy Part Numbers Ethernet(2.000.000.846), ProfibusDPV1(2.000.000.841) ModbusRTU(2.000.000.842) DeviceNet(2.000.000.844) Functions Access to controller setpoints, actual points, and parametersTransfer of setpoints as float number in physical unitsControl Function of LED's Supply Voltage 24VDC Protocols EthernetIP, Profinet, Modbus TCP ProfibusDPV1, ModbusRTU, DeviceNet No. of Communicaton Ports Up to 8 Weight 750g Factory Pack Qty 1 Approvals CE, UL Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

    Read more

    2 pcs in stock

    $1,171.50
    $1,382.37 inclGST

    View options

  • Thyro S 1S Series Single Phase SCR Controller 16 - 1500Amp 500VAC Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes Thyro S 1S Series Single Phase SCR Controller 16 - 1500Amp 500VAC Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

    View options

    Thyro S 1S Series Single Phase SCR Controller 16 - 1500Amp 500VAC Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

    Out of stock

    Advanced Energy Thyro S 1S Series Single Phase SCR Power Controller, Phase(VAR), Burst(TAKT), Quick TAKT(QTM), SWITCH Operating Modes. Compatible Replacement for Erutotherm Features Optional Profinet,Profibus,Ethernet,Modbus Comms 500VAC +10/-57% Voltage, Current or Power Control Built in Fuse Smallest footprint on the market Single Phase Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes Quick TAKT Mode (QTM), VT Mode (on request) (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover Potentiometer Adjustment USB Configuration/Bias Setting Synchronisation Function (dASM Module Recommended) Applications Electrical Ovens, Kilns, or Furnaces Primary Control of Transformer Loads in Phase or Burst Fire mode AC Soft Starter (Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Series Optional Features For HRL Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output For HRLP As above with Power Control Feedback Communication Options Standard Thyro Bus Module BasicBus Module Specification Advanced Energy Part Number Thyro S 1S 500VAC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 3% at rated voltage Rated Operating Temperature 45°C Temperature Derating 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C SCR Configuration Single Phase AC Switch Control Modes Phase(VAR), Burst(TAKT), QUick TAKT(QTM), Hybrid(VT on request) Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max) Control Range 0-100% Options Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 500VAC +10/-15% (-57% with 24VDC Aux Supply) Soft Start Via PLC input Termination Style Screw Unit Weight 2.1 to 30kg Factory Pack Qty 1   Technical Docs Brochure User Manual Thyro A Series Quick Installtion Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

    Read more

    Out of stock

    $932.50 - $2,882.00

    View options

  • F135-4-240D Panel Mount 3 Phase Solid State Contactor, 240 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    F135-4-240D Panel Mount 3 Phase Solid State Contactor, 240 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $792.30
    $934.91 inclGST

  • F135-4-240A Panel Mount 3 Phase Solid State Contactor, 240 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    F135-4-240A Panel Mount 3 Phase Solid State Contactor, 240 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $792.30
    $934.91 inclGST

  • F135-4-180D Panel Mount 3 Phase Solid State Contactor, 180 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    F135-4-180D Panel Mount 3 Phase Solid State Contactor, 180 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $724.60
    $855.03 inclGST

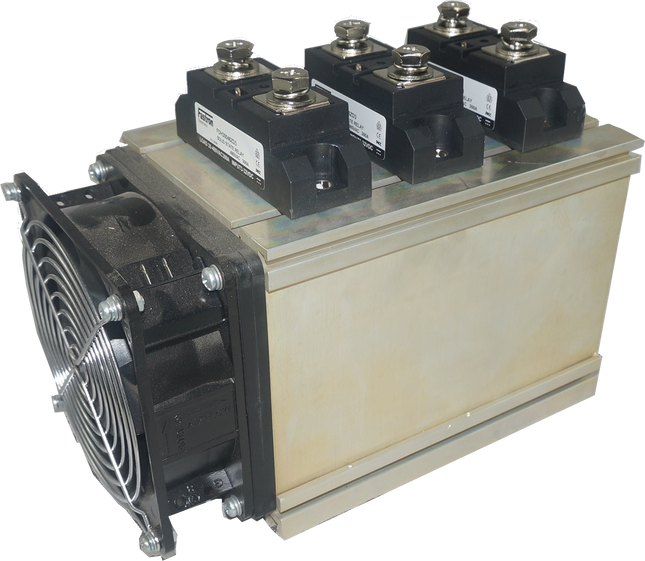

  • F135-4-180A Panel Mount 3 Phase Solid State Contactor, 180 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    F135-4-180A Panel Mount 3 Phase Solid State Contactor, 180 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $724.60
    $855.03 inclGST

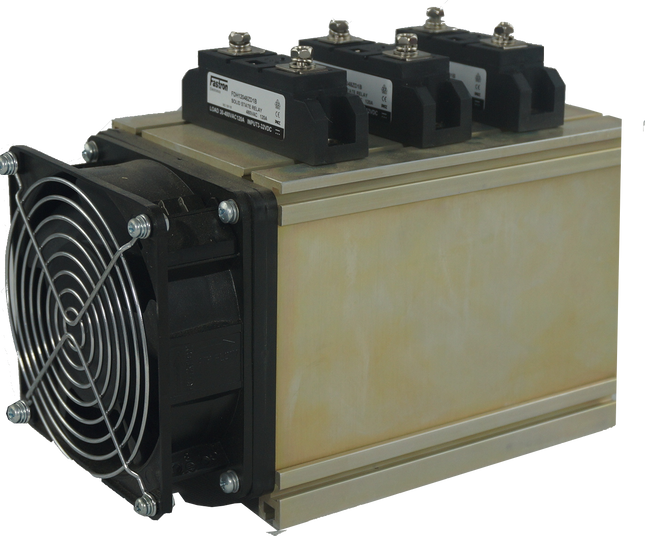

  • F135-4-120D Panel Mount 3 Phase Solid State Contactor, 120 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    F135-4-120D Panel Mount 3 Phase Solid State Contactor, 120 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $700.00
    $826.00 inclGST

  • F135-4-120A Panel Mount 3 Phase Solid State Contactor, 120 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    F135-4-120A Panel Mount 3 Phase Solid State Contactor, 120 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $700.00
    $826.00 inclGST

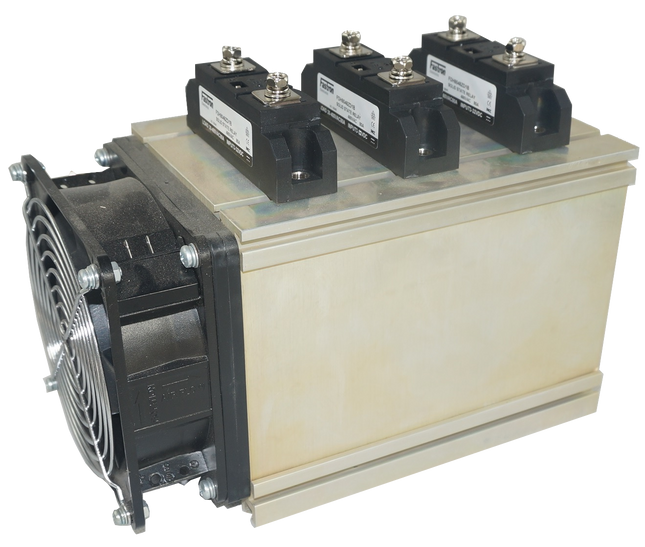

  • F135-4-90D Panel Mount 3 Phase Solid State Contactor, 90 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    F135-4-90D Panel Mount 3 Phase Solid State Contactor, 90 Amp per Phase, 70-480VAC Switching, 4-32VDC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $620.00
    $731.60 inclGST

  • F135-4-90A Panel Mount 3 Phase Solid State Contactor, 90 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    F135-4-90A Panel Mount 3 Phase Solid State Contactor, 90 Amp per Phase, 70-480VAC Switching, 90-280VAC Control Contactor Style Modules

    Out of stock

    F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

    Read more

    Out of stock

    $620.00
    $731.60 inclGST
