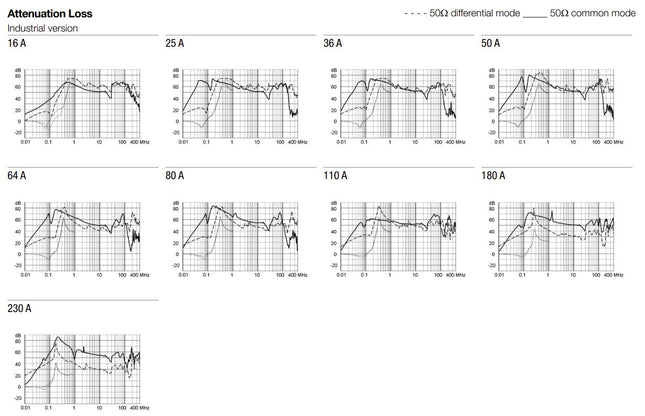

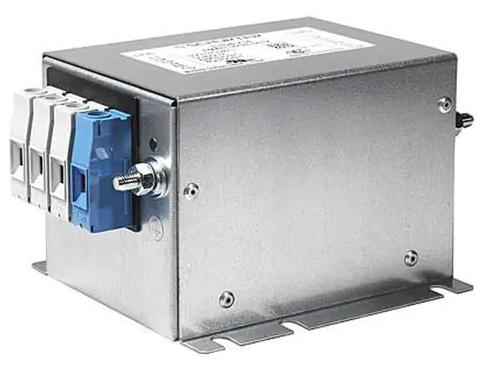

Schurter 3-108-713, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 50 Amp, FMAD NEO, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to IEC/UL 60950 Line filter suitable for low current Inverter such as PV or battery storage systems Specification Schurter Part Number 3-108-713 Rated Voltage 520V 3 Phase Rated Current 50A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current N/A Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 1.3kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet

Read more less

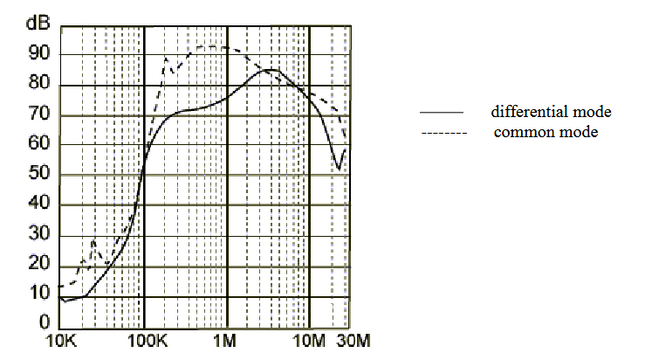

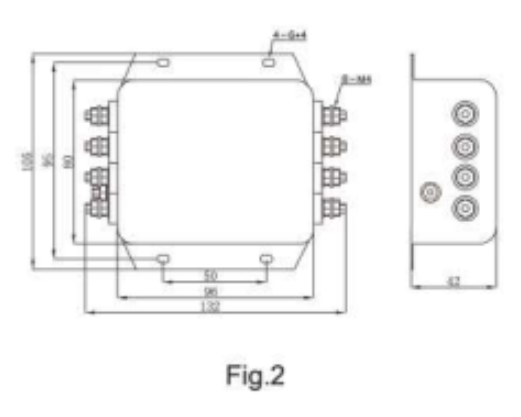

Fastron FEFN101-36-M, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 36 Amp, FMAD NEO, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to UL 1238, CSA22.2N).8, IEC/EN 60939 Line filter suitable for low current Inverter such as PV or battery storage systems   Specification Schurter Part Number FEFN101-36-T Rated Voltage 520V 3 Phase Rated Current 36Amp @ 40 Deg C Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current 0.5mA Mounting Panel Mount - Case FF Material Metal Termination Style Screw Weight 1.3kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

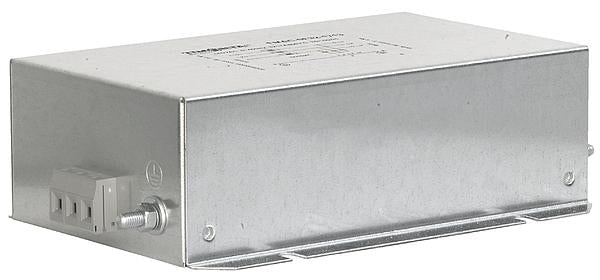

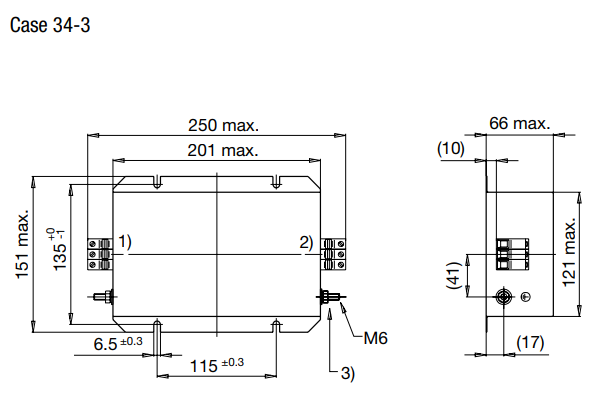

Schurter FMAC-0937-8010, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 80 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Specification Schurter Part Number FMAC-0937-8010 Rated Voltage 480V Rated Current 80A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 6.8kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter FMAC-0953-6410, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 64 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Specification Schurter Part Number FMAC-0953-6410 Rated Voltage 480V Rated Current 64A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter FMAC-0934-5010, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 50 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Specification Schurter Part Number FMAC-0934-5010 Rated Voltage 480V Rated Current 50A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Schurter FMAC-0934-3610, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 36 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Specification Schurter Part Number FMAC-0934-3610 Rated Voltage 480V Rated Current 25A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

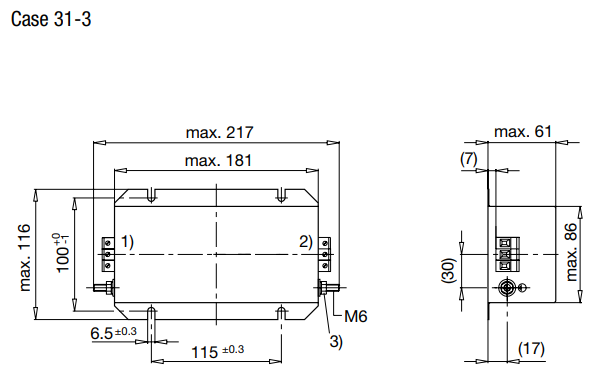

Schurter FMAC-0931-1610, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 16 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Schurter Part Number FMAC-0931-1610 Rated Voltage 480V Rated Current 16A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 31-1 Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less
