IP Rated Cordsets & Connector Sets
-
4312.0003, IP67 IEC Appliance Rewireable S15 Plug, Quick connect terminals 4.8 x 0.8 mm, Black/Blue
Schurter 4312.0003, IP67 IEC Appliance Rewireable S15 Plug, Quick connect terminals 4.8 x 0.8 mm, Black/Blue Features IP67 Rated S15 Plug acc to IEC 62368-1 120 °C pin Temperature Suitable for use in equipment according to IEC/UL 60320-1, CSA22.2 Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Specification Schurter Part Number 4312.0003 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) No of Pins 3 Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Colour Black/Blue Mounting Loose Material Thermoplastic, black, UL 94V-0 Termination Style S15 Weight 50g Factory Pack Qty 1 Protection Class From front side IP67 acc. to IEC 60529 Isolation 1.5kV L-N, L/N-PE VDE/UL/CSA/CE/ROHS/REACH Yes Datasheet Product Datasheet
$43.00
$50.74 inclGST -
4312.0010, IP67 IEC Appliance Rewireable S15 Plug, Quick connect terminals 4.8 x 0.8 mm, White/Blue
Schurter 4312.0010, IP67 IEC Appliance Rewireable S15 Plug, Quick connect terminals 4.8 x 0.8 mm, White/Blue Features IP67 Rated S15 Plug acc to IEC 62368-1 120 °C pin Temperature Suitable for use in equipment according to IEC/UL 60320-1, CSA22.2 Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Specification Schurter Part Number 4312.0010 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) No of Pins 3 Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Colour White/Blue Mounting Loose Material Thermoplastic, black, UL 94V-0 Termination Style S15 Weight 50g Factory Pack Qty 1 Protection Class From front side IP67 acc. to IEC 60529 Isolation 1.5kV L-N, L/N-PE VDE/UL/CSA/CE/ROHS/REACH Yes Datasheet Product Datasheet
$43.00
$50.74 inclGST -
4312.0004, IP67 IEC Appliance Plug Set 7 Socket S15, Screw-in Mounting Socket, Rewireable Plug, Quick connect terminals 4.8 x 0.8 mm, Black/Blue
Schurter 4312.0004, IP67 IEC Appliance Plug Set 7 Socket S15, Screw-in Mounting Socket, Rewireable Plug, Quick connect terminals 4.8 x 0.8 mm, Black/Blue Features IP67 Rated S15 Socket acc to IEC 62368-1 120 °C pin Temperature Suitable for use in equipment according to IEC/UL 60320-1, CSA22.2 Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 10A, Protection Class I Specification Schurter Part Number 4312.0004 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) No of Pins 3 Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Colour Black/Blue Mounting Loose Material Thermoplastic, black, UL 94V-0 Termination Style S15 Weight 70g Factory Pack Qty 1 Protection Class From front side IP67 acc. to IEC 60529 Isolation 1.5kV L-N, L/N-PE VDE/UL/CSA/CE/ROHS/REACH Yes Datasheet Product Datasheet
$65.90
$77.76 inclGST -

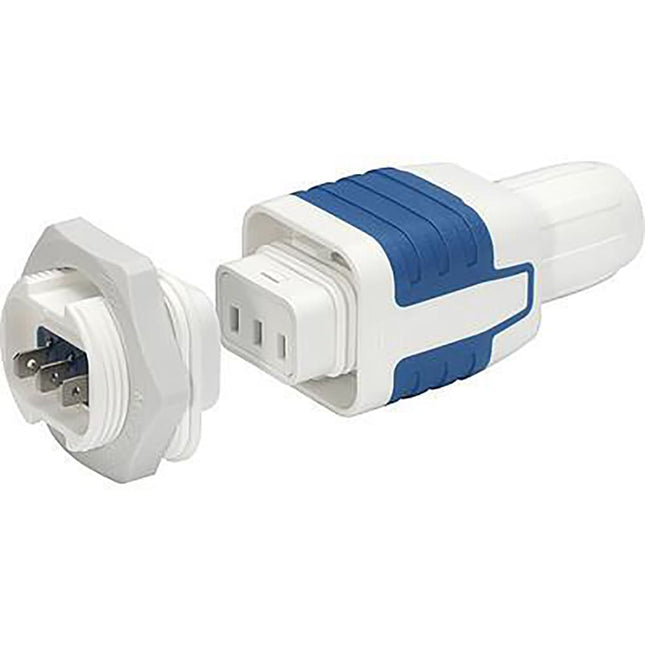

4312.0011, IP67 IEC Appliance Plug Set 7 Socket S15, Screw-in Mounting Socket, Rewireable Plug, Quick connect terminals 4.8 x 0.8 mm, White/Blue
Schurter 4312.0011, IP67 IEC Appliance Plug Set 7 Socket S15, Screw-in Mounting Socket, Rewireable Plug, Quick connect terminals 4.8 x 0.8 mm, White/Blue Features IP67 Rated S15 Socket acc to IEC 62368-1 120 °C pin Temperature Suitable for use in equipment according to IEC/UL 60320-1, CSA22.2 Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 10A, Protection Class I Specification Schurter Part Number 4312.0011 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) No of Pins 3 Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Colour White/Blue Mounting Loose Material Thermoplastic, black, UL 94V-0 Termination Style S15 Weight 70g Factory Pack Qty 1 Protection Class From front side IP67 acc. to IEC 60529 Isolation 1.5kV L-N, L/N-PE VDE/UL/CSA/CE/ROHS/REACH Yes Datasheet Product Datasheet
$61.23
$72.25 inclGST
