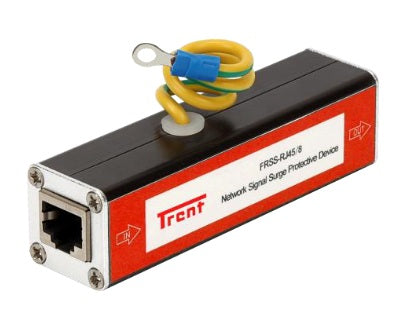

FRSS-RJ45/8AL, Surge Protection Device For RJ45 1GB/s Ethernet & POE Devices 3 Pole , Un = 5VDC(Line)/48VDC(POE), Uc = 45VDC, 5kA per line @ Imax(8/20uS)(KA), -40 to +70 Deg C Operation, Nominal Discharge 5kA, Maximum Discharge 10kA   Application IT Systems Coarse and Fine Protection Industrial Control System Measurement System Device Control RJ45 Ethernet Systems POE Compliant 1000Mb/s Compliant   Specifications Trent part number FRSS-RJ45/8AL Nominal Voltage (Un) 5VDC (Line) / 48VDC (POE) Maximum Permissable Voltage (Uc) 45VDC No of Poles 3 Location of use IT Communications Line/signals 1000Mb/s POE Supported Protection modes TX+/TX-/RX+/RX-/PE Additional Remote Contacts No Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS) Nominal, 10kA (8/20uS) Max  Nominal Internal protection and safety Thermal disconnector in each MOV Weight 150g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

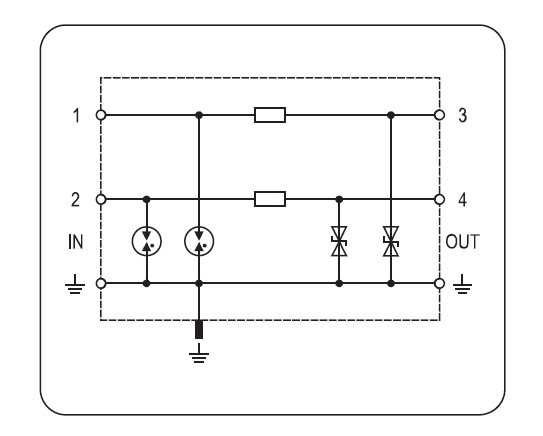

FBS RK SC 48, 48VDC 2 Pole Surge Protection Device for Unbalanced IT Systems, 5kA, LPZ 0 -2 or higher   Application Unbalanced IT Systems Coarse and FIne Protection Industrial Control System Measurement System Device Control   Specifications Trent part number FBS RK SC 48 Nominal Voltage 48VDC No of Poles 2 Category IEC / EN / VDE LPZ 0 -2 or higher Location of use Unbalanced IT Communications Line/signals Protection modes L1+/L2+/GND Additional Remote Contacts N/A Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 50g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

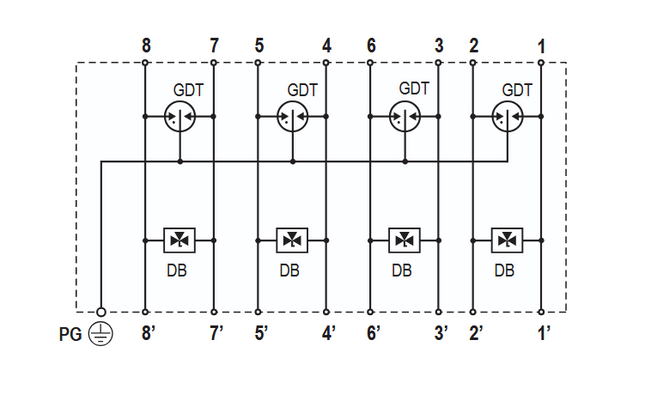

RayDat-NET-6-POE-G29-00-041, Surge Protectioon Device for Catagory 6 Networks, In = 10kA, Iimp = 1kA, 48VDC Nominal, Poe 1000Mb/s Specifications   Raycap part number RayDat-NET-6-POE-G29-00-041 Nominal Voltage 50VDC (for 48VDC systems) No of Poles 4 Category IEC / EN / VDE Type D1 • C1 • C2 • C3 Location of use Category 6 LAN Networks 1000mb/s POE Protection modes Additional Remote Contacts NO Protective element Diode Block + GDT No Fault/Fault Indication N/A Surge discharge rating D1 Impulse Current (10/350 μs) 1kA, C2 Total Discharge Current (8/20 μs) 10kA Internal protection and safety Safety Ground Standards IEC/EN 61643-21, UL 497B 4th Edition   Datasheet Product Datashee GDT/MOV/TVS Tester SPD Tester

Read more less

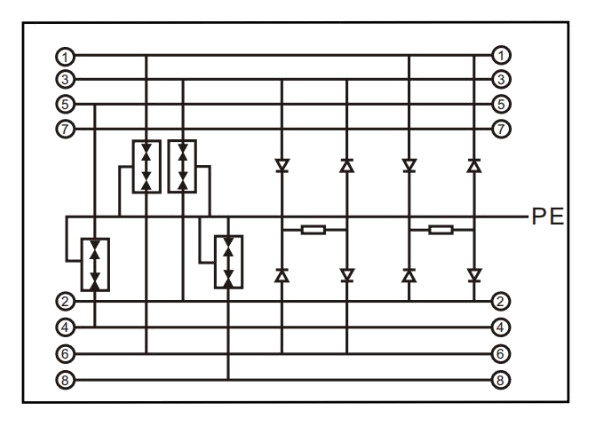

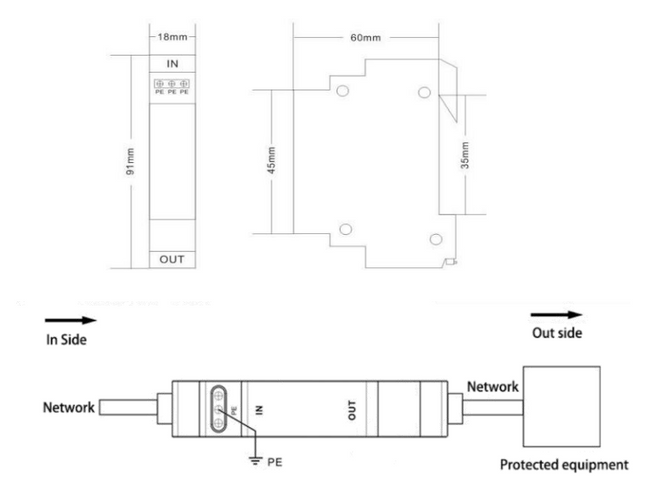

FRSS-RJ45/8D, Surge Protection Device For RJ45 1Gb/s Ethernet & POE Devices 3 Pole , Un = 5VDC(Line)/48VDC(POE), Uc = 45VDC, 5kA per line @ Imax(8/20uS)(KA), -40 to +80 Deg C Operation, Nominal Discharge 5kA, Maximum Discharge 10kA, Slim 18mm Wide Module   Application IT Systems Coarse and Fine Protection Industrial Control System Measurement System RJ45 Ethernet Systems POE Compliant 1000Mb/s Compliant   Specifications Trent part number FRSS-RJ45/8D Nominal Voltage (Un) 5VDC (Line) / 48VDC (POE) Maximum Permissable Voltage (Uc) 45VDC No of Poles 3 Location of use IT Communications Line/signals 1000Mb/s POE supported Protection modes TX+/TX-/RX+/RX-/PE Additional Remote Contacts No Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS) Nominal, 10kA (8/20uS) Max  Nominal Internal protection and safety Thermal disconnector in each MOV Weight 150g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

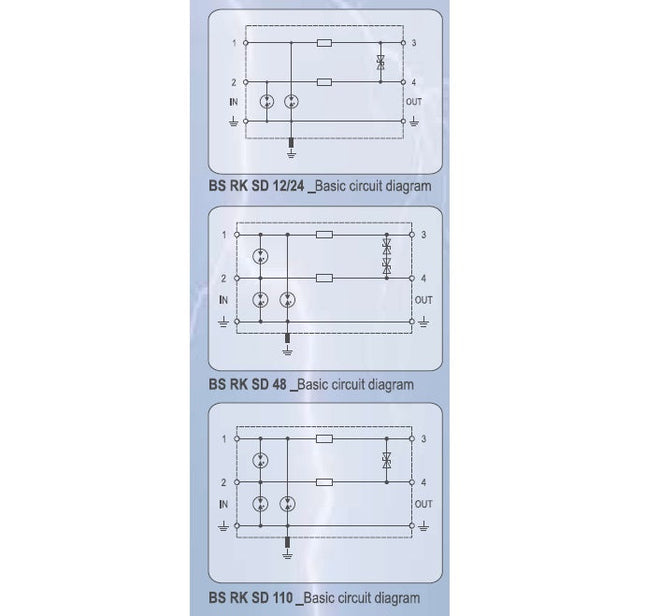

FBS RK SD 12, 12VDC 2 Pole Surge Protection Device for Unbalanced IT Systems, 5kA, LPZ 0 -2 or higher   Application Balanced IT Systems Coarse and FIne Protection Industrial Control System Measurement System Device Control   Specifications Trent part number FBS RK SD 12 Nominal Voltage 12VDC No of Poles 2 Category IEC / EN / VDE LPZ 0 -2 or higher Location of use Balanced IT Communications Line/signals Protection modes L1+/L2+/GND Additional Remote Contacts N/A Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 50g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBS RK SC 24, 24VDC 2 Pole Surge Protection Device for Unbalanced IT Systems, 5kA, LPZ 0 -2 or higher   Application Unbalanced  IT Systems Coarse and FIne Protection Industrial Control System Measurement System Device Control   Specifications Trent part number FBS RK SC 24 Nominal Voltage 24VDC No of Poles 2 Category IEC / EN / VDE LPZ 0 -2 or higher Location of use Unbalanced IT Communications Line/signals Protection modes L1+/L2+/GND Additional Remote Contacts N/A Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 50g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

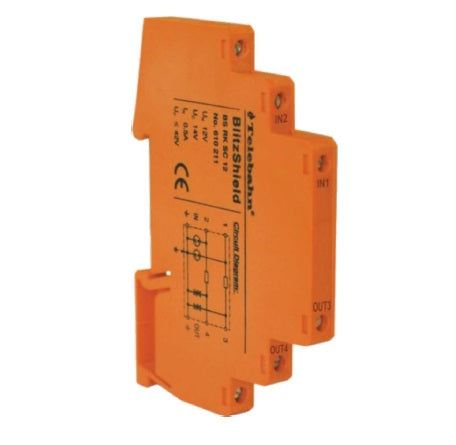

FBS RK SC 12, 12VDC 2 Pole Surge Protection Device for UnUnbalanced IT Systems, 5kA, LPZ 0 -2 or higher   Application Unbalanced IT Systems Coarse and FIne Protection Industrial Control System Measurement System Device Control   Specifications Trent part number FBS RK SC 12 Nominal Voltage 12VDC No of Poles 2 Category IEC / EN / VDE LPZ 0 -2 or higher Location of use Unbalanced IT Communications Line/signals Protection modes L1+/L2+/GND Additional Remote Contacts N/A Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 50g Standards IEC61643-21; GB 18802.21 ; YD/T 1542   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
