Single Thyristor(SCR) Modules
-

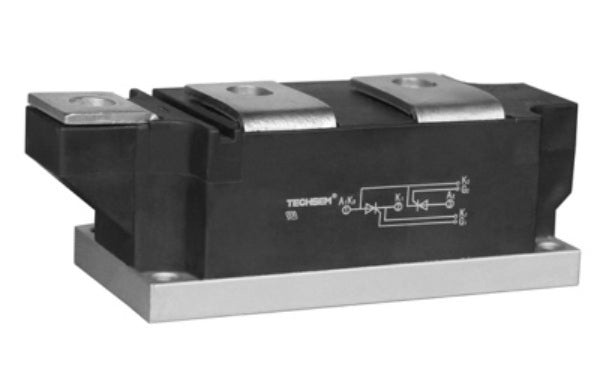

MT600-16-416F3, Single Thyristor(SCR) Module in Dual Package, 600 Amp, 1600V, 50mm Base, Pins 2 and 3 Connecting
Techsem MT600-16-416F3, Single Thyristor(SCR) Module in Dual Package, 600 Amp, 1600V, 50mm Base, Pins 2 and 3 Connecting Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MT600-16-416F3 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 125 Deg C 600 Amp Package Size W:60mm L:150mm D:52mm Itsm 17.5 kA VF(to) 0.80V Tj(max) 125°C rF 0.2mΩ Terminals M8 Bolt Hole Centres 112mm x 48mm (M6) Gate Terminals N/A R th(j-c) 0.065°C/W R th(c-h) 0.024°C/W Weight 1490g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Replaces Techsem TZ600N16K or IXYS MCO600-16io1
$459.00
$541.62 inclGST -
MT600-16-F432F2, Single Thyristor Module, 600 Amp, 1600V, 70mm Package
Techsem MT600-16-F432F2, Single Thyristor Module, 600 Amp, 1600V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-22-F432F2 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600Amp Package Size W:70mm L:176mm D:90mm Itsm 14 kA Tj(max) 125°C I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion
$379.00
$447.22 inclGST -
SKET 400/18E, 400 Amp, 1800V, Single Thyristor Module, 50mm Package
Semikron SKET 400/18E, 400 Amp, 1800V, Single Thyristor Module, 50mm Package Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKET 400/18E Vrrm 1800V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 400 Amp Package Size W:50mm L:101mm D:52mm Itsm 14 kA VF(to) 0.75V Tj(max) 135°C rF 0.3mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.09°C/W R th(c-h) 0.02°C/W Weight 840g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet
$232.00
$273.76 inclGST -
MT600-25-F432F2, Single Thyristor Module, 600 Amp, 2500V, 70mm Package
Techsem MT600-25-F432F2, Single Thyristor Module, 600 Amp, 2500V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-25-F432F2 Vrrm 2500V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600 Amp Package Size W:70mm L:176mm D:90mm Itsm 15 kA Tj(max) 125°C Terminals M10 Screw Hole Centers 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion
$449.00
$529.82 inclGST -
MT600-22-F432F2, Single Thyristor Module, 600 Amp, 2200V, 70mm Package
Techsem MT600-22-F432F2, Single Thyristor Module, 600 Amp, 2200V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-22-F432F2 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600Amp Package Size W:70mm L:176mm D:90mm Itsm 14 kA Tj(max) 125°C I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion
$398.00
$469.64 inclGST -
MT600-16-433F2 (Obsolete), Single Thyristor(SCR) Module, 600 Amp, 1600V, 50mm Base
Techsem MT600-16-433F2 (Obsolete), Single Thyristor(SCR) Module, 600 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MT600-16-433F2 Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 150 Deg C 500 Amp Package Size W:50mm L:101mm D:52mm Itsm 16 kA VF(to) 0.80V Tj(max) 125°C rF 0.28mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.054°C/W R th(c-h) 0.024°C/W Weight 765g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives Replaces Techsem TZ600N16K or IXYS MCO600-16io1
$249.00
$293.82 inclGST -

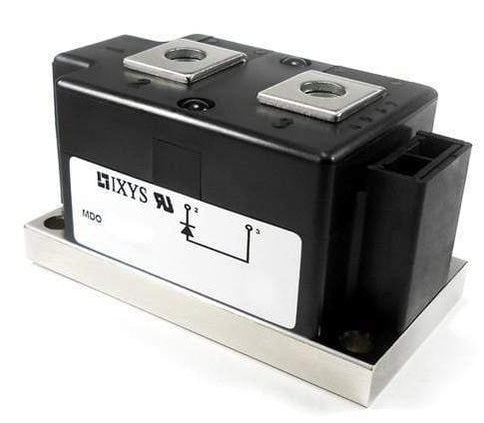

MCO600-22io1, Single Thyristor Module, 600 Amp, 2200V
Westcode-IXYS-Littlefuse MCO600-22io1, Single Thyristor Module, 600 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCO600-22io1 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 600 Amp Package Size W:50mm L:101mm D:52mm Itsm 15 kA VF(to) 0.81V Tj(max) 125°C rF 0.4mΩ I(gt) @ 25 Deg C 300mA Terminals M8 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 650g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters Long Beach USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement
$371.00
$437.78 inclGST -
MT800-24-432F2, Single Thyristor Module, 80 Amp, 2200V
Techsem MT800-24-432F2, Single Thyristor Module, 80 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT800-24-432F2 Vrrm 1800V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 800 Amp Package Size W:70mm L:146mm D:90mm Itsm 22 kA VF(to) 0.85V Tj(max) 125°C rF 0.17mΩ I(gt) @ 25 Deg C 200mA Terminals M12 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.042°C/W R th(c-h) 0.02°C/W Weight 2.8kg Mounting Torque 6 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters Techsem Datasheet Product Datasheet Alternatives tz860n16kof Contact Us for Possible Replacement
$684.00
$807.12 inclGST -
MCO801-18io1, Single Thyristor Module, 801 Amp, 1800V
Westcode-IXYS-Littlefuse MCO801-18io1, Single Thyristor Module, 801 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCO801-18io1 Vrrm 1800V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 800 Amp Package Size W:70mm L:146mm D:90mm Itsm 23.35 kA VF(to) 0.80V Tj(max) 125°C rF 0.24mΩ I(gt) @ 25 Deg C 250mA Terminals M12 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.042°C/W R th(c-h) 0.01°C/W Weight 2.8kg Mounting Torque 6 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters Long Beach USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement
$709.00
$836.62 inclGST -

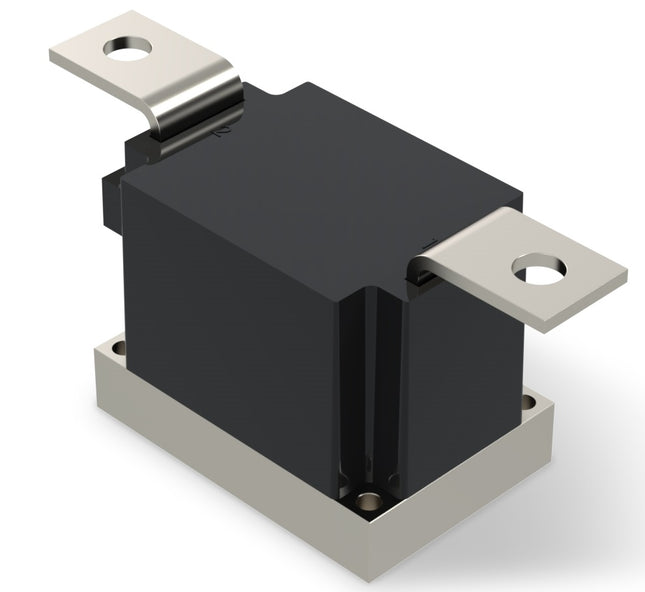

MCO741-22io1, Single Thyristor Module, 741 Amp, 2200V
Westcode-IXYS-Littlefuse MCO741-22io1, Single Thyristor Module, 741 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCO741-22io1 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 600 Amp Package Size W:70mm L:146mm D:90mm Itsm 29 kA VF(to) 0.85V Tj(max) 125°C rF 0.277mΩ I(gt) @ 25 Deg C 250mA Terminals M12 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.042°C/W R th(c-h) 0.01°C/W Weight 2.8kg Mounting Torque 6 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters Long Beach USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement
$679.00
$801.22 inclGST -
SG25AA40, 25A, 400V SCR Module
Sanrex SG25AA40, 25A, 400V SCR Module Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control DC Power Supply Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Sanrex Part Number SG25AA40 Vrrm voltage 400V Device Configuration Single SCR Module DC Output @ 102 Deg C 25 Amp Package Size W:23mm L:39mm D:22.5mm Itsm 450 A VTM 1.4V Tj(max) 125°C rF Not Published Reverse Recovery Time N/A Terminals Fastron Hole Centres 30mm (M4) Gate Terminals N/A R th(j-c) 1.6°C/W R th(c-h) Not Published Weight 23g Isolation 2.5kV Factory Pack Qty 5 Certification N/A Sanrex Headquarters Japan Datasheet Product Datasheet
$35.00
$41.30 inclGST -

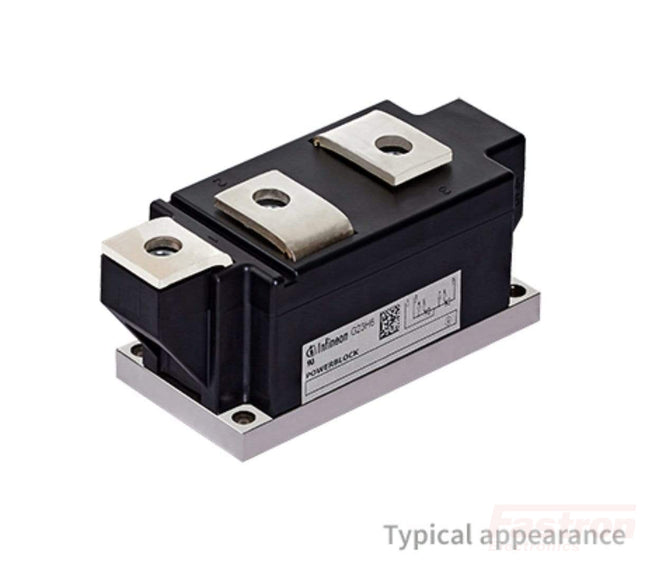

TZ425N16KOF, Single Thyristor Module, 425 Amp, 1600V
Infineon TZ425N16KOF Single Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TZ425N16KOF Vrrm 1600V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 425 Amp Package Size W:50mm L:101mm D:52mm Itsm 14.5 kA VF(to) 0.9V Tj(max) 125°C rF 0.3mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 900g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement
$351.00
$414.18 inclGST
