AC Surge Protection Device (SPD) for AC
-

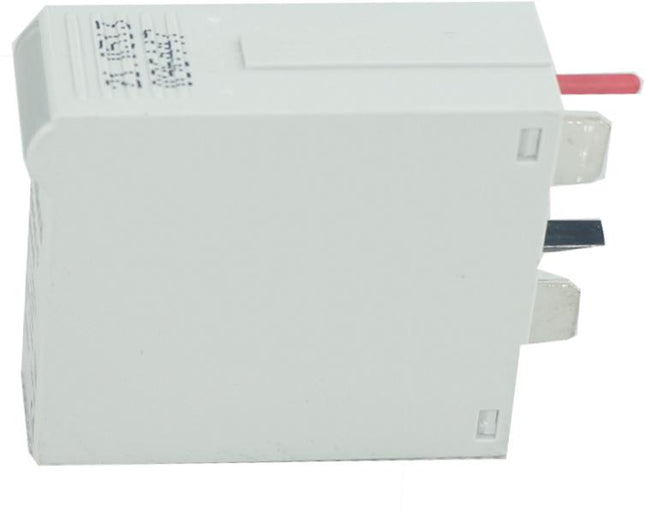

Module ISPRO C 40/275, Replacement Cartridge for Surge Protection Device (SPD) 1 Pole 40kA, 275VAC, Class II / Type 2 / C
Iskra Module ISPRO C 40/275, Replacement Cartridge for Surge Protection Device (SPD) 1 Pole 40kA, 275VAC, Class II / Type 2 / C Specifications Iskra Doo part number 786.600.196.000 Nominal Voltage 275VAC No of Poles 1 Category IEC / EN / VDE Class II / Type 2 / C Location of use In ISPRO Products Protection modes L/N-PE Protective element MOV + GDT Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$27.00
$31.86 inclGST -

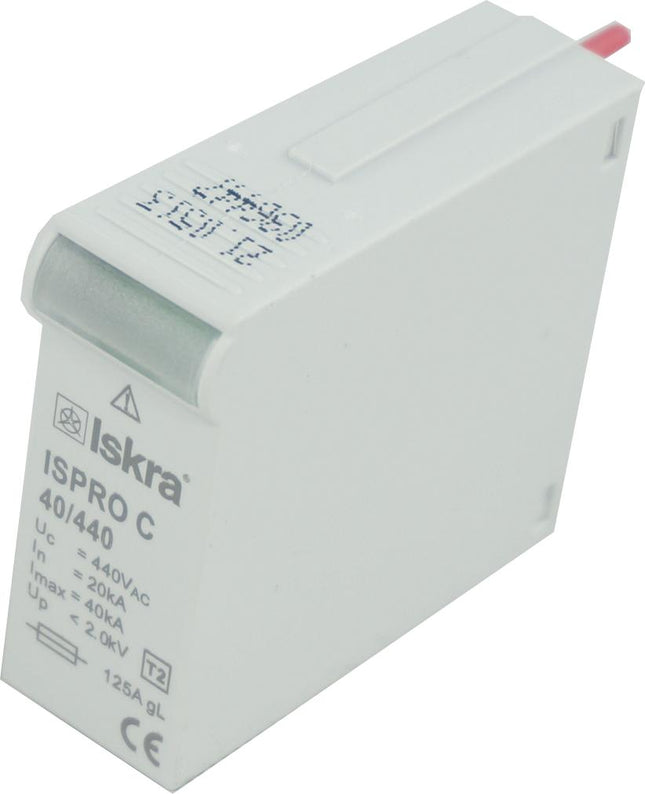

Module ISPRO C 40/440, Replacement Cartridge for Surge Protection Device (SPD) 1 Pole 40kA, 440VAC
Iskra Module ISPRO C 40/440, Replacement Cartridge for Surge Protection Device (SPD) 1 Pole 40kA, 440VAC, Class II / Type 2 / C Specifications Iskra Doo part number Module ISPRO C 40/440 Nominal Voltage 440VAC No of Poles 1 Category IEC / EN / VDE Class II / Type 2 / C Location of use In ISPRO Products Protection modes L/N-PE Protective element MOV + GDT Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$27.00
$31.86 inclGST -

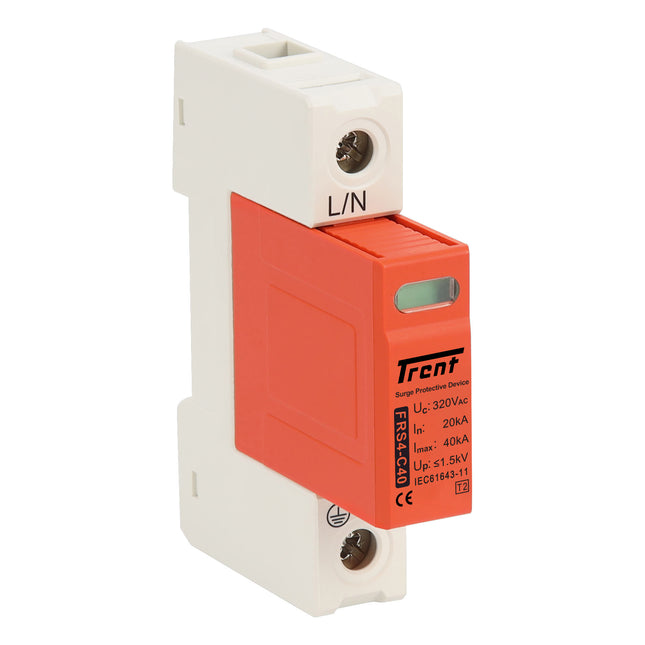

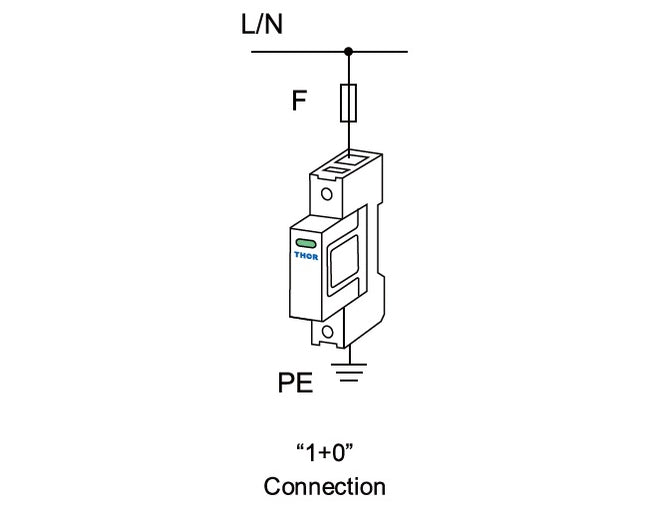

FRS4-C40 320V 1P (1+0) (R), Class II/Type 2, AC Surge Protection Device (SPD), 1 Pole In = 20/50kA L-N, L/N-PE, Un = 230VAC, Uc = 320VAC, DIN Rail Mount, High Energy MOV Type, with Remote Contacts
Trent FRS4-C40 320V 1P (1+0) (R), Class II/Type 2, AC Surge Protection Device (SPD), 1 Pole In = 20/50kA L-N, L/N-PE, Un = 230VAC, Uc = 320VAC, DIN Rail Mount, High Energy MOV Type, with Remote Contacts Specifications Trent part number FRS4-C40 230V 1P (1+0) (R) Nominal Voltage (Un) 230VAC Maximum Operating Voltage (Uc( 320VAC Voltage Protection Level (Up) <1.5kV No of Poles 1 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L/N-PE 320VAC Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$39.00
$46.02 inclGST -

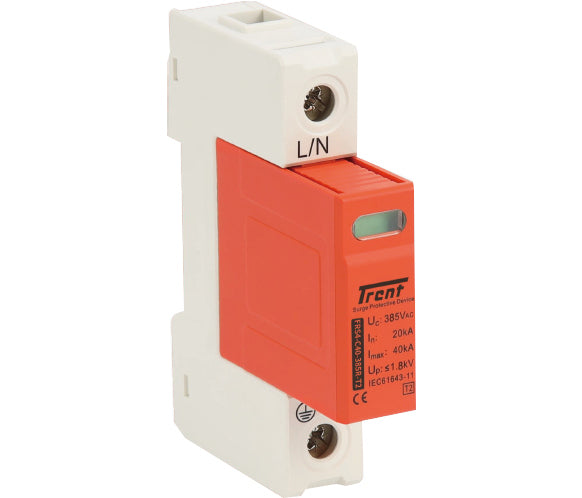

FRS4-C40 385V 1P (1+0) (R), Class II/Type 2, AC Surge Protection Device (SPD), Un = 320VAC, Uc = 385VAC, 1 Pole In = 20/50kA L-N, L/N-PE, DIN Rail Mount, High Energy MOV Type, with Remote Contacts
Free Aus Post Shipping for $300 SpendTrent FRS4-C40 385V 1P (1+0) (R), Class II/Type 2, AC Surge Protection Device (SPD), Un = 320VAC, Uc = 385VAC, 1 Pole In = 20/50kA L-N, L/N-PE, DIN Rail Mount, High Energy MOV Type, with Remote Contacts Specifications Trent part number FRS4-C40 385V 1P (1+0) (R) Nominal Voltage (Un) 320VAC Maximum Operating Voltage (Uc( 385VAC Voltage Protection Level (Up) <1.5kV No of Poles 1 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L/N-PE 385VAC Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
-
ISPRO AQ 40/275, Class II / Type 2 / A Surge Protection Device (SPD) 40kA, 275VAC, Stud Mount with PE Wire, for indirect lightning strikes
Free Aus Post Shipping for $300 SpendClass II / Type 2 / A Surge Protection Device (SPD) 40kA, 275VAC, Stud Mount with PE wire, for indirect lightning strikes Specifications Iskra Doo part number AQ 40/275 Category IEC / EN / VDE Class II / Type 2 / A Location of use Overhead power lines Protection modes L/N-PE Protective element MOV Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector Standards IEC/EN 61643-11 Datasheet Product Datasheet
-
ISPRO AQ 40/440, Class II / Type 2 / A Surge Protection Device (SPD) 40kA, 440VAC, Stud Mount with PE Wire, for indirect lightning strikes
Free Aus Post Shipping for $300 SpendClass II / Type 2 / A Surge Protection Device (SPD) 40kA, 440VAC, 1 Pole, Stud Mount with PE wire, for indirect lightning strikes Specifications Iskra Doo part number AQ 40/460 Nominal Voltage 440VAC Category IEC / EN / VDE Class II / Type 2 / A Location of use Overhead power lines Protection modes L/N-PE Protective element MOV Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector Standards IEC/EN 61643-11 Datasheet Product Datasheet
-

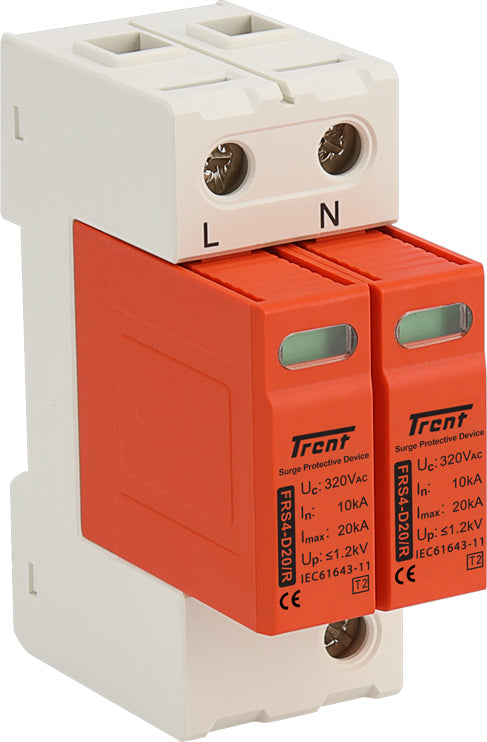

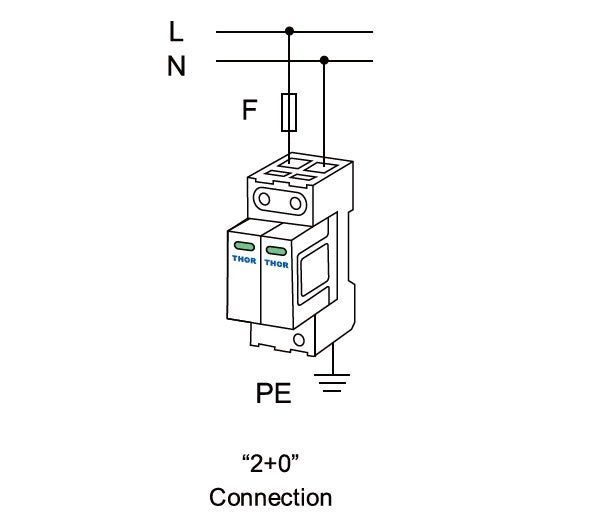

FRS4-D20 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 10/20kA L-N, 230VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type
Trent FRS4-D20 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 10/20kA L-N, 230VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type Specifications Trent part number FRS4-D20 320V 2P (2+0) (R) Nominal Voltage (Un) 230VAC Maximum Operating Voltage (Uc) 320VAC Voltage Protection Level (Up) <1.2kV No of Poles 2 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 20kA(8/20us) L/N-PE 320VAC Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$45.00
$53.10 inclGST -
ISPRO CR 40/275, Class II / Type 2 / C, Modular Surge Protection Device (SPD) 1 Pole 40kA, 275VAC, DIN Rail Mount. For Sub Distribution Boards
Iskra ISPRO CR 40/275, Class II / Type 2 / C, Modular Surge Protection Device (SPD) 1 Pole 40kA,440VAC, DIN Rail Mount. For Sub Distribution Boards Specifications Iskra Doo part number ISPRO CR 40/275 Nominal Voltage 275VAC No of Poles 1 (modular, stackable) Category IEC / EN / VDE Class II / Type 2 / C Location of use Sub Distribution Boards Additional Remote Contacts YES Protection modes L/N-PE Protective element MOV + GDT Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$48.00
$56.64 inclGST -
ISPRO CR 40/440, Class II / Type 2 / C, Modular Surge Protection Device (SPD) with Remote Contacts, 1 Pole 40kA, 440VAC, DIN Rail Mount. For Sub Distribution Boards
Iskra ISPRO CR 40/440, Class II / Type 2 / C, Modular Surge Protection Device (SPD) with Remote Contacts, 1 Pole 40kA, 440VAC, DIN Rail Mount. For Sub Distribution Boards Specifications Iskra Doo part number ISPRO CR 40/440 Nominal Voltage 440VAC No of Poles 1 (modular, stackable) Category IEC / EN / VDE Class II / Type 2 / C Location of use Sub Distribution Boards Additional Remote Contacts YES Protection modes L/N-PE Protective element MOV Surge discharge rating Imax up to 40 kA Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$48.00
$56.64 inclGST -
T2 Protec T2-350-P, MODULE ONLY FOR SPD T2 Protec T2-350-3+0
Protec Protec T2 Protec T2-350-P, MODULE ONLY FOR SPD T2 Protec T2-350-3+0 Specifications Raycap part number T2 Protec T2-350-P (MODULE ONLY) Nominal Voltage Un 277VAC systems (for Uc = 350VAC ) No of Poles 3 Category IEC / EN / VDE Type 2/Open Type 1CA SPD Listed Location of use Sub Distribution Boards Protection modes L-PEN Additional Remote Contacts YES Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 20kA(8/20uS) 50kA Max Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$49.50
$58.41 inclGST -
FRS4-C40 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 20/50kA L-N, 230VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type
Free Aus Post Shipping for $300 SpendTrent FRS4-C40 320V 2P (2+0) (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 2 Pole In = 20/50kA L-N, Un = 230VAC, Uc = 320VAC, DIN Rail Mount, L/N-PE, High Energy MOV Type Specifications Trent part number FRS4-C40 320V 2P (2+0) (R) Nominal Voltage (Un) 230VAC Maximum Operating Voltage (Uc) 320VAC Voltage Protection Level (Up) <1.5kV No of Poles 2 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L/N-PE 320VAC Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
-
FRS4-C40 3P+N 320V (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole In = 20/50kA L-N ,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type
Trent FRS4-C40 3P+N 320V (R), Class II/Type 2, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole In = 20/50kA L-N, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type Specifications Trent part number FRS4-C40 3P+N 320V (R) Nominal Voltage (Un) 230VAC L-N, 400VAC L-L Maximum Operating Voltage (Uc) 320VAC L-N Voltage Protection Level (Up) <1.5kV No of Poles 3 + 1 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 50kA(8/20us) L-N 320VAC / 65kA(8/20us) 255VAC N-PE Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11 Datasheet Product Datasheet
$109.00
$128.62 inclGST
