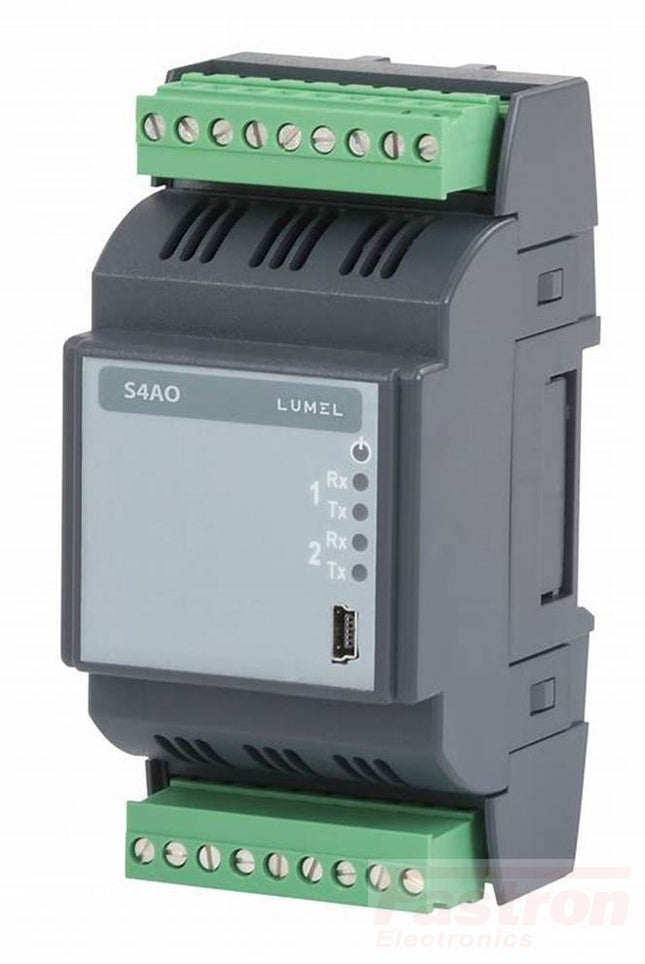

Lumel S4AO-1200E0 RS485 Quad Analogue Output Module
4 Analogue outputs in a single module
RS485 Comms to 4-20mA
Extend Analogue Outputs on Mini PLC's
0.05% Resolution
Din Rail Mount
CE Marking
Specification
Lumel Part Number
S4AO-1200E0
Analogue Output
4-20mA
Input
RS485 Comms
Isolation
300V
Power Consumption
< 7VA
Mounting Style
Din Rail Mount
Supply Voltage Range
20...40VAC, 20...60VDC
Termination Style
Screw
Response Time
500ms (read)/1000ms (write)
Weight
200g
Factory Pack Qty
1
ROHS
Yes
CE
Yes
Datasheet
User Manual
Application Notes
Crouzet 88982113 Crouzet em4 Digital I/O Expansion
Up to 104 I/Os - 16 DI (4 High Speed / 8 AI)
10 x DO (2 x Solid State 0.5Amp PWM, 2 Relays 6 Amp, and 6 Relays 8 Amp)
Optional Wireless Programming & Control with native 3G and Crouzet Virtual Display
Optional Modbus RTU Network (Master/Slave)
Local datalog management
Up to 1000 programing blocks with intuitive Crouzet Soft to go from simple to complex applications
HMI Screens Available
Specification
Crouzet Part Number
88982113 (E10R)
Analogue Inputs
N/A
Digital Inputs
24VDC @ 2.1mA (6 Standard)
Digital Outputs
Relay 2 x 6 Amp 2 x 8 Amp
PWM SSR Output
2
Expandable
Yes
Comms
None (RS485, Bluetooth,3G,Standard, Ethernet) and Wifi versions available
LCD Display
Yes
Mounting Style
DIN Rail Mount (124.6mm)
Supply Voltage Range
24VAC (21.6 - 28.8VAC)
Termination Style
Screw
Weight
180g
Environmental
Reach, RoHS, Halogen free 1272/2008/CE
Certification
CE, cULus Listed
Factory Pack Qty
1
Over Voltage Category
3 in accordance with IEC/EN 60664-1
Pollution Degree
2 in accordance with IEC/EN 61131-2
Protection rating
IP40 (Front), IP20 (Rear)
Mechanical Resistance
Immunity to vibrations IEC/EN 60068-2-6, test Fc
Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference
Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions
Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature
-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
Datasheet
Product Datasheet
Software
Crouzet Touch Soft V6.00.02.173
Software M3-soft-AC9-V3.1.2.0_ML
Remote Control Software CVD_PC_V2_3_01_02
Crouzet Soft EVO EM4 1.12.01.14
Memory Interface for EM4 & Millenium EVO PLC
3 Functions
For PLC Firmware Upgrades
Transferring programs from one PLC to another
Supply program to Customer
Datasheet
Product Datasheet
Software
Crouzet Touch Soft V6.00.02.173
Software M3-soft-AC9-V3.1.2.0_ML
Remote Control Software CVD_PC_V2_3_01_02
Crouzet Soft EVO EM4 1.12.01.14
Crouzet 88890122 RS485 Adapter for Millenium EVO Logic Controller/Smart Relay. Polarized version.
Check your wiring instructions to determine which version you need.
Datasheets
Product Datasheet
Millenium EVO Brochure
EM4 Flagship Nano PLC Brochure
Software
Crouzet Touch Soft V6.00.02.173
Software M3-soft-AC9-V3.1.2.0_ML
Remote Control Software CVD_PC_V2_3_01_02
Crouzet Soft EVO EM4 1.12.01.14
