Cartridge Semiconductor Fuses DIN Rail Fuse Holders
-

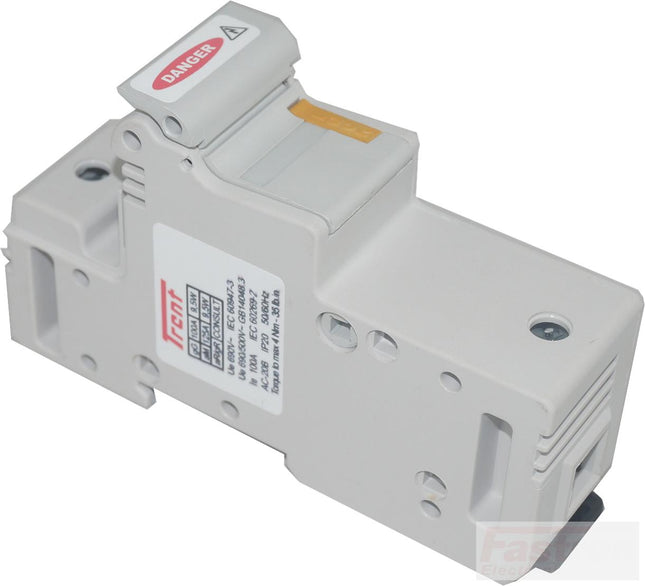

RT18-63L, Quick Release Fuse Holder/Cartridge for 25 to 63 Amp 14 x 51mm Fuse
Trent RT18-63L Series 690V Semiconductor I²t Fuse Holder, Fuse Ratings up to 63 Amp Features Cylindrical Standard Fuses Sizes Finger Safe IP 20 Protection Optional Fuse Indicator DIN Rail Mount Modular Lockable IEC Standard 60269.2 AND 3 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number RT18-63L Fuse Holder Type IEC Fuse Holder Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) N/A Nominal Current (RMS + DC) 63 Amp (63 continuous) Tested Breaking Capacity 160kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Compatibility To suit 22 x 58mm cylindrical fuse Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss N/A DC Breaking Capacity 50kA Unit Weight 70g Factory Pack Qty 10 Datasheet Original Mersen Datasheet Compatible Fuses Equivalent to Mersen T331079 nbr-fr22aR69v25t nbr-fr22aR69v40t nbr-fr22aR69v63t nbr-fr22aR69v80t nbr-fr22aR69v125t
$18.50
$21.83 inclGST -

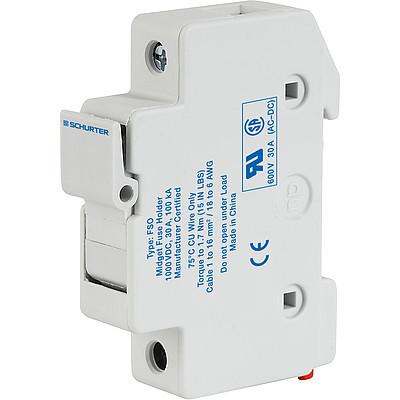

0091.0001, FSO DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series)
Schurter 0091.0001, FSO DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series) Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Schurter Part Number 0091.0001 Nominal Voltage 1000VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions 10.3 x 38mm Fuse Holder Dimensions 17.78 x 77.72mm Suitable Fuses ASO, AEO, PV10 Operating Temperature Range -40°C / 130°C Unit Weight 54g Factory Pack Qty 10 Datasheet Product Datasheet Alternatives VCB10 Fuse Holders
$21.45
$25.31 inclGST -

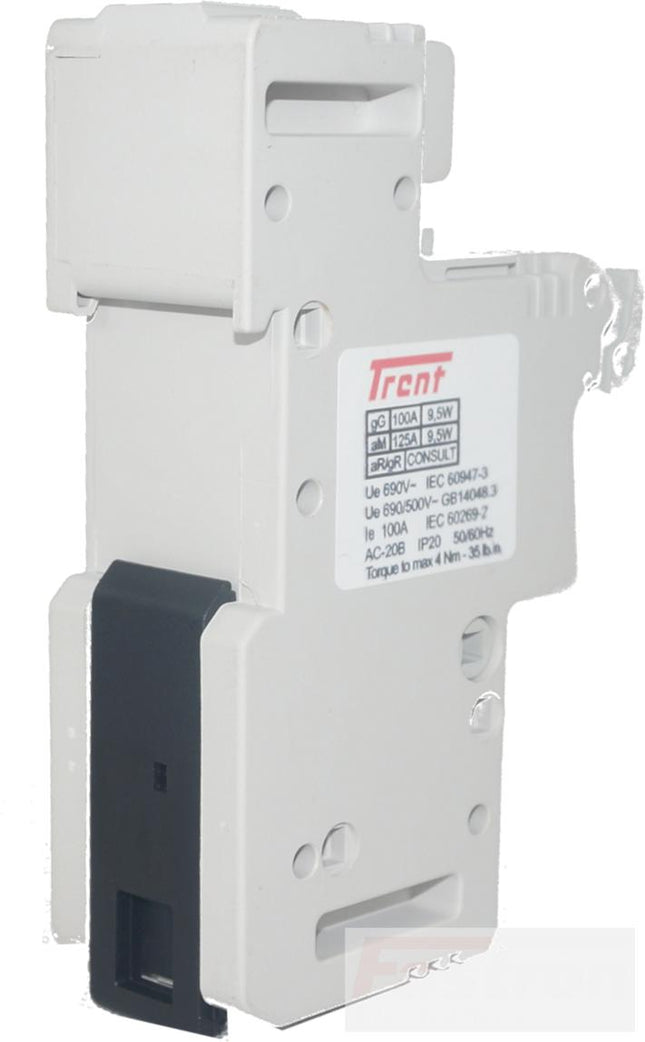

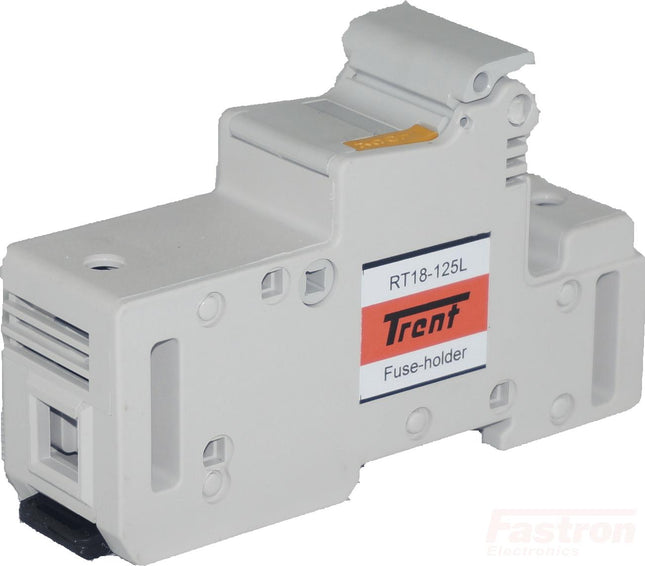

RT18-125L, Quick Release Fuse Holder/Cartridge for 25 to 125 Amp 22 x 58mm Fuse Links
Trent RT18-125L Series 690V Semiconductor I²t Fuse Holder 22 x 58mm, Fuse Ratings up to 125 Amp, Maximum Load Current = 90 Amp Continuous for gR, or aR type Fuses Features Cylindrical Standard Fuses Sizes Finger Safe IP 20 Protection Optional Fuse Indicator DIN Rail Mount Modular Lockable IEC Standard 60269.2 AND 3 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number RT18-125L Fuse Holder Type IEC Fuse Holder Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) N/A Nominal Current (RMS + DC) 125 Amp (90 continuous) Tested Breaking Capacity 160kA @ 690VAC Dimensions 123 x 76 x 35.5mm Fuse Compatibility To suit 22 x 58mm cylindrical fuse Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss N/A DC Breaking Capacity 50kA Unit Weight 70g Factory Pack Qty 10 Datasheet Original Mersen Datasheet Compatible Fuses Equivalent to Mersen T331079 nbr-fr22aR69v25t nbr-fr22aR69v40t nbr-fr22aR69v63t nbr-fr22aR69v80t nbr-fr22aR69v125t
$18.50
$21.83 inclGST -
VCB10-30 1P, DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VAC/DC Fuses up to 32 Amp Rating
VCB10-30 1P, DIN Rail Mount Fuse Holder Single Pole for 10.3 x 38mm, 1000VAC/DC Fuses up to 32 Amp Rating Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Vicfuse Part Number VCB10-30 1P Nominal Voltage 1000VAC/DC Tested Breaking Capacity 100kA @1000VDC Fuse Holder Dimensions 78.7 x 17.5mm Fuse Dimensions 10.3 x 38mm Suitable Fuses ASO, AEO, PV10, or other 10x38mm FUses Rated for 1000VAC/DC 32 Amp or Less. Operating Temperature Range -40°C / 130°C Unit Weight 54g Factory Pack Qty 10 Datasheet VCB10 Fuse Holders Alternatives FSO Fuse Holders
$14.00
$16.52 inclGST -
VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse
VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems For PV10 series 1500VDC gPV Fuses Specification Schurter Part Number VCB10-30X15 Nominal Voltage 1500VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions Fuse Holder Dimensions 127mm x 65.8mm x 22.3mm Suitable Fuses PV 10 1500V Series Operating Temperature Range -40°C / 130°C Unit Weight 100g Factory Pack Qty 10 Datasheet VCB10x15 Fuse Holders
$15.00
$17.70 inclGST -
VCB10-30 3P 1000V, DIN Rail Mount Fuse Holder Three Pole for 10.3x38mm, 1000VAC/DC Fuses up to 32 Amp Rating
VCB10-30 3P 1000V, DIN Rail Mount Fuse Holder Three Pole for 10.3x38mm, 1000VAC/DC Fuses up to 32 Amp Rating Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Vicfuse Part Number VCB10-30 3P 1000V Nominal Voltage 1000VAC/DC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions 10.3 x 38mm Fuse Holder Dimensions 76.5 x 52.5mm Suitable Fuses ASO, AEO, PV10, or other 10x38mm FUses Rated for 1000VAC/DC 32 Amp or Less. Operating Temperature Range -40°C / 130°C Unit Weight 165g Factory Pack Qty 10 Datasheet VCB10 Fuse Holders Alternatives FSO Fuse Holders
$31.00
$36.58 inclGST -

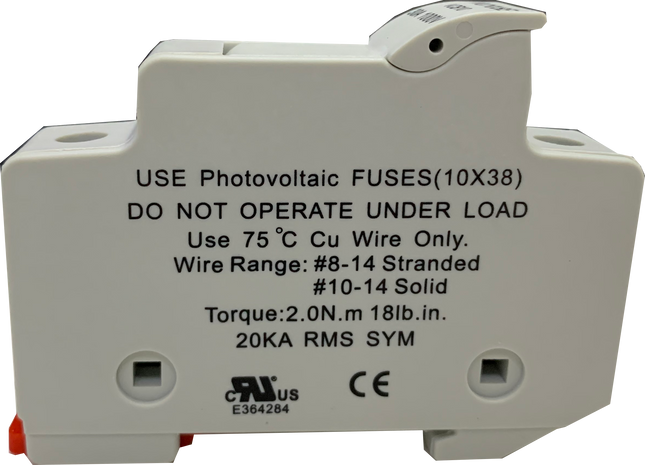

VCB10-30 2P 1000V, DIN Rail Mount Fuse Holder Two Pole for 10.3x38mm, 1000VAC/DC Fuses up to 32 Amp Rating
VCB10-30 2P 1000V, DIN Rail Mount Fuse Holder Two Pole for 10.3x38mm, 1000VAC/DC Fuses up to 32 Amp Rating Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Vicfuse Part Number VCB10-30 2P 1000V Nominal Voltage 1000VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions 10.3 x 38mm Fuse Holder Dimensions 76.5 x 35mm Suitable Fuses ASO, AEO, PV10, Or 10x38mm 1000VAC/DC or Less 32 Amp or Less Operating Temperature Range -40°C / 130°C Unit Weight 110g Factory Pack Qty 10 Datasheet VCB10 Fuse Holders Alternatives FSO Fuse Holders
$22.00
$25.96 inclGST -

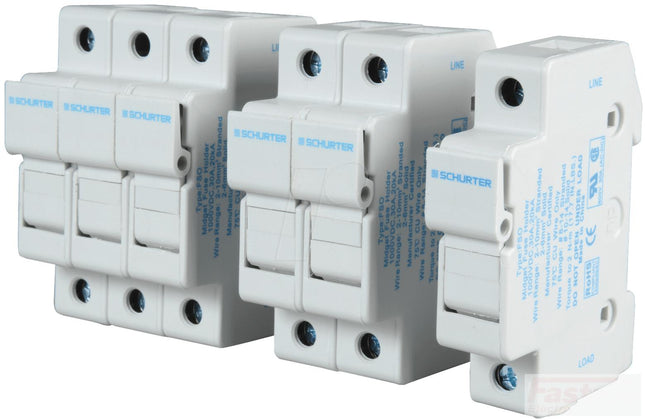

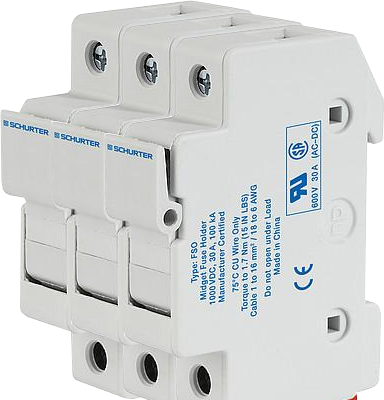

0091.0003, FSO DIN Rail Mount Fuse Holder 3 Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series)
Schurter 0091.0003, FSO DIN Rail Mount Fuse Holder 3 Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series) Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Schurter Part Number 0091.0003 Nominal Voltage 1000VDC Tested Breaking Capacity 100kA @1000VDC Fuse Holder Dimensions 53.34 x 77.72mm Fuse Dimensions 10.3 x 38mm Suitable Fuses ASO, AEO, PV10 Operating Temperature Range -40°C / 130°C Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Alternatives VCB10 Fuse Holders
$48.23
$56.91 inclGST -
0091.0002, FSO DIN Rail Mount Fuse Holder 2 Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series)
Schurter 0091.0002, FSO DIN Rail Mount Fuse Holder 2 Pole for 10.3 x 38mm, 1000VDC Solar PV Fuse (ASO Series) Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems Specification Schurter Part Number 0091.0002 Nominal Voltage 1000VDC Tested Breaking Capacity 100kA @1000VDC Fuse Holder Dimensions 35.56 x 77.72mm Fuse Dimensions 10.3 x 38mm Suitable Fuses ASO, AEO, PV10 Operating Temperature Range -40°C / 130°C Unit Weight 110g Factory Pack Qty 10 Datasheet Product Datasheet Alternatives VCB10 Fuse Holders
$48.00
$56.64 inclGST
