Single Phase Power Factor Correction Capacitors (PFC)

RTR Energia EA0525333500000 Power Factor Correction Capacitor, Single Phase, Dry Type 3.33 KVAR, 38.46uF, 525V, 50HZ, 60 x 150mm Characteristics and utility 3.33 kVar @ 525V @ 50 Hz, 38.46uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525333500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 3.33 Kvar Capacitance 38.46uF Tolerance On Capacitance -5% + 10% Current (In) 6.34 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

276.036-505710/221K02, Power Factor Correction Capacitor, Single Phase, 4.1 KVAR, 57uF, 480V, 50HZ, 65 x 148mm, DRY TYPE, Requires Discharge Resistor Characteristics and utility 4.1 kVar @ 480V @ 50 Hz, 57.0uF Discharge resistors required (sold seperately) Reactive power factor correction Dry Type (Resin Filled) Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 276.036-505710/221K02 Technology Dry Type (Resin Filled), Low Loss, Self Healing Dimensions 65 x 148mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 480V @ 50Hz Kvar 4.1 Kvar Capacitance 124.2uF Tolerance On Capacitance -5% + 10% Imax 22 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.2kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA0525660500000 Power Factor Correction Capacitor, Single Phase, Dry Type 8.33 KVAR, 96.2uF, 525V, 50HZ, 85 x 225mm Characteristics and utility 8.33 kVar @ 525V @ 50 Hz, 96.2uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525833050000 Technology Dry Type, Low Loss, Self Healing Dimensions 85 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 8.33 Kvar Capacitance 96.2uF Tolerance On Capacitance -5% + 10% Current (In) 18.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.7kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA5251000500000 Power Factor Correction Capacitor, Single Phase, Dry Type 10 KVAR, 111.49uF, 525V, 50HZ, 85 x 225mm Characteristics and utility 10 kVar @ 525V @ 50 Hz, 111.49uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA5251000500000 Technology Dry Type, Low Loss, Self Healing Dimensions 85 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 10 Kvar Capacitance 111.4uF Tolerance On Capacitance -5% + 10% Current (In) 15.9 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.9kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

276.066-512410/221302, Power Factor Correction Capacitor, Single Phase, 7.5 KVAR, 124.2uF, 440V, 50HZ, 65 x 148mm, Requires Discharge Resistor Characteristics and utility 7.5 kVar @ 440V @ 50 Hz, 124.2uF Discharge resistors required (sold seperately) Reactive power factor correction Nitrogen Gas Filled Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 276.066-512410/221302 Technology Nitrogen Gas Filled, Low Loss, Self Healing Dimensions 65 x 148mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 440V @ 50Hz Kvar 7.5 Kvar Capacitance 124.2uF Tolerance On Capacitance -5% + 10% Imax 22 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.2kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA5252000500000 Power Factor Correction Capacitor, Single Phase, Dry Type 20 KVAR, 525V, 230.97uF, 50HZ, 120 x 225mm Characteristics and utility 20 kVar @ 525V @ 50 Hz, 230.97uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA5252000500000 Technology Dry Type, Low Loss, Self Healing Dimensions 120 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 20 Kvar Capacitance 230.97uF Tolerance On Capacitance -5% + 10% Current (In) 38 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.2kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA0525660500000 Power Factor Correction Capacitor, Single Phase, Dry Type 6.60 KVAR, 525V, 50HZ, 60 x 200mm Characteristics and utility 6.6 kVar @ 525V @ 50 Hz 10.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525660500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 200mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 6.6 Kvar Capacitance 231uF Tolerance On Capacitance -5% + 10% Rating 38 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA0525083500000 Power Factor Correction Capacitor, Single Phase, Dry Type 0.835 KVAR, 9.59uF, 525V, 50HZ, 60 x 150mm Characteristics and utility 0.835 kVar @ 525V @ 50 Hz, 9.59uF 10.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525083500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 0.835 Kvar Capacitance 9.59uF Tolerance On Capacitance -5% + 10% Current (In) 1.58 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RTR Energia EA5251670500000 Power Factor Correction Capacitor, Single Phase, Dry Type 10 KVAR, 192.85uF, 525V, 50HZ, 100 x 225mm Characteristics and utility 16.7 kVar @ 525V @ 50 Hz, 192.85uF Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA5251670500000 Technology Dry Type, Low Loss, Self Healing Dimensions 100 x 225mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 16.7 Kvar Capacitance 192.85uF Tolerance On Capacitance -5% + 10% Current (In) 31.6 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.2kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

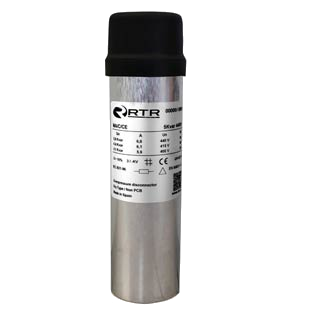

RTR Energia EA0525250500000 Power Factor Correction Capacitor, Single Phase, Dry Type 2.5 KVAR, 28.87uF, 525V, 50HZ, 60 x 150mm Characteristics and utility 2.5 kVar @ 525V @ 50 Hz, 28.87uF.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525250500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 2.5 Kvar Capacitance 28.87uF Tolerance On Capacitance -5% + 10% Current (In) 4.76 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet

Read more less

RTR Energia EA0525417500000 Power Factor Correction Capacitor, Single Phase, Dry Type 4.17 KVAR, 525V, 38.46uF, 50HZ, 60 x 150mm Characteristics and utility 4.17 kVar @ 525V @ 50 Hz, 48.16uF10.0, 38.46uFkvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525417500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 4.17 Kvar Capacitance 48.164uF Tolerance On Capacitance -5% + 10% Current (In) 7.94 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet

Read more less
