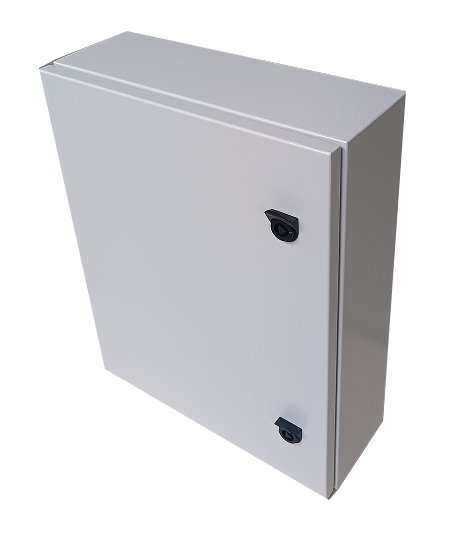

RODN504015, Steel Enclosure, 500mmH x400mmW x 150mmD, IP66, RAL 7035 Gray 1.5mm Galvanised Steel Features Injected Polyurethane Sealing gasket 3 x M20 cable glands 4pcs Wall Mounts and dynabolts included Lockable Door via Key RAL7035 GREY AS3000/AS3100 Compliant IP66   Specification Fastron Part Number RODN504015 Function Steel Water Proof Enclosure Configuration Enclosure with Hinged Door, Key Lock, 4 Mounting Clips, DYnabolts, and Cable Glands Termination Style Screw Mount to gear tray Dimensions H:500 x W:400 x D:150mm Weight 12.4kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 1.5mm Galvanised Steel Painted RAL 7035 Enclosure protection IP66 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

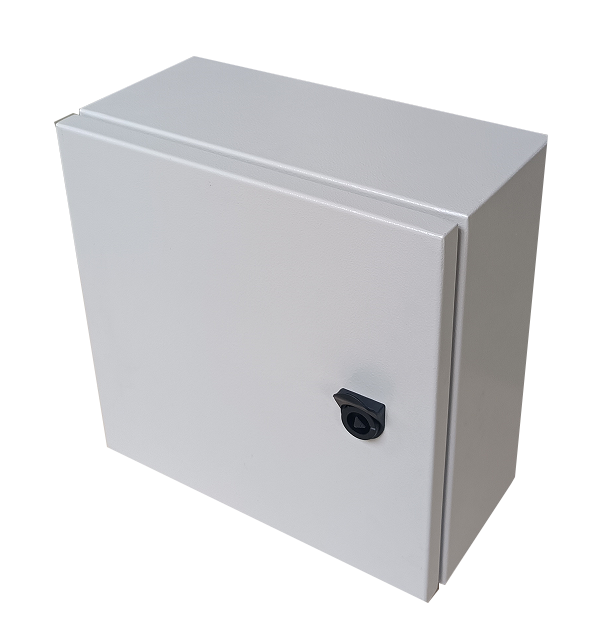

RODN303015, Steel Enclosure, 300mmH x300mmW x 150mmD, IP66, RAL 7035 Gray 1.5mm Galvanised Steel Features Injected Polyurethane Sealing gasket 3 x M20 cable glands 4pcs Wall Mounts and dynabolts included Lockable Door via Key RAL7035 GREY AS3000/AS3100 Compliant IP66   Specification Fastron Part Number RODN303015 Function Steel Water Proof Enclosure Configuration Enclosure with Hinged Door, Key Lock, 4 Mounting Clips, DYnabolts, and Cable Glands Termination Style Screw Mount to gear tray Dimensions H:300 x W:300 x D:150mm Weight 7kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 1.5mm Galvanised Steel Painted RAL 7035 Enclosure protection IP66 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

RODN604025, Steel Enclosure, 600mmH x400mmW x 250mmD, IP66, RAL 7035 Gray 1.5mm Galvanised Steel Features Injected Polyurethane Sealing gasket 3 x M20 cable glands 4pcs Wall Mounts and dynabolts included Lockable Door via Key RAL7035 GREY AS3000/AS3100 Compliant IP66   Specification Fastron Part Number RODN604025 Function Steel Water Proof Enclosure Configuration Enclosure with Hinged Door, Key Lock, 4 Mounting Clips, DYnabolts, and Cable Glands Termination Style Screw Dimensions H:600 x W:400 x D:250mm Weight 15.6kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 1.5mm Galvanised Steel Painted RAL 7035 Enclosure protection IP66 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

RODNV624011, Steel Teclom Enclosure with HMI Windowed Door IP55, AIR COOLED 578M3/h, RAL 7035 Gray, 2.0mm Galvanised Steel, Thermostat and Fan Pre-installed Features Thermostat Controlled Dual Fans for 578m3/h maximum flow rate Lockable Door via Key Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number RODNV624010 Function Steel Water Proof Enclosure Configuration Enclsure with Hinged Door, Key Lock and Fan and Thermostat Air Flow Rate 578m3/h Termination Style Screw Dimensions D:430 x W:680 x H:1200mm Weight 70kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 2.0mm Galvanised Steel Painted RAL 7035 Enclosure protection IP55 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

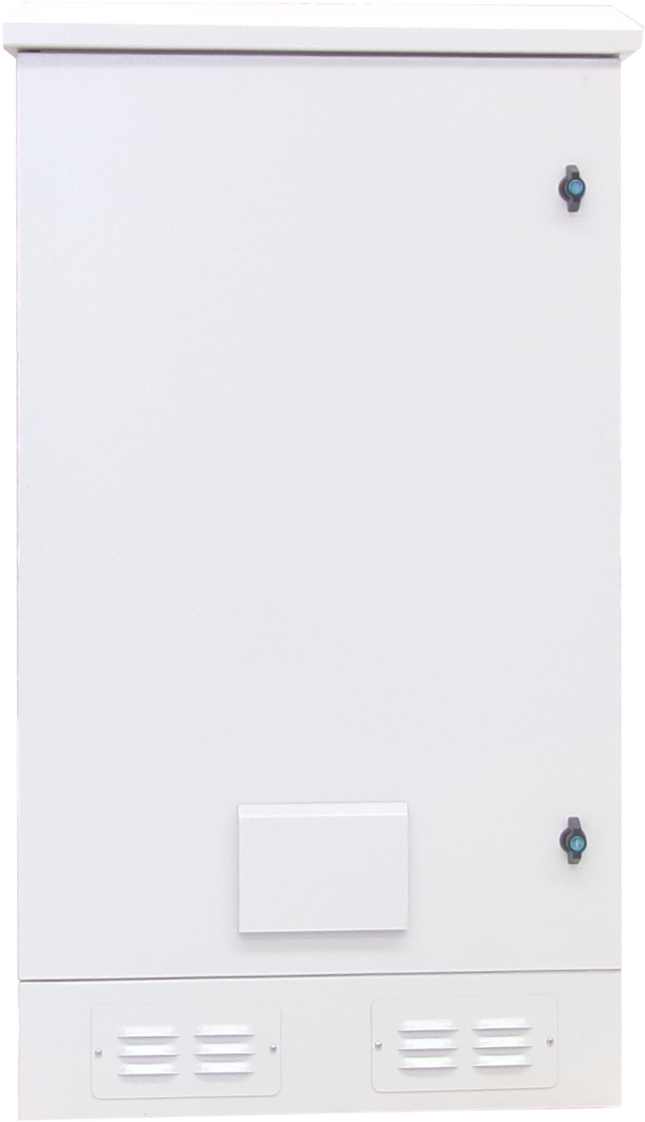

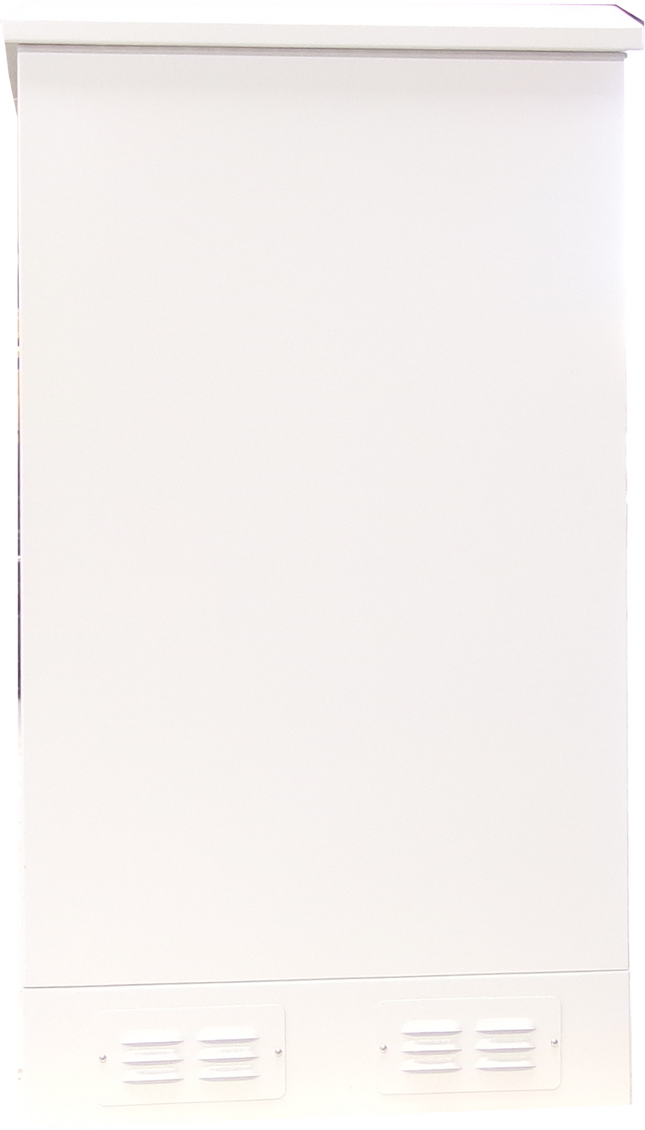

RODNV624010, Steel Teclom Enclosure IP55, AIR COOLED 578M3/h, RAL 7035 Gray, 2.0mm Galvanised Steel, Thermostat and Fan Pre-installed Features Thermostat Controlled Dual Fans for 578m3/h maximum flow rate Lockable Door via Key Stack multiple modules for larger Power Factor Correction Requirements Optional HMI IP55 Door with Window RODNV624010   Specification Fastron Part Number RODNV624010 Function Steel Water Proof Enclosure AIR COOLED Configuration Enclosure with Hinged Door, Key Lock and Fan and Thermostat Air Flow Rate 578m3/h Termination Style Screw Dimensions L:950 x W:950 x H:1200mm Weight 70kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 2.0mm Galvanised Steel Painted RAL 7035 Enclosure protection IP55 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less
