How to Modify F3330 Controller for Secondary Gate/ Low Voltage Firing
- 3 Phase, AC switch, Advanced Energy, AEG, Anodising Controller, Automation, Chlorinator, Controlled Bridge, Dimmer, Electric Furnace, Electrolysis, Electroplating Controller, Firing Card, Phase Angle Controller, Power, Power Controller, Power Regulator, Power Supply, Process Control, SCR, SCR Controller, Thyristor Controller, Thyro
- 25 Aug, 2021
In this Blog we discuss how to Modify F3330 Controller for Secondary Gate/ Low Voltage Firing

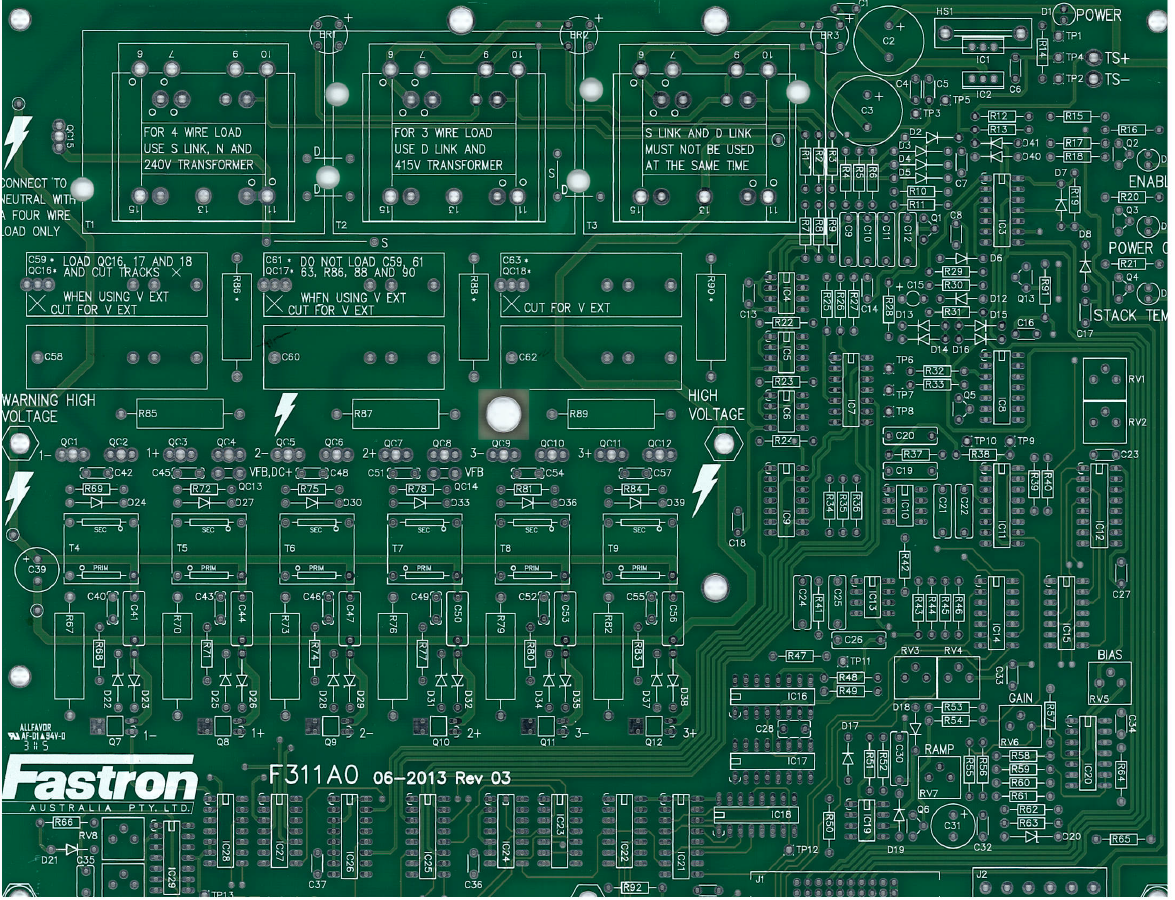

Cut the track on the underside…X marks the spot on the PCB (Just below QC16,QC17,QC18)
Connect 415VAC auxiliary supply as follows
QC16 -> L1
QC17 -> L2
QC18 -> L3
For the 12VAC Side connect to the power supply terminals where there would normally be 415VAC
L1 -> 12VAC(L1)
L2 -> 12VAC(L2)
L3 -> 12VAC(L3)
For further clarification please contact us.
