3 Phase Power Factor Correction Capacitors
-
![KNK3053 25KVAR 525V 50HZ-T, Power Factor Correction Capacitor, 3 Phase, 90 x 285mm [Tall Version] Dry Type, 3 x 96.2uF, Includes Discharge Resistor](//fastron.com.au/cdn/shop/products/KNK3053_b_b7190ddc-e80f-47e2-8fe2-d4a7388cec74.png?v=1658817001&width=645)
KNK3053 25KVAR 525V 50HZ-T, Power Factor Correction Capacitor, 3 Phase, 90 x 285mm [Tall Version] Dry Type, 3 x 96.2uF, Includes Discharge Resistor
Iskra Doo KNK3053 25KVAR 525V 50HZ-T, Power Factor Correction Capacitor, 3 Phase, 90 x 290mm [Tall Version] Dry Type, 3 x 96.2uF, Includes Discharge Resistor Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 25 KVAR 525V 50HZ-T Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 265(+25mm) Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 2.5kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$219.00
$258.42 inclGST -

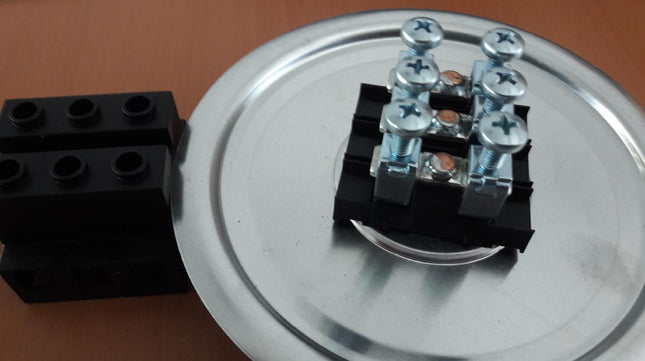

KNK3053 25KVAR 525V 50HZ S, Power Factor Correction Capacitor, 3 Phase, 116 x 210mm Dry Type, 3 x 96.2uF, Includes Discharge Resistor
Iskra Doo KNK3053, 25 KVAR 525V 50HZ S, Power Factor Correction Capacitor, 3 Phase, 116 x 210mm Dry Type, 3 x 96.2uF Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053, 25 KVAR 525V 50HZ S Technology Dry Type, Low Loss, Self Healing Dimensions 116 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 2.5kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$239.00
$282.02 inclGST -
OPP-20-3760343 -CXP 9.7kV Outdoor Fuse ABB Manufacture
ABB 9.7kV Capacitor Fuse OPP-20-3760343 -CXP for Outdoor Power Factor Corecton Systems Fuse Datasheet ABB Fuses
$454.00
$535.72 inclGST -

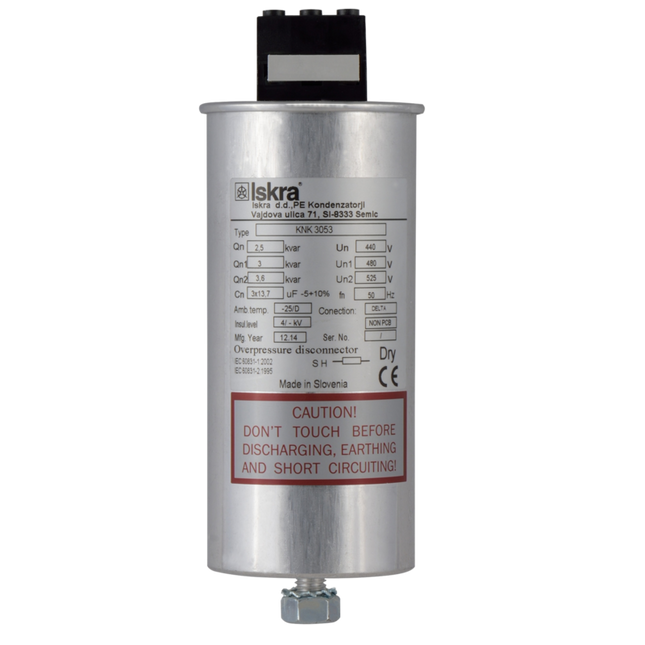

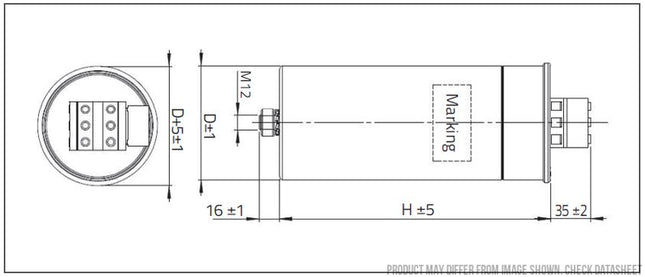

KNK3053 7.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type, 3 x 28.9uF, Includes Discharge Resistor
Iskra Doo KNK3053 7.5 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type, 3 x 28.9uF Characteristics and utility 7.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 7.5 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 75 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 7.5 Kvar Capacitance 3 x 28.9uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 8.2 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.1kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$95.50
$112.69 inclGST -
KNK3053 50KVAR 525V 50HZ H, Heavy Duty, Power Factor Correction Capacitor, 3 Phase, Dry Type 136x285mm, 3 x 192.48uF, Includes Discharge Resistor
Iskra Doo KNK3053 50 KVAR 525V 50HZ Heavy Duty, Power Factor Correction Capacitor, 3 Phase, Dry Type 136x285mm, 3 x 192.48uF Characteristics and utility 50kVar @ 525V @ 50 Hz 50kvar Heavy Duty 150,000Hours Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 50 KVAR 525V 50HZ H Technology Dry Type, Low Loss, Self Healing Dimensions 136 x 285mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 50 Kvar Capacitance 3 x 192.48uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 36 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 4.2kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$349.00
$411.82 inclGST -

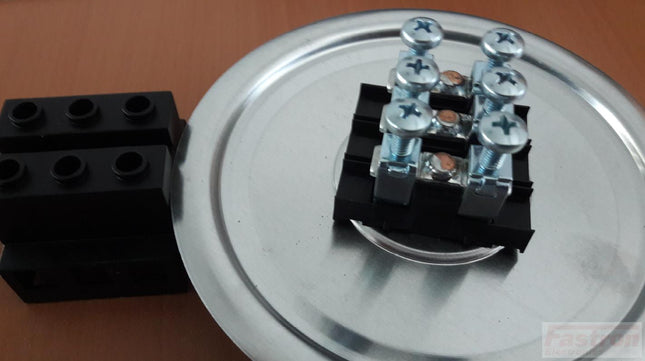

KNK3053 50KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, Dry Type 136x285mm, 3 x 192.48uF, Includes Discharge Resistor
Iskra Doo KNK3053 50 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, Dry Type 136x285mm, 3 x 192.48uF Characteristics and utility 50kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 50 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 136 x 285mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 50 Kvar Capacitance 3 x 192.48uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 36 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 4.2kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$305.00
$359.90 inclGST -
KNK3053 5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, Dry Type, 3 x 19.3uF, Includes Discharge Resistor
Iskra Systemi KNK3053 5 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, Dry Type, 3 x 19.3uF Characteristics and utility 5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 5 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 75 x 165mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 5 Kvar Capacitance 3 x 19.3uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 5.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.9kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$85.60
$101.01 inclGST -
KNK3053 40 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 285mm Dry Type, 3 x 154uF, Includes Discharge Resistor
Iskra Doo KNK3053 40 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 285mm Dry Type, 3 x 154uF Characteristics and utility 40kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 40 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 116 x 285mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 40 Kvar Capacitance 3 x 154uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Feed Through Terminal Unit Weight 3.6kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$299.00
$352.82 inclGST -
KNK3053 30KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 245mm Dry Type, 3 x 115.5uF, Includes Discharge Resistor
Iskra Doo KNK3053 30 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 245mm Dry Type, 3 x 115.5uF Characteristics and utility 30kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 30 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 116 x 245mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 30 Kvar Capacitance 3 x 115.5uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 33 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 3kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$249.00
$293.82 inclGST -
KNK3053 20KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 245mm Dry Type, 3 x 77uF, Includes Discharge Resistor
Iskra Doo KNK3053 20 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 245mm Dry Type, 3 x 77uF Characteristics and utility 20kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane UL 94 V0 resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 20 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 245mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 20 Kvar Capacitance 3 x 77uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 22 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 2.1kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$164.00
$193.52 inclGST -
KNK3053 15KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 210mm Dry Type, 3 x 57.7uF, Includes Discharge Resistor
Iskra Systemi 15 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 210mm Dry Type, 3 x 57.7uF Characteristics and utility 15kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR EnergÃa Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 15 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 15 Kvar Capacitance 3 x 57.7uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 16.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.5kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$145.00
$171.10 inclGST -
KNK3053 12.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 210mm Dry Type, 3 x 48.1uF, Includes Discharge Resistor
Iskra Doo KNK3053 12.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 210mm Dry Type, 3 x 48.1uF Characteristics and utility 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR EnergÃa Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 12.5 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 12.5 Kvar Capacitance 3 x 48.1uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 13.7 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Feed Through Terminal Unit Weight 1.4kg Factory Pack Quantity 25  Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet
$139.00
$164.02 inclGST
