TRI-22-G240, 22mm LED Indicator GREEN 240VAC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-G240 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Green LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TA800E-LY240, Green LED Bead Replacements for 240VAC TRIB, TRI Series Indicators LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TA800E-LG240 Functions LED Indicator Bulb Replacement Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Green LED Approvals CE Weight Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRT-22D-Y-400, 22mm LED NTC Thermometer AMBER 0-100℃ 400VAC, Plastic, IP40, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 400VAC Supply 0-100℃ Measurement NTC Input LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRT-22D-Y-400 Functions LED Frequency Meter Measurement Range 0-0-100℃ Nominal Voltage 400VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Amber LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRV-22D-R-400, 22mm LED Voltmeter RED 20-500VAC, Plastic, IP40, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 400VAC Supply 20-500VAC Measurement LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRV-22D-R-400 Functions LED Voltmeter Measurement Range 20-500VAC Nominal Voltage 400VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

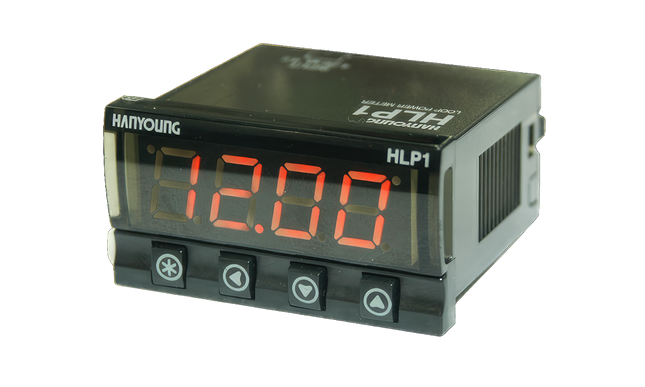

HLP1, Indicator, 48x24mm, Self Powered, 4-20mA Input, 4 Digit, -9999 to +9999 Display Range 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s or selectable response) Drip-proof / Dust-proof IP66 (front panel only) CE Approved Each unit needs just 45.5 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number HLP1 Control Output 1 (Heat) N/A Control Output 2 (Cool) N/A Input 4-20mA Current Loop Alarm N/A Option 1 N/A Mounting Style 48 x 24mm Panel Mount Supply Voltage Self Powered Termination Style Screw Weight 150g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet HLP1 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

TGD-22SM-R-230, 22mm RED LED Flasher/Indicator and Audible Alarm Buzzer, 240VAC, Plastic LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC Supply LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TGD-22SM-R-230 Functions LED Indicator and Audible Alarm Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

BA1-ND21-2A, Indicator, 48x24mm, 12-24VDC, 4-20mA Input, 0-100.0 Display Range 3.5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Each unit needs just 40 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number BA1-ND21-2A Control Output 1 (Heat) N/A Control Output 2 (Cool) N/A Input 4-20mA (0-100.0) Alarm N/A Option 1 N/A Mounting Style 48 x 24mm Panel Mount Supply Voltage 5VDC Termination Style Screw Weight 100g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet BA1 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

BK3-P1, Indicator, 48x24mm, 100-240VAC, Pt100 RTD Input, -199.0-600 Deg C Display Range 3.5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Each unit needs just 100.2 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number BK3-P1 Control Output 1 (Heat) N/A Control Output 2 (Cool) N/A Input P100 RTD (-199.0-600.0 Deg C) Alarm N/A Option 1 N/A Mounting Style 48 x 24mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet BK3 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

BK3-K, Indicator, 48x24mm, 100-240VAC, Type K Input, 0-1300 Deg C Display Range 3.5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Each unit needs just 100.2 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number BK3-K Control Output 1 (Heat) N/A Control Output 2 (Cool) N/A Input Type K (0-1300) Alarm N/A Option 1 N/A Mounting Style 48 x 24mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet BK3 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11
