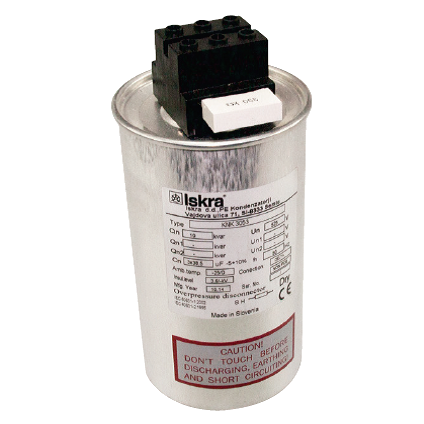

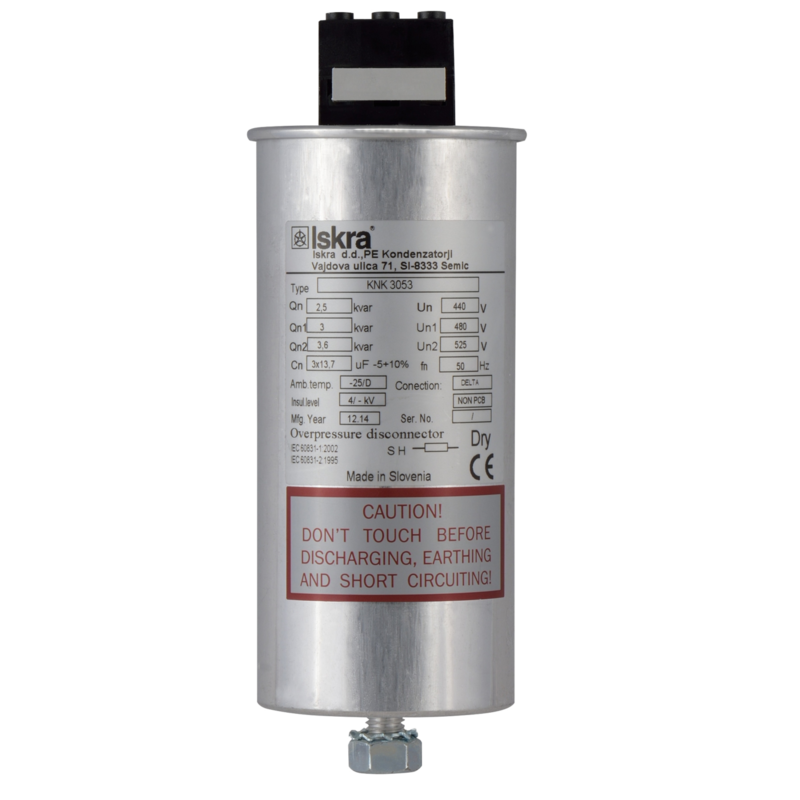

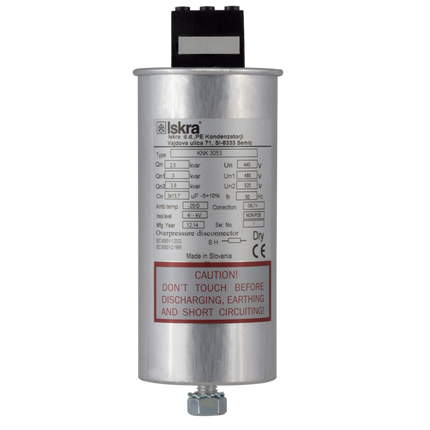

KNK3053 30 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 285mm Dry Type

KNK3053 30 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 285mm Dry Type

Available: Backorder
$234.00+GST
Successful pre-order.Thanks for contacting us!
Wishlist Compare

Characteristics and utility

  • 30 kVar @ 525V @ 50 Hz 10.0kvar 10kvar
  • Three phase capacitor DUAL WINDING internally delta connected
  • Discharge resistors Incorporated
  • Reactive power factor correction
  • Dry type

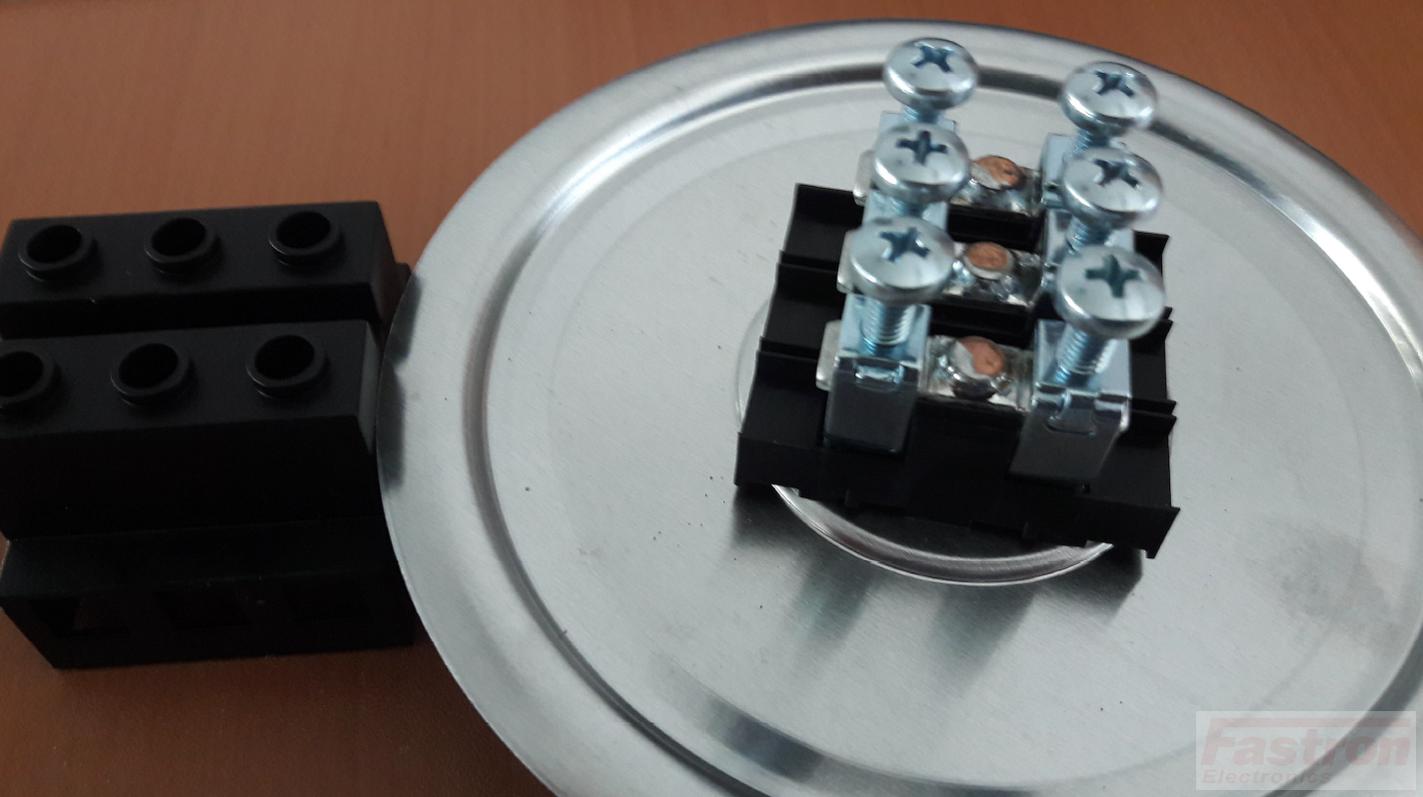

  • Connector type - single sided terminal
  • Indoor mounting

Triple safety

  • Overpressure disconnection system
  • Protection by internal fuses
  • Self Healing

Construction and materials

  • Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
  • UL 94 V0 Resin
  • Aluminium case with bottom fixing M12x16

Standards

  • IEC 60831-1/2
  • EN 60831-1/2

Characteristics and utility

  • 30 kVar @ 525V @ 50 Hz 10.0kvar 10kvar
  • Three phase capacitor DUAL WINDING internally delta connected
  • Discharge resistors Incorporated
  • Reactive power factor correction
  • Dry type
  • Connector type - single sided terminal
  • Indoor mounting

Triple safety

  • Overpressure disconnection system
  • Protection by internal fuses
  • Self Healing

Construction and materials

  • Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
  • UL 94 V0 Resin
  • Aluminium case with bottom fixing M12x16

Standards

  • IEC 60831-1/2
  • EN 60831-1/2
Iskra Part Number KNK3053 30 KVAR 525V 50HZ
Technology Dry Type, Low Loss, Self Healing

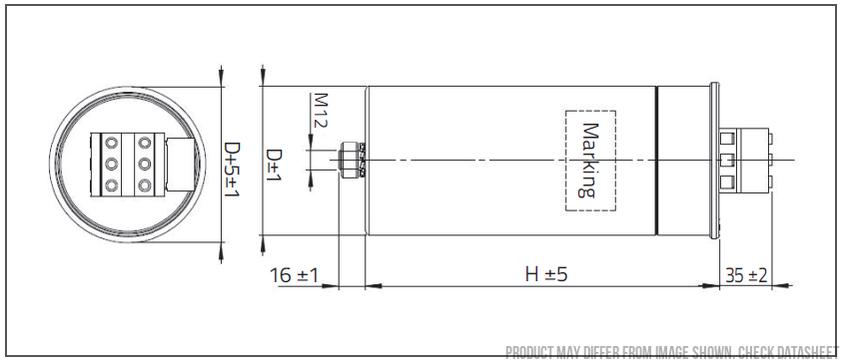

Dimensions 116 x 245mm
Standards IEC 60831-1/2, EN 60831-1/2
Voltage 525V @ 50Hz
Kvar 30 Kvar
Capacitance 3 x 77uF
Tolerance On Capacitance -5% + 10% (others on request)
Current (In) 33 Amp
Overpressure Disconnection System YES
Self Extinguishing Resin YES
Internal Fuses YES
Self Healing YES
Mounting M12 x 16mm (Indoor)
Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs)
Lifetime 120,000 Hours
Termination Style Filter Type Terminal
Unit Weight 3kg
Factory Pack Quantity 25
