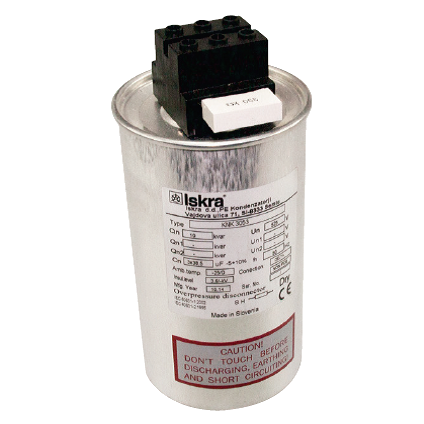

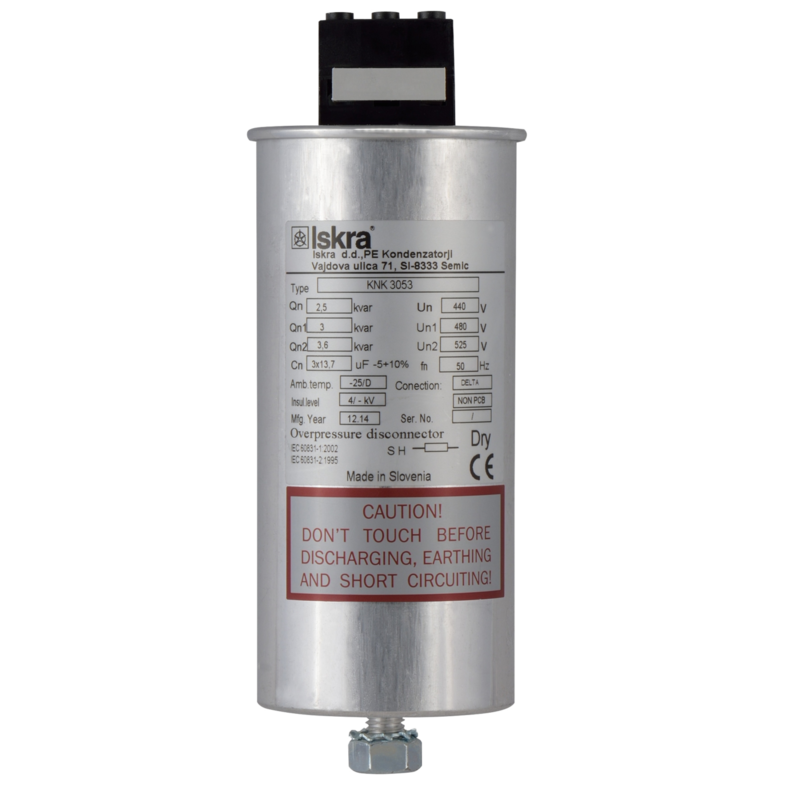

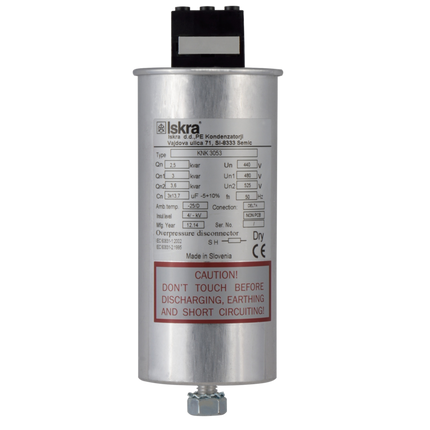

KNK3053 20KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 245mm Dry Type, 3 x 77uF, Includes Discharge Resistor

KNK3053 20KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 245mm Dry Type, 3 x 77uF, Includes Discharge Resistor

Product form
Free pickup in our shop(s)

37 pcs in stock

$164.00 $180.40 inclGST Excl. VAT

        SKU: FE-KNK3053 20 KVAR 525V 50HZ

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Iskra Doo KNK3053 20 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 245mm Dry Type, 3 x 77uF

        Characteristics and utility

        • 20kVar @ 525V @ 50 Hz 10.0kvar 10kvar
        • Three phase capacitor DUAL WINDING internally delta connected
        • Discharge resistors Incorporated
        • Reactive power factor correction
        • Dry type

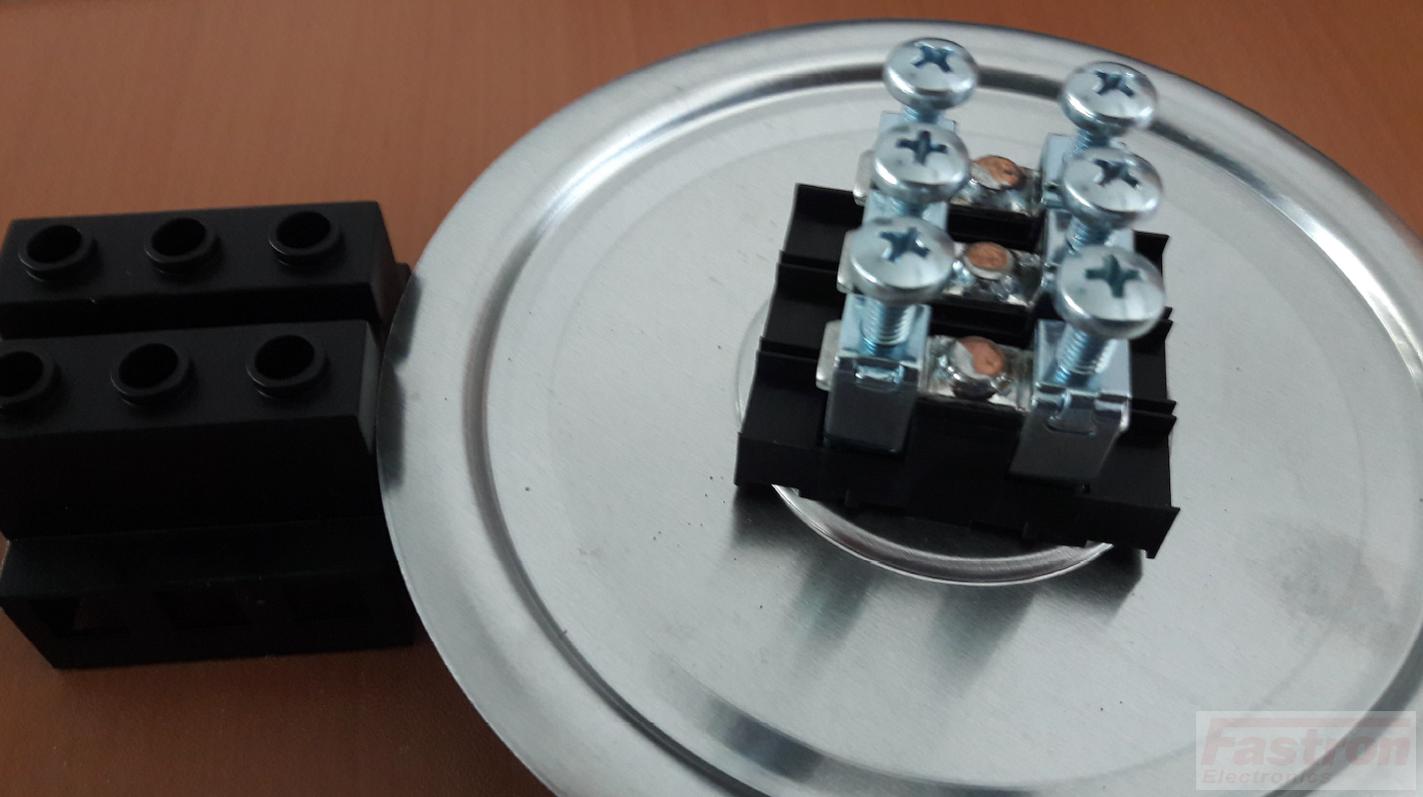

        • Connector type - single sided terminal
        • Indoor mounting

        Triple safety

        • Overpressure disconnection system
        • Protection by internal fuses
        • Self Healing

        Construction and materials

        • Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
        • Polyurethane UL 94 V0 resin
        • Aluminium case with bottom fixing M12x16

        Standards

        • IEC 60831-1/2
        • EN 60831-1/2
        Specification
        Iskra Part Number KNK3053 20 KVAR 525V 50HZ
        Technology Dry Type, Low Loss, Self Healing

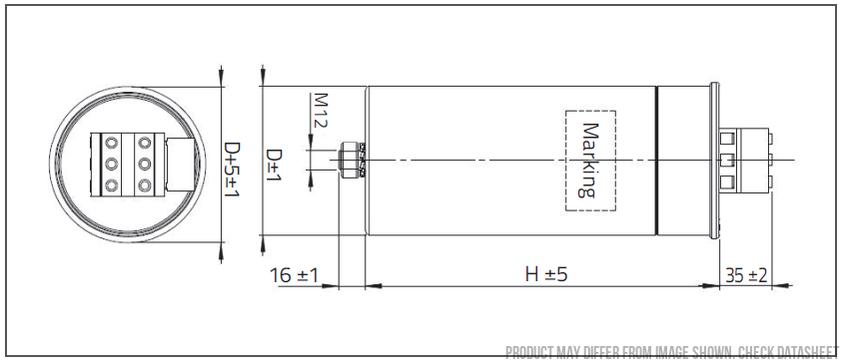

        Dimensions 90 x 245mm
        Standards IEC 60831-1/2, EN 60831-1/2
        Voltage 525V @ 50Hz
        Kvar 20 Kvar
        Capacitance 3 x 77uF
        Tolerance On Capacitance -5% + 10% (others on request)
        Current (In) 22 Amp
        Overpressure Disconnection System YES
        Self Extinguishing Resin YES
        Internal Fuses YES
        Self Healing YES
        Mounting M12 x 16mm (Indoor)
        Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs)
        Lifetime 120,000 Hours
        Termination Style Filter Type Terminal
        Unit Weight 2.1kg
        Factory Pack Quantity 25



        Datasheet
        Application Notes

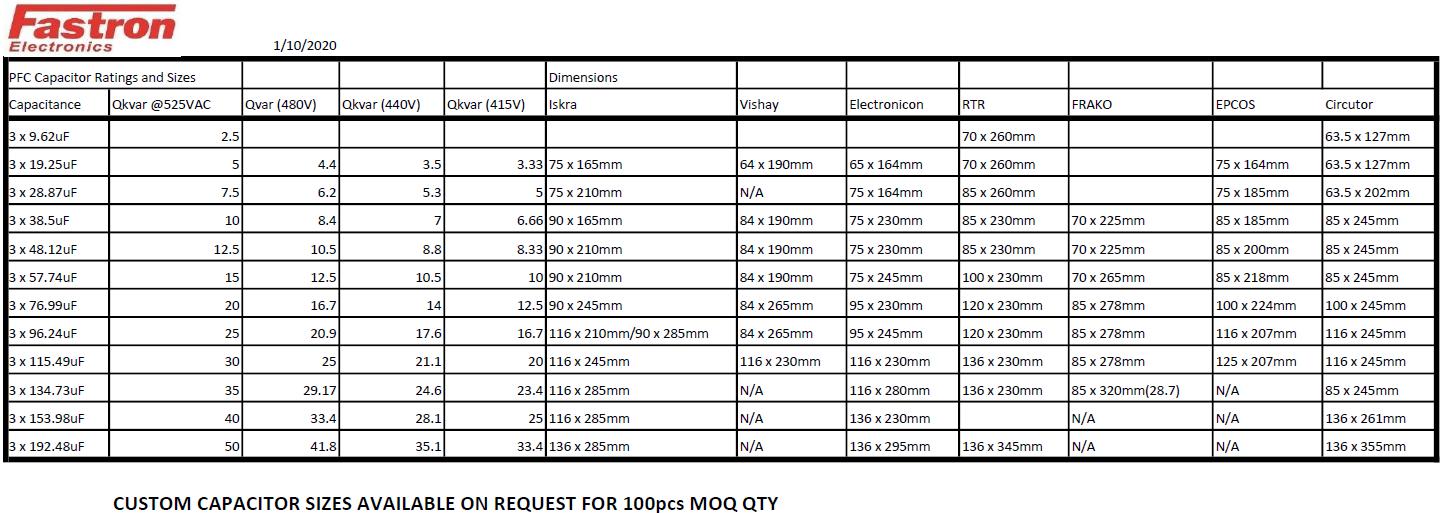

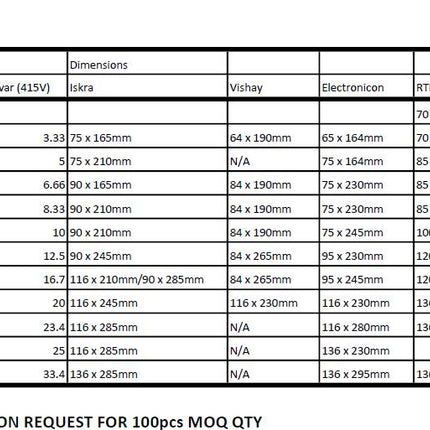

        Voltage Derating Tables
        PFC Caps Brand Comparison and KVAR Voltage Derating Tables
        Hot Spot Testing
