Mosfet Power Devices

Trent FSJ60D7-L, Solid State Relay, DC 4-32VDC control, 7A, 60VDC Maximum Load, Mosfet Output Features Ratings from 7A to 80 Amp @ 3-600VDC IGBT/Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec TRENT Part Number FSJ60D7-L Switching Type DC Load Control Voltage 4-32VDC Load Current 7 Amp DC Surge Capability (10ms) 21 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Trent FSJ100D80-L, Solid State Relay, DC 4-32VDC control, 100A, 100VDC Maximum Load, Mosfet Output Features Ratings from 7A to 80 Amp @ 3-600VDC IGBT/Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec TRENT Part Number FSJ100D80-L Switching Type DC Load Control Voltage 4-32VDC Load Current 80 Amp DC Surge Capability (10ms) 240 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 100VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Trent FSJ100D40-L, Solid State Relay, DC 4-32VDC control, 40A, 100VDC Maximum Load, Mosfet Output Features Ratings from 7A to 80 Amp @ 3-600VDC IGBT/Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec TRENT Part Number FSJ100D40-L Switching Type DC Load Control Voltage 4-32VDC Load Current 40 Amp DC Surge Capability (10ms) 120 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 100VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Trent FKM111AR, Mosfet Single, 150 Amp, 100V, Medium Fast, OEM Drop in Replacement for SKM111AR, Can Be used to detect Earth Faults Features Mosfet Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width NBR Non Genuine replacement part. Reverse engineered and tested to SKM111AR Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Trent Part Number NBR-SKM111AR Vces 100V Transistor Configuration Single Mosfet Ic(nom) @ 80 Deg C 150 Amp Package Size W:42mm L:80mm D:30mm Tj(max) 150°C Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals M5/Faston Weight 130g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Trent Headquarters Australia   Datasheet Product Datasheet

Read more less

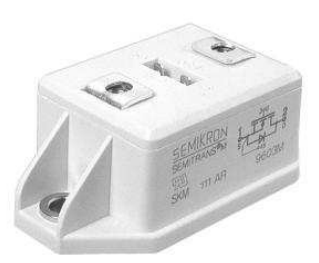

Semikron SKM111AR, Mosfet Single, 150 Amp, 100V, Medium Fast Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM111AR Vces 100V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 150 Amp Package Size W:42mm L:80mm D:30mm Tj(max) 150°C Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals M5/Faston Weight 130g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less
