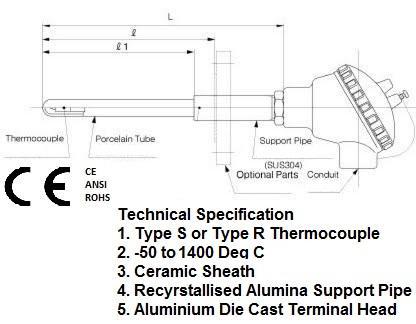

Fastron FTCS Series Type S Ceramic Thermocouple, Various Lengths Recrystallised Allumina 1400ºC 21x50mm Support Tube, KNE Alminium Die Cast Terminal Head, KNE(wire entry:M20x1.5, probe entry: G1/2'') Class A Accuracy 50mm Support Tube 0.35mm Internal wire diameter Low Long Term Drift Rated for -50 to 1400 Deg C Max Terminal Head Connection 300(50)mmor 450(50)mm Long x 16(21)mm Sheath Ceramic Sheath with Recrystallaised Allumina Recommended to use Flange Fitting for mounting Specification Fastron Part Number FTCS Series Sensor Type Type S Thermocouple No of Wires 2 Probe Length 300mm or 450mm (Includes 50mm Support Tube) Sheath Thickness 16(21)mm Sheath Material Ceramic & Recrystallasied Allumina Accuracy Class A Approvals CE, ANSI, ROHS Cable Length Terminal Head Terminal Head Type Die Cast Alloy Terminal Head, , KNE(wire entry:M20x1.5, probe entry: G1/2'') Temperature Range -50 to 1400 Deg C Special Feature Ceramic Mounting Style Flange Fitting Recommended Weight 850g Factory Pack Qty 1 Datasheet Datasheet Flange Datasheet

Read more less

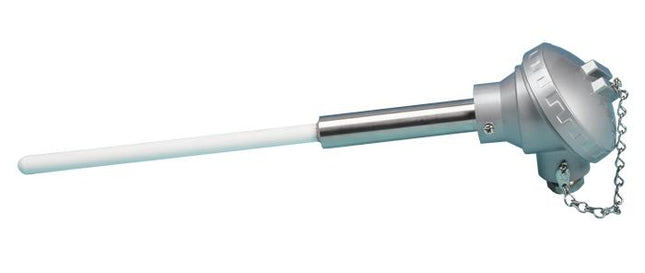

Fastron FTCR SeriesType R Ceramic Thermocouple, Various Lengths, Recrystallised Allumina 1400ºC 21x50mm Support Tube, KNE(wire entry:M20x1.5, probe entry: G1/2'') Die Cast Terminal Head Class A Accuracy 50mm Support Tube 0.35mm Internal wire diameter Low Long Term Drift Rated for -50 to 1400 Deg C Max Terminal Head Connection 300(50) or 450(50) Long x 16(21)mm Sheath Ceramic Sheath with Recrystallaised Allumina Flange Fitting included for mounting Specification Fastron Part Number FTCR Series Sensor Type Type R Thermocouple No of Wires 2 Probe Length 300mm or 450mm (Includes 50mm Support Tube) Sheath Thickness 16(21)mm Sheath Material Ceramic & Recrystallasied Allumina Accuracy Class A Approvals CE, ANSI, ROHS Cable Length Terminal Head Terminal Head Type Die Cast Alloy Terminal Head, , KNE(wire entry:M20x1.5, probe entry: G1/2'') Temperature Range -50 to 1400 Deg C Special Feature Ceramic Mounting Style Flange Fitting Included Weight 850g Factory Pack Qty 1 Datasheet Datasheet Flange Datasheet

Read more less

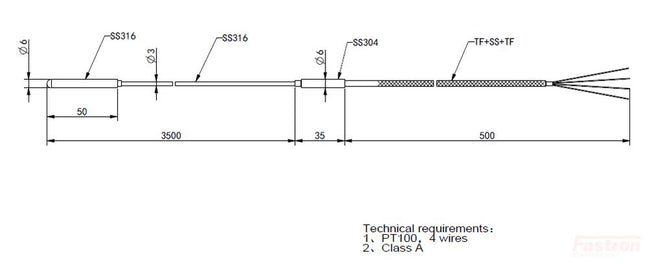

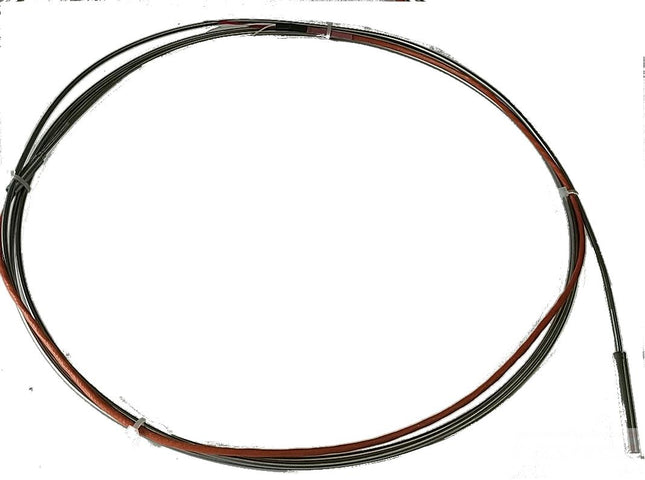

Fastron FRTD-6-3-750-2500 (ST6352) Resistance Temperature Detectors (RTD's) 500 Deg C, 6mm x 3500mm, 6mm x 50mm SS Tip, SS POT Seal potted with high temp epoxy resin, 100 Ohms @ 0 Deg C, Class A, 750mm screened PFA insulated cable Class A Accuracy Teflon Screened Cable Low Long Term Drift Rated for -50 to 350 Deg C Max Spring Cable Connection 3500 x 3mm (6 x 50mm Tip) MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-3-3500-750 (ST6352) Sensor Type RTD - Resistance Temperature Detectors No of Wires 4 Shaft Length 3500mm Shaft Thickness 3mm (6mm Tip) Accuracy Class A Cable length 750mm Cable Type Teflon/Screened/Teflon Temperature Range -50 to 500 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 1500g Factory Pack Qty 1 Datasheet ST6352

Read more less

Fastron FRTD-6-3-750-2500 Resistance Temperature Detectors (RTD's) Class A Accuracy Teflon Screened Cable Low Long Term Drift Rated for -50 to 350 Deg C Max Spring Cable Connection 2500 x 3mm (6 x 50mm Tip) MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-3-2500-75 Sensor Type RTD - Resistance Temperature Detectors No of Wires 4 Shaft Length 2500mm Shaft Thickness 3mm (6mm Tip) Accuracy Class A Cable length 750mm Cable Type Teflon/Screened/Teflon Temperature Range -50 to 350 Deg C Special Feature 6 x 50mm Tip Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 800g Factory Pack Qty 1 Datasheet ST6613 Rev 3

Read more less

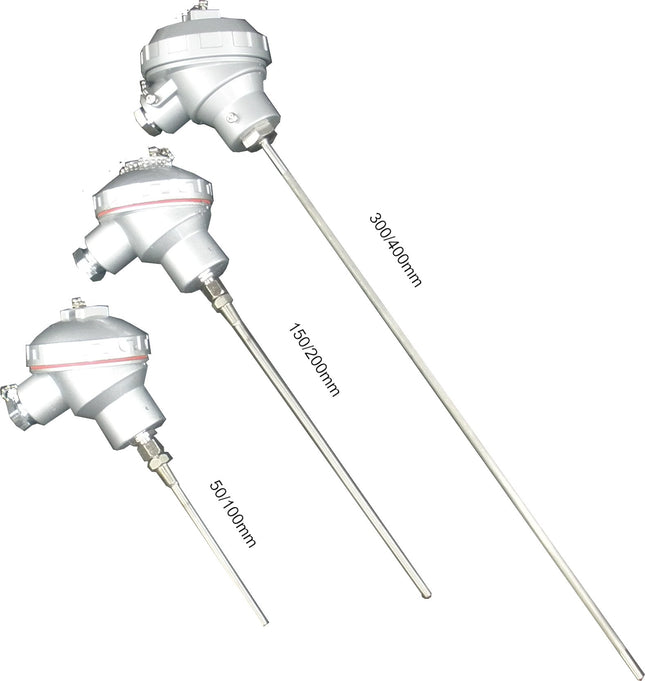

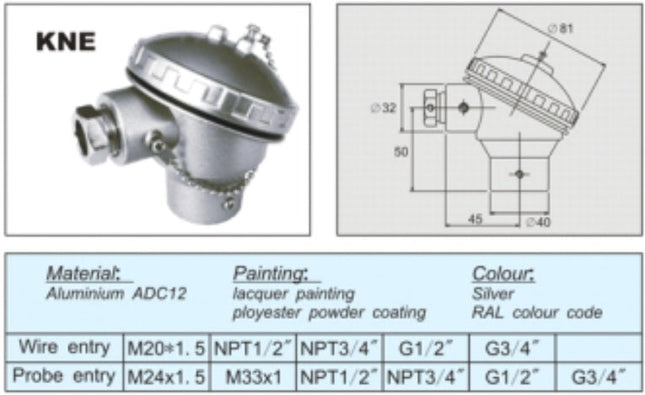

Fastron FTCK-6-500-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 500mm Probe Length, 6mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-6-500-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 500mm Sheath Thickness 6mm  Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20  x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Fastron FTCK-6-300-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 300mm Probe Length, 6mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-6-300-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 300mm Sheath Thickness 6mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20  x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet

Read more less
