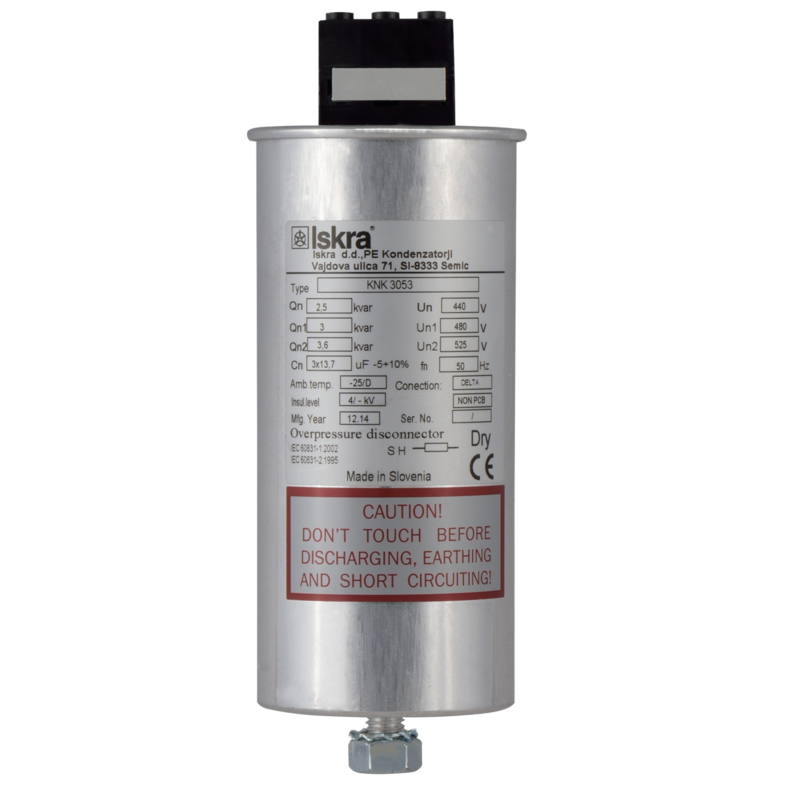

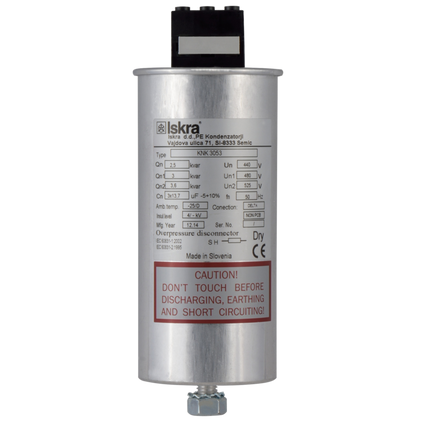

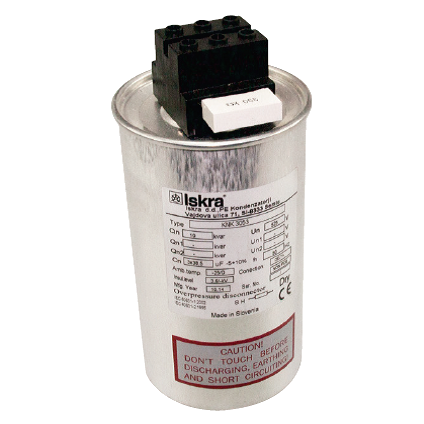

KNK3053 7.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type
Rated 3.5/5 based on 11 customer reviews
KNK3053 7.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type

KNK3053 7.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type

Heavy Item - No Free Shipping

Available: 50pcs in stock , more available in 12-16 weeks
$86.84
$95.52inclGST

Heavy Item - No Free Shipping

Compare
This product: KNK3053 7.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type
$86.84 8684 95.524inclGST
KC12-11-230-50 Capacitor Duty Contactor 240/480/600VAC @ 6, 12, 15 kVar, 200,000 Operations
$49.14 4914 54.054inclGST
PFCmax 6, Power Factor Control Relay, 6 Step, 90-550V 50/60HZ
$362.78 36278 399.058inclGST
$498.76 548.636inclGST

Iskra Doo KNK3053 7.5 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type

Characteristics and utility

  • 7.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar
  • Three phase capacitor DUAL WINDING internally delta connected
  • Discharge resistors Incorporated
  • Reactive power factor correction
  • Dry type

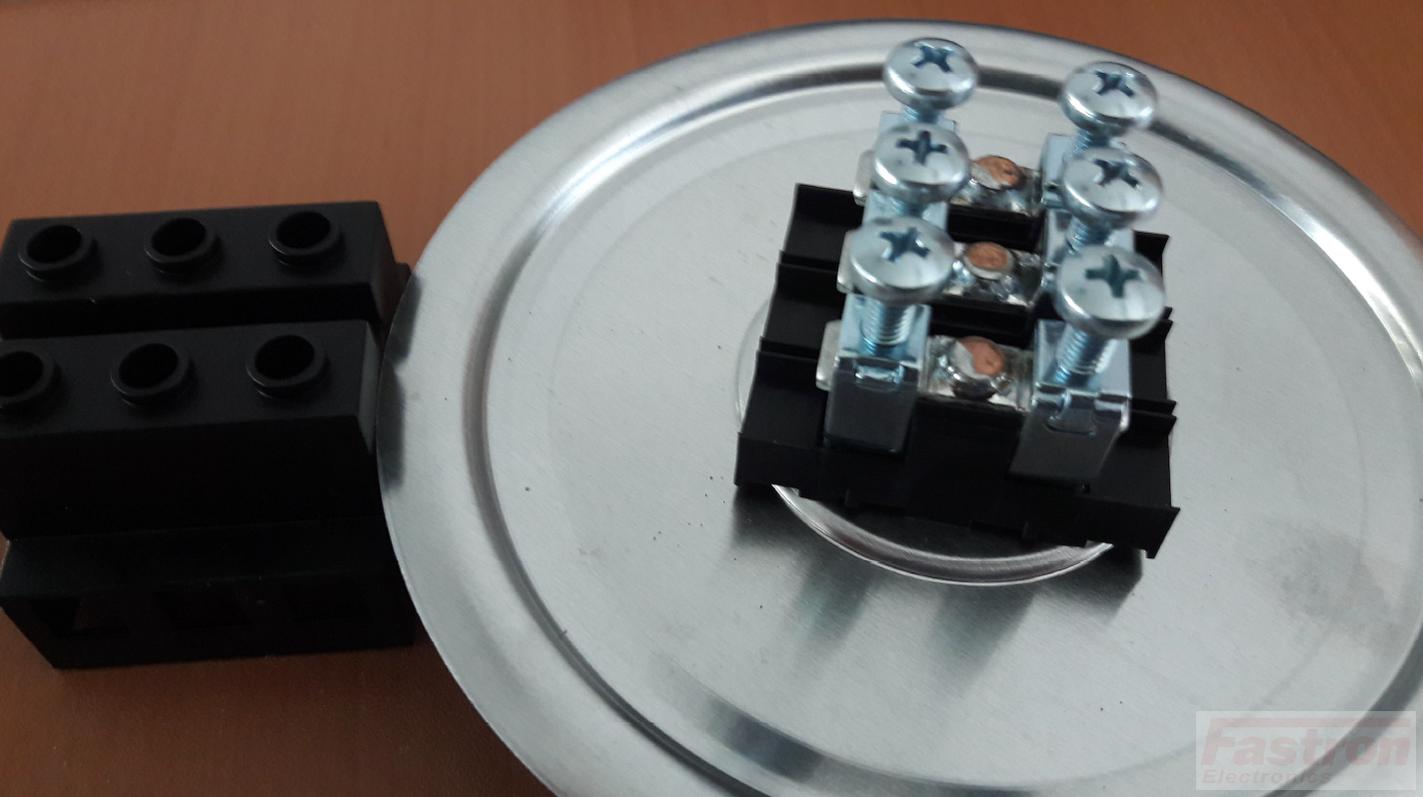

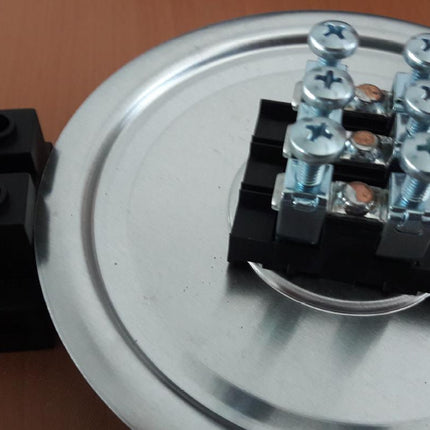

  • Connector type - single sided terminal
  • Indoor mounting

Triple safety

  • Overpressure disconnection system
  • Protection by internal fuses
  • Self Healing

Construction and materials

  • Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
  • UL 94 V0 Resin
  • Aluminium case with bottom fixing M12x16

Standards

  • IEC 60831-1/2
  • EN 60831-1/2

Iskra Doo KNK3053 7.5 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type

Characteristics and utility

  • 7.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar
  • Three phase capacitor DUAL WINDING internally delta connected
  • Discharge resistors Incorporated
  • Reactive power factor correction
  • Dry type
  • Connector type - single sided terminal
  • Indoor mounting

Triple safety

  • Overpressure disconnection system
  • Protection by internal fuses
  • Self Healing

Construction and materials

  • Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ
  • UL 94 V0 Resin
  • Aluminium case with bottom fixing M12x16

Standards

  • IEC 60831-1/2
  • EN 60831-1/2
Iskra Part Number KNK3053 7.5 KVAR 525V 50HZ
Technology Dry Type, Low Loss, Self Healing

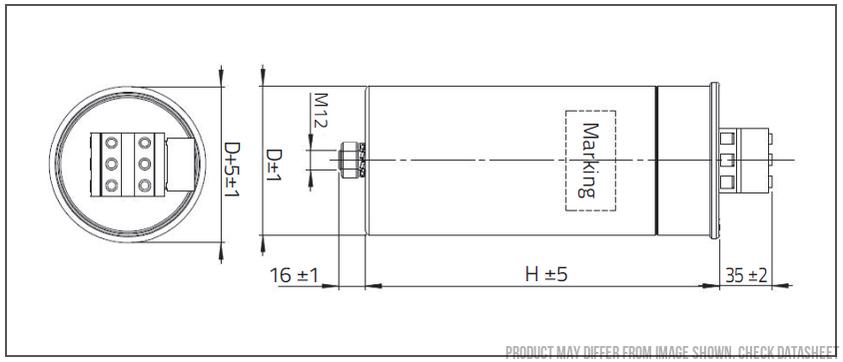

Dimensions 75 x 210mm
Standards IEC 60831-1/2, EN 60831-1/2
Voltage 525V @ 50Hz
Kvar 7.5 Kvar
Capacitance 3 x 28.9uF
Tolerance On Capacitance -5% + 10% (others on request)
Current (In) 8.2 Amp
Overpressure Disconnection System YES
Self Extinguishing Resin YES
Internal Fuses YES
Self Healing YES
Mounting M12 x 16mm (Indoor)
Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs)
Lifetime 120,000 Hours
Termination Style Filter Type Terminal
Unit Weight 1.1kg
Factory Pack Quantity 25
