Solid Core AC Current Transformers with 62mm - 86mm Aperture or up to 101 x 31mm Busbar
-
Rish Xmer 140-100H (45) 3000/5 Class 0.5, 60VA, ⌀ 86mm or 101 x 31mm Busbar
Rishabh Rish Xmer 140-100H (45) 3000/5 Class 0.5 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 140-100H (45) 3000/5 Class 0.5 Technology AC Current Transformer Ratio 3000/5 Aperture Size ⌀ 86mm or 101 x 31mm Busbar VA Rating 60VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 3000Amp x 1.2 Termination Style Screw Unit Weight 1.2kg Factory Pack Qty 9 Datasheet Product Datasheet
$119.70
$141.25 inclGST -

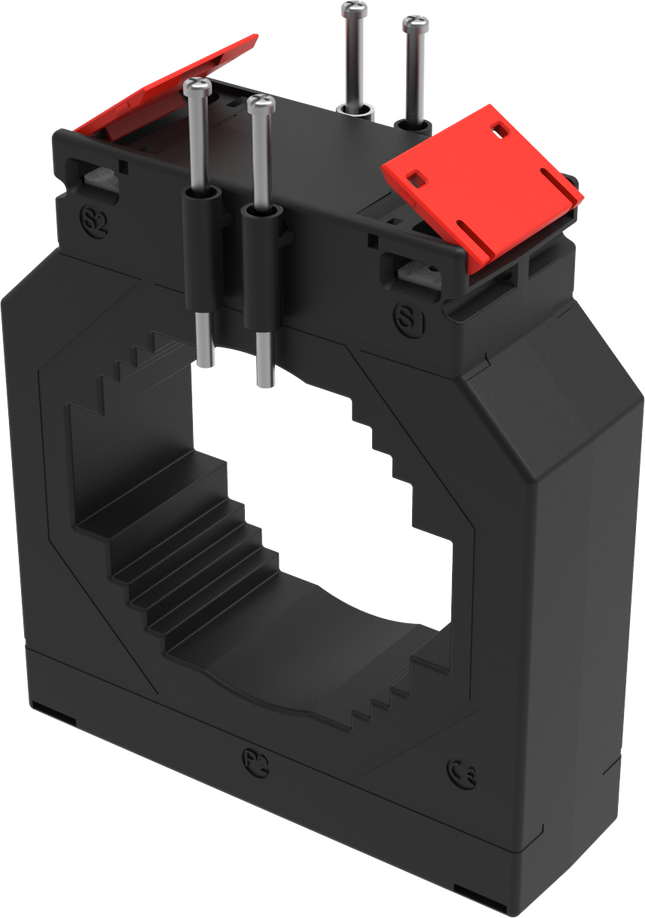

Rish Xmer 140-100H (45) 4000/5 Class 0.5, 60VA, ⌀ 86mm or 101 x 31mm Busbar
Rishabh Rish Xmer 140-100H (45) 4000/5 Class 0.5, 60VA, ⌀ 86mm or 101 x 31mm Busbar Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 140-100H (45) 4000/5 Class 0.5, 60VA Technology AC Current Transformer Ratio 4000/5 Aperture Size ⌀ 86mm or 101 x 31mm Busbar VA Rating 60VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 4000Amp x 1.2 Termination Style Screw Unit Weight 1.2kg Factory Pack Qty 9 Datasheet Product Datasheet
$119.70
$141.25 inclGST -
Rish Xmer 140-100H (45) 2500/5 Class 0.5, 45VA, ⌀ 86mm or 101 x 31mm Busbar
Rishabh Rish Xmer 140-100H (45) 2500/5 Class 0.5 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 140-100H (45) 2500/5 Class 0.5 Technology AC Current Transformer Ratio 2500/5 Aperture Size ⌀ 86mm or 101 x 31mm Busbar VA Rating 45VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 2500Amp x 1.2 Termination Style Screw Unit Weight 1.2kg Factory Pack Qty 9 Datasheet Product Datasheet
$124.70
$147.15 inclGST -
Rish Xmer 104-80 (45) 1500/5 Class 0.5, 20VA, ⌀ 65mm or 85 x 12mm Busbar
Rishabh Rish Xmer 104-80 (45) 1500/5 Class 0.5 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 104-80 (45) 1500/5 Class 0.5 Technology AC Current Transformer Ratio 1500/5 Aperture Size ⌀ 65mm or 85 x 12mm Busbar VA Rating 20VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Unit Weight 0.9kg Factory Pack Qty 9 Datasheet Product Datasheet
$96.00
$113.28 inclGST -
Rish Xmer 140-100H (45) 2500/5 Class 1, 45VA, ⌀ 86mm or 101 x 31mm Busbar
Rishabh Rish Xmer 140-100H (45) 2500/5 Class 1 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 140-100H (45) 2500/5 Class 1 Technology AC Current Transformer Ratio 2500/5 Aperture Size ⌀ 86mm or 101 x 31mm Busbar VA Rating 45VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 2500Amp x 1.2 Termination Style Screw Unit Weight 1.2kg Factory Pack Qty 9 Datasheet Product Datasheet
$119.70
$141.25 inclGST -

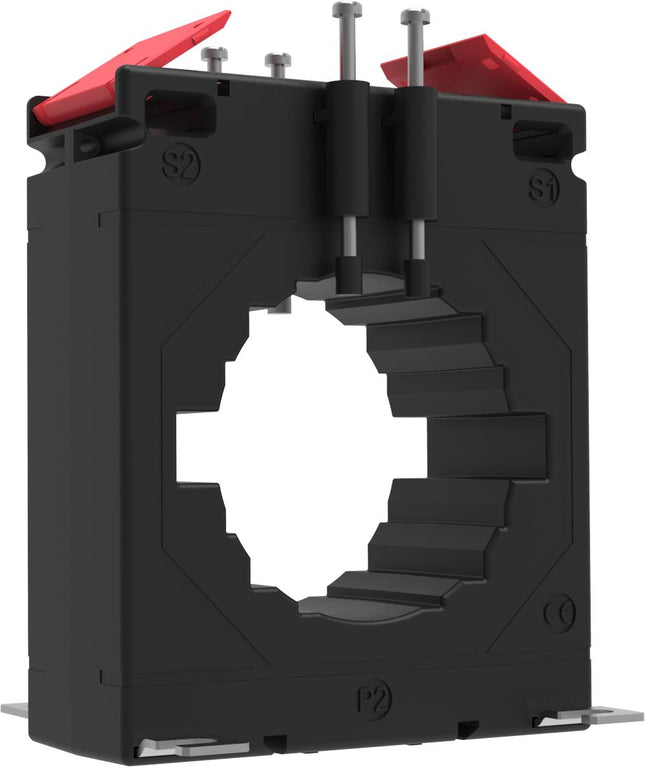

Rish Xmer 104-80 (45) 1500/5 Class 1, 30VA, ⌀ 65mm or 85 x 12mm Busbar
Rishabh Rish Xmer 104-80 (45) 1500/5 Class 1 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 104-80 (45) 1500/5 Class 1 Technology AC Current Transformer Ratio 1500/5 Aperture Size ⌀ 65mm or 85 x 12mm Busbar VA Rating 30VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Unit Weight 0.9kg Factory Pack Qty 9 Datasheet Product Datasheet
$91.00
$107.38 inclGST -

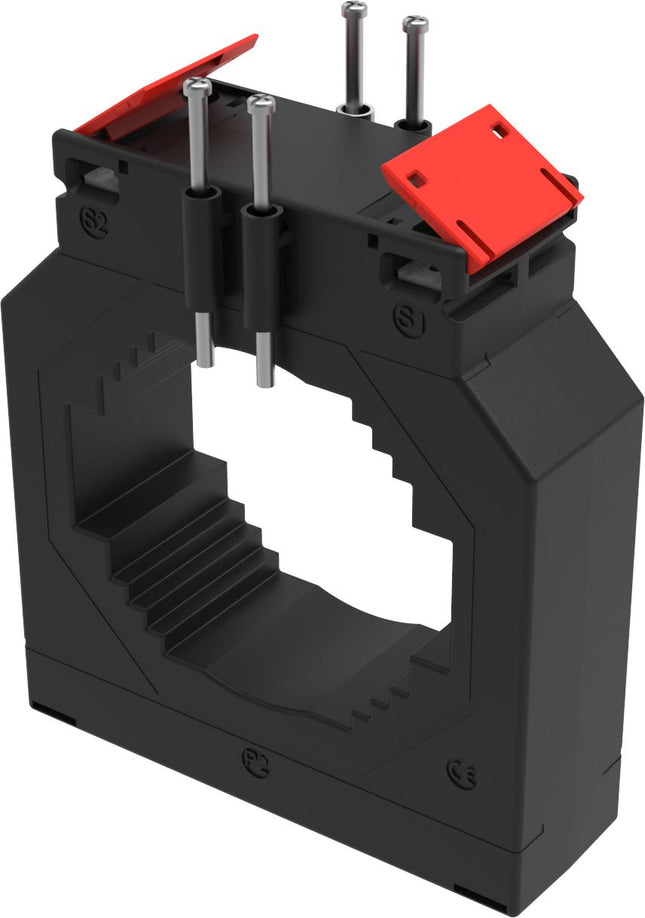

Rish Xmer 140-100H (45) 2000/5 Class 1, 45VA, ⌀ 65mm or 85 x 12mm Busbar
Rishabh Rish Xmer 140-100H (45) 2000/5 Class 1 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 140-100H (45) 2000/5 Class 1 Technology AC Current Transformer Ratio 2000/5 Aperture Size ⌀ 65mm or 85 x 12mm Busbar VA Rating 45VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 2000Amp x 1.2 Termination Style Screw Unit Weight 1.2kg Factory Pack Qty 9 Datasheet Product Datasheet
$114.50
$135.11 inclGST
