3 Phase Power Factor Correction Capacitors
-
265.266-511100 / 221K02 24.1Kvar 480V 50Hz, 24.1kvar 480V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 111uF, Internal Discharge Resistors Included
Electronicon 265.266-511100 / 221K02 24.1Kvar 480V 50Hz, 24.1kvar 480V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 111uF, Internal Discharge Resistors Included Characteristics and utility 241kVar @ 480V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 265.266-511100 / 221K02 24.1Kvar 480V 50Hz Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 480V @ 50Hz Kvar 20 Kvar Capacitance 3 x 111uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 52 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.5kg Factory Pack Quantity 30  Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog
$229.00
$270.22 inclGST -
E65.R28-193M30, Power Factor Correction Capacitor 40kVAR 525V 400Hz 3x19.25uF 740VAC, 116x280mm, design M3, gas-filled
E65.R28-193M30, Power Factor Correction Capacitor 40kVAR 525V 400Hz 3x19.25uF 740VAC, 116x280mm, design M3, gas-filled Characteristics and utility 3x19.25uF 740VAC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Railway and Marine Certified Applications Heavy Duty AC FIlters Power Generators Marine Vessels M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E65.R28-193M30 Technology Metalized Polypropylene Film Capacitor Dimensions ø116 x 280mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 740VAC Operating Temperature Range -40 to 85 °C Capacitance 3x19.25uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M10 x 12 studs Unit Weight 4.3kg Factory Pack Quantity 21 (MOQ = 105)
$438.00
$516.84 inclGST -

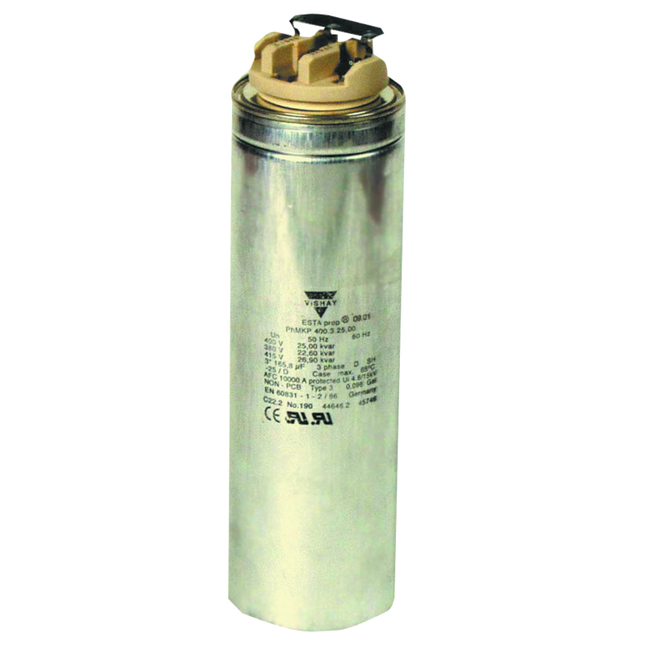

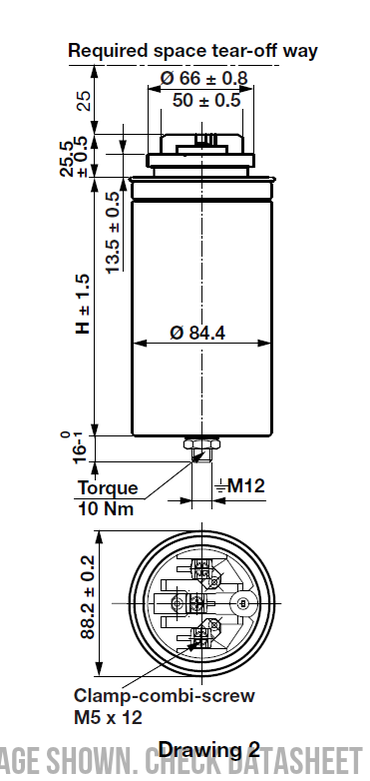

Phmkp 660.3.22,9, Power Factor Correction Capacitor, 3 Phase, 22.9KVAR @ 660VAC, 85 x 340mm IP00 Dry Type (Gas Filled), 660VAC, 3 x 55.8uF
Vishay Phmkp 660.3.22,9, Power Factor Correction Capacitor, 3 Phase, 22.9KVAR @ 660VAC, 85 x 340mm IP00 Dry Type (Gas Filled), 660VAC, 3 x 55.8uF Characteristics and utility 22.9kVar @ 660V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Vishay Part Number Phmkp 660.3.22,9 Technology Gas Filled, Low Loss, Self Healing Dimensions 85 x 340mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 600V @ 50Hz Kvar 25 Kvar Capacitance 3 x 55.8uF (12.5KVAR @ 415VAC) Tolerance On Capacitance -5% + 10% (others on request) Current (In) 37.1 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Ceramic Unit Weight 1.9kg Factory Pack Quantity 25  Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog
$489.00
$577.02 inclGST
