Power Controllers

Trent FYRP240I80P, Phase Angle Controller, 4-20mA Control, 110-240VAC 80Amp Load, SCR Output Features 470kOhm - 1 MOhm POT Phase Control Input Ratings from 40A to 80 Amp @ 110-480 VAC SCR output for heavy industrial loads Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec TRENT Part Number FYRP240I80P Switching Type Phase Angle (Random Crossing) ROHS/CE Compliant Control Input 4-20mA Load Current 80 Amp (rms) Surge Capability 900 Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 110-280VAC Max Non Repetitive Peak Voltage 850 Vp Termination Style Screw Unit Weight 160g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Relequick RS1API420MA280080R  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Trent FYRP240H80P, Phase Angle Controller, 0-10V Control, 110-240VAC 80Amp Load, SCR Output Features 470kOhm - 1 MOhm POT Phase Control Input Ratings from 40A to 80 Amp @ 110-480 VAC SCR output for heavy industrial loads Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec TRENT Part Number FYRP240H80P Switching Type Phase Angle (Random Crossing) ROHS/CE Compliant Control Input 0-10V Load Current 80 Amp (rms) Surge Capability 900 Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 110-280VAC Max Non Repetitive Peak Voltage 850 Vp Termination Style Screw Unit Weight 160g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Relequick RS1API420MA280080R  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Trent FWR480H40-L, Phase Angle Controller, for 500K - 1M External POT input control, 110-480VAC 40Amp Load, SCR Output Features 470kOhm - 1 MOhm POT Phase Control Input Ratings from 40A to 80 Amp @ 110-480 VAC SCR output for heavy industrial loads Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec TRENT Part Number FWR480H40-L Switching Type Phase Angle (Random Crossing) ROHS/CE Compliant Control Input 470K-1M Ohm POT Load Current 40 Amp (rms) Surge Capability 625 Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 110-480VAC Max Non Repetitive Peak Voltage 850 Vp Termination Style Screw Unit Weight 160g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Relequick RS1API420MA280060R RS1API420MA280080R or Crydom MCPC2450 MCPC2490 or Contact Us for Possible Replacement   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

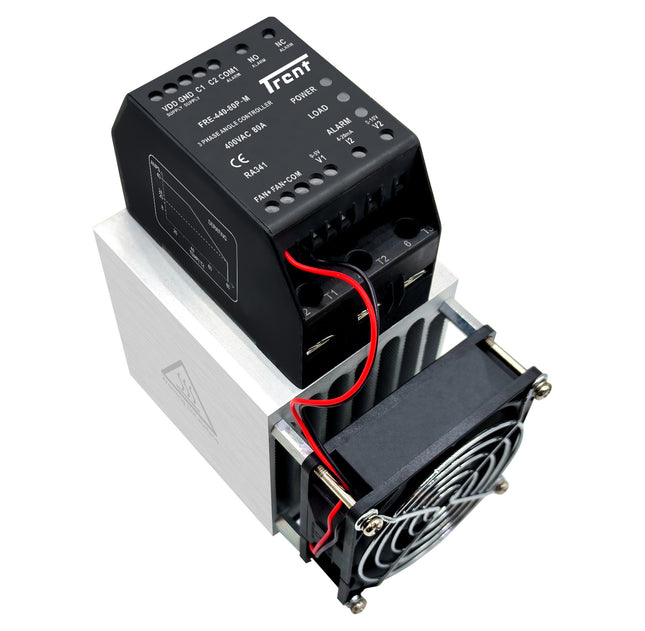

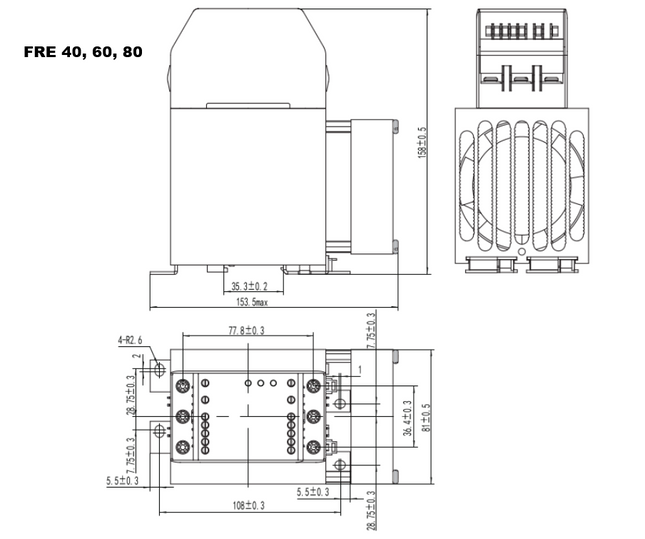

Fastron FRE-440-80C-M, SCR Phase Angle Controller, 400VAC 3 Wire 3 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 65 Amps per Phase @ 40 Deg C Features Phase Angle Control Function 3 Phase, Phase Angle Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-80P-M Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Mode Burst Fire Control Voltage 0-10V/0-5V/4-20mA default Load Current 65 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO, 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm, Fan Cooled (Fan included) Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs Datasheet User Manual

Read more less

Fastron FRE-440-80C-M, SCR Burst Controller, 400VAC 3 Wire 3 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 65 Amps per Phase @ 40 Deg C, Fan Cooled Features Burst Control Function 3 Phase, or Single Phase, Burst Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-80C-M Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Mode Burst Fire Control Control Voltage 0-10V/0-5V/4-20mA Load Current 65 Amps Per Phase @ 40 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO , 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm, Fan Cooled (Includes mounted fan) Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

Fastron FRE-440-80C-M-2L, SCR Burst Controller, 400VAC 3 Wire 2 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 80 Amps per Phase @ 40 Deg C, Fan Cooled Features Burst Control Function 3 Phase, or Single Phase, Burst Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-80C-M-2L Rated Operating Temperature 50°C SCR Configuration 2 Phase AC Switch (for 3 Phase 2 Leg control) Control Mode Burst Fire Control Control Voltage 0-10V/0-5V/4-20mA Load Current 80 Amps Per Phase @ 40 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO , 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm, Fan cooled (Includes mounted Fan) Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs Datasheet User Manual

Read more less

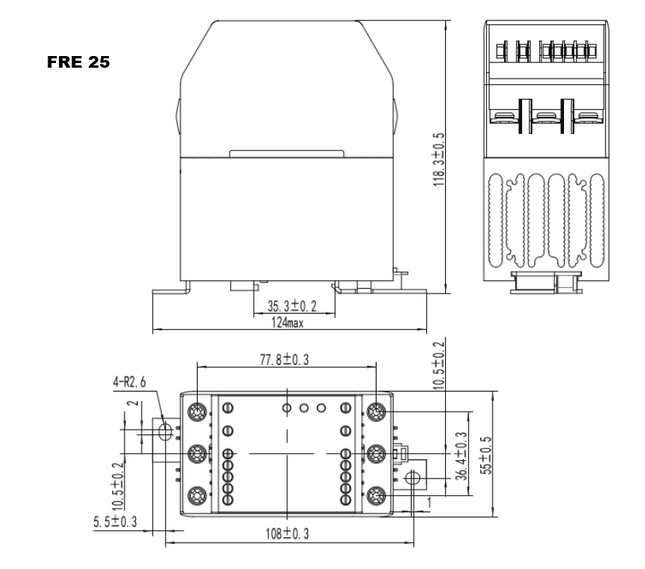

Fastron FRE-440-25C-M-2L, SCR Burst Controller, 400VAC 3 Wire 2 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 23 Amps per Phase @ 40 Deg C Features Burst Control Function 3 Phase, or Single Phase, Burst Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-25C-M-2L Rated Operating Temperature 50°C SCR Configuration 2 Phase AC Switch (for 3 Phase 2 Leg control) Control Mode Phase Angle Control Voltage 0-10V/0-5V/4-20mA Load Current 23 Amps Per Phase @ 40 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO , 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs Datasheet User Manual

Read more less

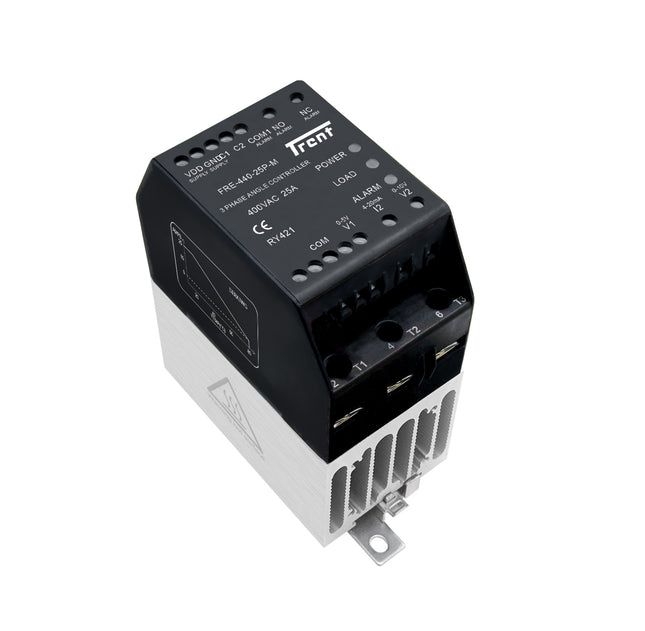

Fastron FRE-440-25P-M, SCR Phase Angle Controller, 400VAC 3 Wire 3 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 17 Amps per Phase @ 40 Deg C Features Phase Angle Control Function 3 Phase, Phase Angle Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-25P-M Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Mode Burst Fire Control Voltage 0-10V/0-5V/4-20mA default Load Current 17 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO, 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs Datasheet User Manual

Read more less

Fastron FRE-440-25C-M, SCR Burst Controller, 400VAC 3 Wire 3 Leg (400V L-L, 230V L-N), 3 Phase, 4-20/0-5V/0-10V Input, 17 Amps per Phase @ 40 Deg C Features Burst Control Function 3 Phase, or Single Phase, Burst Controller 0-10V/0-5V/4-20mA Input Proportional Control Fully enclosed IP20 Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FRE-440-25C-M Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Mode Phase Angle Control Voltage 0-10V/0-5V/4-20mA Load Current 17 Amps Per Phase @ 40 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO , 1 x NC Relay Contacts Comms NA Special Feature Load Monitoring, Overtemperature Alarm, Load Break Alarm Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start NA Soft Start NA Termination Style Screw Unit Weight 1kg (2kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

TPR-3SL070H-C, SCR Phase/Burst Controller,  400VAC 3 Wire (400V L-L, 230V L-N), 3 Phase, 1-5V/4-20/0-20mA/POT Input, with In built Fuses, with RS485 Modbus RTU Comms, 56 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/1-5V/10K POT Input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium/Plastic Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number TPR-3SL070H-C Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA (Default), 1-5V, 10K POT) Load Current 56 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 2 x NO Relay Contact Comms Includes RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 100-240VAC +/-10% Delay on Start NA Soft Start Programmable from 0 to 60 seconds Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual

Read more less

TPR-3SL160H, SCR Phase/Burst Controller, 400VAC 3 Wire (400V L-L, 230V L-N), 3 Phase, 1-5V/4-20/0-20mA/POT Input, with In built Fuses, 128 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/1-5V/10K POT Input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium/Plastic Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number TPR-3SL160H Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA (Default), 1-5V, 10K POT) Load Current 128 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 2 x NO Relay Contact Comms Optional RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 100-240VAC +/-10% Delay on Start NA Soft Start Programmable from 0 to 60 seconds Termination Style Screw Unit Weight 11kg Factory Pack Qty 1   Technical Docs User Manual

Read more less
