ODC-24A DC Output Module, 24VDC input, 5-150VDC line voltage Product Datasheet If not in stock, MOQ = 25pcs. Delivery in 5-7 weeks.

Read more less

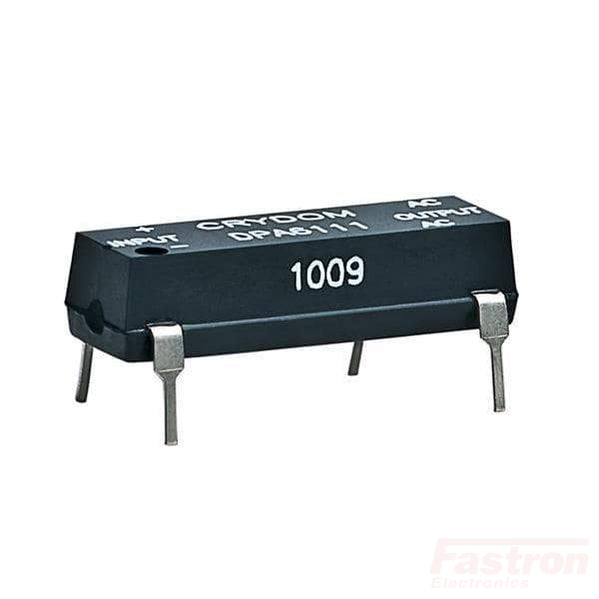

Crydom DPA6119, Solid State Relay, PCB Mount, 3.5-10VDC control input, 1A 20-280VAC Load, PCB Mount Features Ratings up to 1 Amp @ 24-280 VAC SCR output for heavy industrial loads Zero voltage turn-on UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers DC control types EMC compliant to Level 3 Internal snubber network Spec Crydom Part Number DPA6119 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 3.5-10VDC Load Current 1 Amp (rms) Surge Capability (1s) 28 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 3-60VDC EMC Compliant Level 3 Termination Style PCB Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

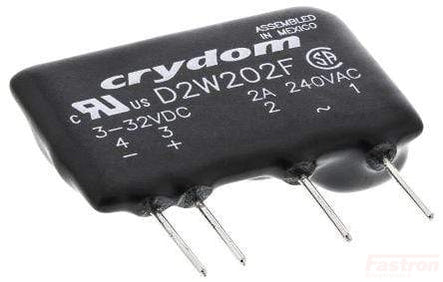

Crydom D2W202F, Solid State Relay, PCB Mount, 3-32VDC Control, 2 Amp, 24-280VAC Load Features Ratings up to 3.5 Amp @ 24-280 VAC SCR output for heavy industrial loads Zero voltage turn-on UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers DC control types EMC compliant to Level 3 Internal snubber network Spec Crydom Part Number D2W202F Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 3-32VDC Load Current 2 Amp (rms) Surge Capability (1s) 28 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style PCB Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

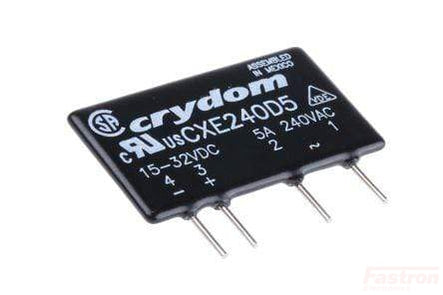

Crydom CXE240D5, Solid State Relay, PCB or Socket Mount, 15-32VDC Control, 5 Amp, 12-280VAC Load Features Ratings up to 5 Amp @ 280VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CXE240D5 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 15-32VDC Load Current 5 Amp (rms) Surge Capability 250 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 12-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here DIN Rail Holder Din Rail Holder App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

C4ODC, DC Output Module, 3-32VDC input, 5-48VDC line voltage, Model C4 Product Datasheet If not in stock, MOQ = 25pcs. Delivery in 5-7 weeks.

Read more less

Keysolu KS32/60-24Z2, Slimline Relay, 60VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 24VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Keysolu Part Number KS32/60-24Z2 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 60VDC (For use with F41F-1Z-C2-4 Base for 230VAC Coil input) Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-4) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay Datasheet F41F-1Z-C2-4

Read more less

Keysolu KS32/24-48D3N & F41F-1Z-C2-1, Slim Solid State Relay & Socket with Screw Terminals 24VDC Input, 4 Amp @ 48VDC Features Multirange input 12-24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Ultra slim package UL Listed (Keysolu make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32/24-48D3N & F41F-1Z-C2-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 3 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Relay Base Datasheet Relay Datasheet

Read more less

Keysolu KS32/24-48D3N & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 4 Amp @ 48VDC Features Multirange input 12-24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32/24-48D3N & F41F-1Z-C4-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 3 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Relay Base Datasheet Relay Datasheet

Read more less

Keysolu KS32/24-48D3N, Slimline Relay, 24VDC Coil, 48VDC 3 Amp Load Features Output 3.5Amp @ 24VDC 15-30VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number KS32/24-48D3N Switching Type 48VDC 3 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 24VDC Load Current 3 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 48VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket

Read more less

Keysolu KS32 24-24Z2 & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 2 Amp @ 240VAC Features Multirange input 12-24VAC/DC Nominal Load Rating 2 Amp @ 240VAC DIN Rail Mount Ultra slim package UL Listed (Keysolu make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32 24-24Z2 & F41F-1Z-C4-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 2 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Relay Base Datasheet Relay Datasheet

Read more less
