PCB Mount Solid State Relays
-
KS32 12-24Z2, Slimline Relay, 12VDC Coil, 2 Amp 24-280VAC Load
Keysolu KS32 12-24Z2, Slimline Relay, 12VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 12VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Keysolu Part Number KS32 12-24Z2 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 12VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$25.00
$29.50 inclGST -
KS32 24-24Z2, Slimline Relay, 24VDC Coil, 2 Amp 24-280VAC Load
Keysolu KS32 24-24Z2, Slimline Relay, 24VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 24VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Keysolu Part Number KS32 24-24Z2 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 24VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$21.00
$24.78 inclGST -
DRA-CN024D24, Slimline Relay & Socket, 15-30VDC Coil, 3.5 Amp 24VDC Load
Crydom DRA-CN024D24, Slimline Relay & Socket, 15-30VDC Coil, 3.5 Amp 24VDC Load Features Output 3.5 Amp @ 24VDC 15-30VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number DRA-CN024D24 Switching Type 24VDC 3.5 Amp SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 15-30VDC Load Current 3.5 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 24VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet
$58.38
$68.89 inclGST -
DRA-CN240A24, Slimline Relay & Socket, 15-30VDC Coil, 2 Amp 24-280VAC Load
Crydom DRA-CN240A24, Slimline Relay & Socket, 15-30VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 15-30VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number DRA-CN240A24 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 15-30VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet
$78.38
$92.49 inclGST -
CN024D60, Slimline Relay, 48-72VDC Coil, 24VDC 3.5 Amp Load
Free Aus Post Shipping for $300 SpendCrydom CN024D60, Slimline Relay, 15-48-72VDC Coil, 24VDC 3.5 Amp Load Features Output 3.5Amp @ 24VDC 48-72VDC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number CN024D60 Switching Type 24VDC 3.5 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 48-72VDC Load Current 3.5 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 24VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
-
CN024D24, Slimline Relay, 15-30VDC Coil, 24VDC 3.5 Amp Load
Crydom CN024D24, Slimline Relay, 15-30VDC Coil, 24VDC 3.5 Amp Load Features Output 3.5Amp @ 24VDC 15-30VDC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number CN024D24 Switching Type 24VDC 3.5 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 15-30VDC Load Current 3.5 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 24VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$25.41
$29.98 inclGST -
CN240A05, Slimline Relay, 3-12VDC Coil, 2 Amp 24-280VAC Load
Crydom CN240A05, Slimline Relay, 3-15VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 15-30VDC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number CN240A05 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 3-12VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$21.00
$24.78 inclGST -
CN240A24, Slimline Relay, 15-30VDC Coil, 2 Amp 24-280VAC Load
Crydom CN240A24, Slimline Relay, 15-30VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 15-30VDC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number CN240A24 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 15-30VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$28.25
$33.34 inclGST -

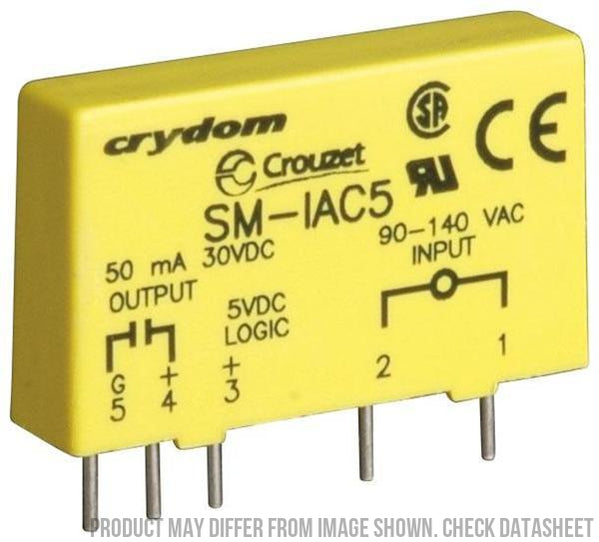

SM-IAC5A, AC Input Module, SM Series 90-140 VAC/DC, 5mA, 5VDC Supply
Crydom SM-IAC5A, AC Input Module, SM Series 90-140 VAC/DC, 5mA, 5VDC Supply Product Datasheet
$64.13
$75.67 inclGST -
DRS1, Din Rail Kit for PCB Mount SSR (Replaces MS11)
Din Rail Kit for SIP PCB Mount SSR (Replaces MS11) Datasheet Product Datasheet
$39.14
$46.19 inclGST -
IAC-24A Old Stock, AC Input Module, 90-140 VAC/DC, 5mA, 24VDC Supply old gen, BARGAIN BIN STOCK
Free Aus Post Shipping for $300 SpendIAC-24A AC Input Module, 90-140 VAC/DC, 5mA, 24VDC Supply old gen, BARGAIN BIN STOCK Product Datasheet If not in stock, MOQ = 25pcs, Delivery in 5-7 weeks.
-
SDV2415, Solid State Relay PCB Mount, 3.5-10VDC control input, 1A 20-280VAC Load, PCB Mount
Free Aus Post Shipping for $300 SpendCrydom SDV2415 Series 240VDC Solid State Relays Ratings up to 1 Amp @ 24-280 VAC SCR output for heavy industrial loads Zero voltage turn-on UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers DC control types EMC compliant to Level 3 Internal snubber network Spec Crydom Part Number SDV2415 Switching Type Zero Crossing ROHS Yes (Details) Control Current 10 - 35mA Load Current 1 Amp (rms) Surge Capability (1s) 28 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 3-60VDC EMC Compliant Level 3 Termination Style PCB Unit Weight 11g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement
