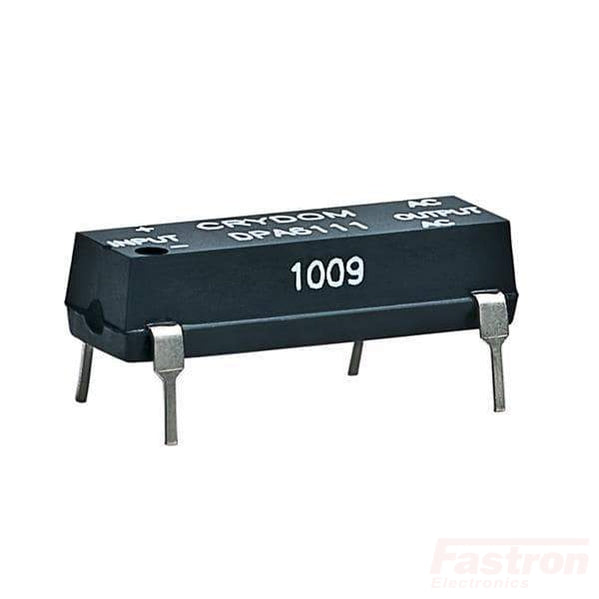

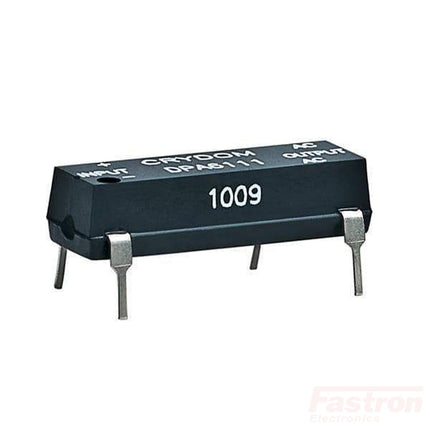

DPA6111, Solid State Relay, PCB Mount, 10-35mA control input, 1A 20-280VAC Load, PCB Mount

Crydom Part Number	DPA6119
Switching Type	Zero Crossing
ROHS	Yes (Details)
Control Current	10 - 35mA
Load Current	1 Amp (rms)
Surge Capability (1s)	28 Amp (peak)
Special Feature	None
Mounting Style	PCB Mount
Load Voltage Range	3-60VDC
EMC Compliant	Level 3
Termination Style	PCB
Unit Weight	11g
Factory Pack Qty	20



• Product Datasheet

Please note Changes from Gen 3 to Gen 4 (current) package design here
