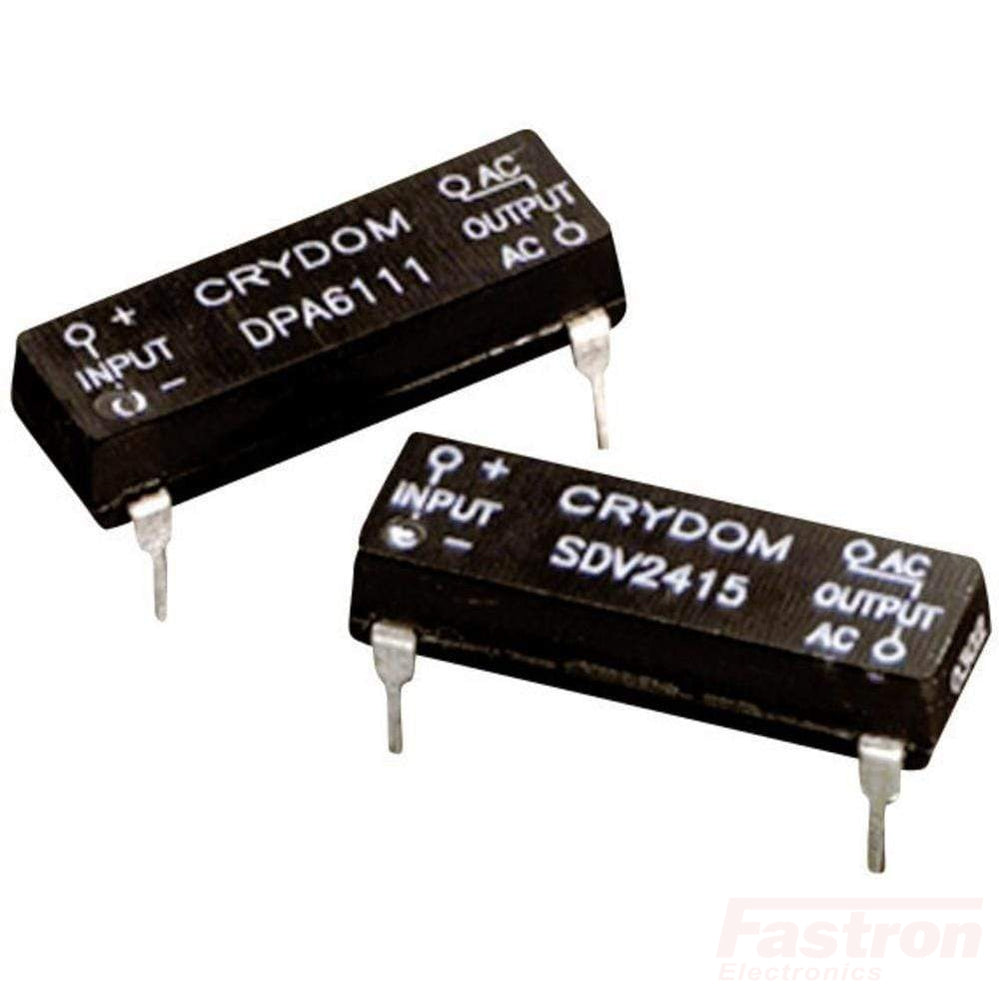

SDV2415, Solid State Relay PCB Mount, 3.5-10VDC control input, 1A 20-280VAC Load, PCB Mount

Crydom Part Number	SDV2415
Switching Type	Zero Crossing
ROHS	Yes (Details)
Control Current	10 - 35mA
Load Current	1 Amp (rms)
Surge Capability (1s)	28 Amp (peak)
Special Feature	None
Mounting Style	PCB Mount
Load Voltage Range	3-60VDC
EMC Compliant	Level 3
Termination Style	PCB
Unit Weight	11g
Factory Pack Qty	20



• Product Datasheet

Please note Changes from Gen 3 to Gen 4 (current) package design here

• Why Use SSR's?
• The inside story
• Selecting a SSR
• DC Output SSR's
• Selecting a Suitable Heatsink
• Use of Thermal Interface Material
• How to Verify the Proper Heatsink
• Effect of Forced Air Cooling
• Fuse Protection of SSR's
• Overvoltage Protection "P" Option MOV
• SSR Reliability Whitepaper
• 3 Phase Motors and Heating Applications
• 3 Phase Motor Reversing
• How to test a SSR
• SSR Precautions
• SSR Life Expectancy MTBF
• ROHS & Reach Statement
